BDS770FSL | BDS Suspension 2 Inch Lift Kit With Fox 2.0 Coil-Over For Chevrolet Silverado / GMC Sierra 1500 4WD (2019-2024)
2 Inch Lift Kit With Fox 2.0 Coil-Over For Chevrolet Silverado / GMC Sierra 1500 4WD (2019-2024)
Description
Level out your Chevy Silverado and GMC Sierra 1500 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

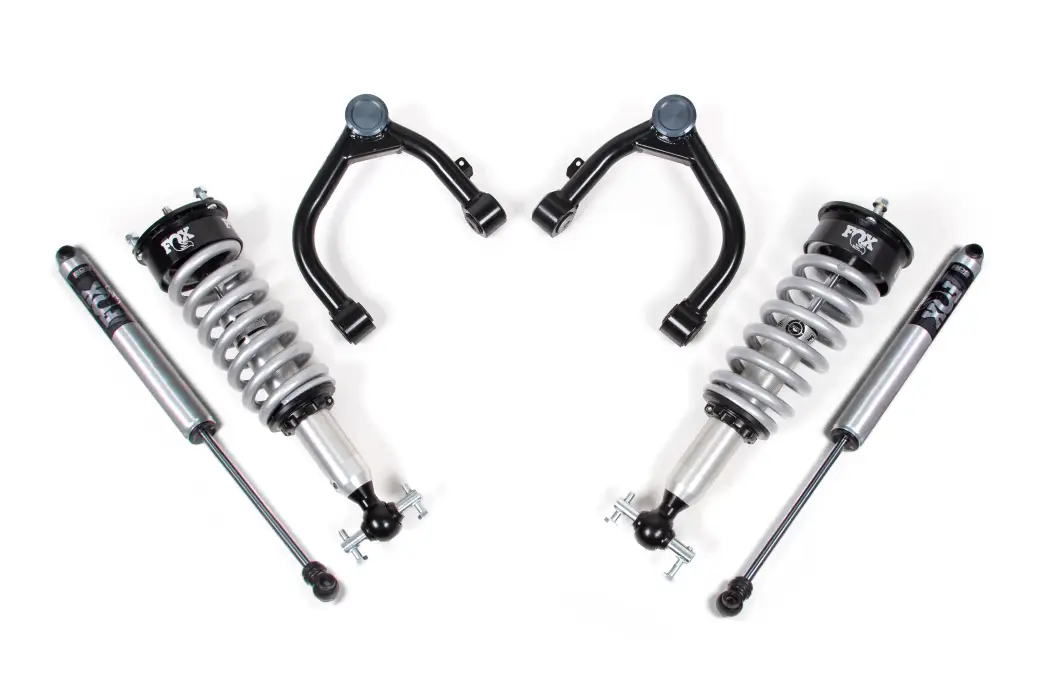

Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.
Features & Benefits
- FOX 2.5 Factory series coil-overs offer improved damper performance over stock
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series IFP rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100% Bolt on installation
Recommended Tires & Wheels
(Trimming may be required)
- 295 / 70 with 17 x 9 and 5.5 in. Backspace
- 295 / 65 with 18 x 9 and 5.5 in. Backspace
- 295 / 60 with 20 x 9 and 5.5 in. Backspace
FOX 2.0 Coil-Over Shocks
These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.
HD Upper Control Arms
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Important Notes
- Requires a maximum of 5.5" BS Wheel for tire clearance to the upper ball joint when used on 2-3.5" kits
- Can be used on Trail Boss / AT4 models, but will net 0" lift
- Will not fit models equipped with ARC
Installation
Est. Install Time :
3-4 hrsDifficulty Level :
ModerateSpecialty Tools Needed :
N/A
Specification
- Front Lift Method : Coil-Over
- Rear Lift Method : Stock
- Shocks Included : Yes
- Front Lift Height : 2"
- Rear Lift Height : 0"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2019 | Chevrolet | Silverado 1500 | Custom | 4WD | ALL | ALL | ALL |
2019 | Chevrolet | Silverado 1500 | High Country | 4WD | ALL | ALL | ALL |
2019 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2019 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2019 | Chevrolet | Silverado 1500 | RST | 4WD | ALL | ALL | ALL |
2019 | Chevrolet | Silverado 1500 | SSV | 4WD | ALL | ALL | ALL |
2019 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2019 | Chevrolet | Silverado 1500 | WT Cab Regular | 4WD | ALL | ALL | ALL |
2019 | Chevrolet | Silverado 1500 | WT Doble Cabina | 4WD | ALL | ALL | ALL |
2019 | GMC | Sierra 1500 | Base | 4WD | ALL | ALL | ALL |
2019 | GMC | Sierra 1500 | Elevation | 4WD | ALL | ALL | ALL |
2019 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2019 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2020 | Chevrolet | Silverado 1500 | Custom | 4WD | ALL | ALL | ALL |
2020 | Chevrolet | Silverado 1500 | High Country | 4WD | ALL | ALL | ALL |
2020 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2020 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2020 | Chevrolet | Silverado 1500 | RST | 4WD | ALL | ALL | ALL |
2020 | Chevrolet | Silverado 1500 | SSV | 4WD | ALL | ALL | ALL |
2020 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2020 | Chevrolet | Silverado 1500 | WT Cab Regular | 4WD | ALL | ALL | ALL |
2020 | Chevrolet | Silverado 1500 | WT Doble Cabina | 4WD | ALL | ALL | ALL |
2020 | GMC | Sierra 1500 | Base | 4WD | ALL | ALL | ALL |
2020 | GMC | Sierra 1500 | Elevation | 4WD | ALL | ALL | ALL |
2020 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2020 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2021 | Chevrolet | Silverado 1500 | Custom | 4WD | ALL | ALL | ALL |
2021 | Chevrolet | Silverado 1500 | High Country | 4WD | ALL | ALL | ALL |
2021 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2021 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2021 | Chevrolet | Silverado 1500 | RST | 4WD | ALL | ALL | ALL |
2021 | Chevrolet | Silverado 1500 | SSV | 4WD | ALL | ALL | ALL |
2021 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2021 | GMC | Sierra 1500 | Base | 4WD | ALL | ALL | ALL |
2021 | GMC | Sierra 1500 | Elevation | 4WD | ALL | ALL | ALL |
2021 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2021 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2022 | Chevrolet | Silverado 1500 | Custom | 4WD | ALL | ALL | ALL |
2022 | Chevrolet | Silverado 1500 | High Country | 4WD | ALL | ALL | ALL |
2022 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2022 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2022 | Chevrolet | Silverado 1500 | RST | 4WD | ALL | ALL | ALL |
2022 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2022 | GMC | Sierra 1500 | Elevation | 4WD | ALL | ALL | ALL |
2022 | GMC | Sierra 1500 | Pro | 4WD | ALL | ALL | ALL |
2022 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2022 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2023 | Chevrolet | Silverado 1500 | Base | 4WD | ALL | ALL | ALL |
2023 | Chevrolet | Silverado 1500 | Custom | 4WD | ALL | ALL | ALL |
2023 | Chevrolet | Silverado 1500 | High Country | 4WD | ALL | ALL | ALL |
2023 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2023 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2023 | Chevrolet | Silverado 1500 | PPV | 4WD | ALL | ALL | ALL |
2023 | Chevrolet | Silverado 1500 | RST | 4WD | ALL | ALL | ALL |
2023 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2023 | GMC | Sierra 1500 | Elevation | 4WD | ALL | ALL | ALL |
2023 | GMC | Sierra 1500 | Pro | 4WD | ALL | ALL | ALL |
2023 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2023 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
2024 | Chevrolet | Silverado 1500 | Custom | 4WD | ALL | ALL | ALL |
2024 | Chevrolet | Silverado 1500 | LT | 4WD | ALL | ALL | ALL |
2024 | Chevrolet | Silverado 1500 | LTZ | 4WD | ALL | ALL | ALL |
2024 | Chevrolet | Silverado 1500 | PPV | 4WD | ALL | ALL | ALL |
2024 | Chevrolet | Silverado 1500 | RST | 4WD | ALL | ALL | ALL |
2024 | Chevrolet | Silverado 1500 | WT | 4WD | ALL | ALL | ALL |
2024 | GMC | Sierra 1500 | Elevation | 4WD | ALL | ALL | ALL |
2024 | GMC | Sierra 1500 | Pro | 4WD | ALL | ALL | ALL |
2024 | GMC | Sierra 1500 | SLE | 4WD | ALL | ALL | ALL |
2024 | GMC | Sierra 1500 | SLT | 4WD | ALL | ALL | ALL |
Component List
2 FOX98502134 2019-2024 GM 1500 Front Coilover, PS, 2.0, IFP, NON-TB/NOT-AT4 0-2" Lift, TB/AT4 NO" Lift
2 FOX98224719 Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
Tires & Wheels
295 / 70 with 17 x 9 and 5.5 in. Backspace
295 / 65 with 18 x 9 and 5.5 in. Backspace
295 / 60 with 20 x 9 and 5.5 in. Backspace
Details
- BDS770FSL
- BDS770FSL
- 840416421149
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
