BDS900FDSC | BDS Suspension 4 Inch Lift Kit For Chevrolet Avalanche/Suburban 1500, Tahoe / GMC Yukon, Yukon XL 1500 4WD (2007-2014) | Coil Over Fox 2.5 With DSC Adjuster, Rear Lift 3 Inch Coil Spacer
4 Inch Lift Kit For Chevrolet Avalanche/Suburban 1500, Tahoe / GMC Yukon, Yukon XL 1500 4WD (2007-2014) | Coil Over Fox 2.5 With DSC Adjuster, Rear Lift 3 Inch Coil Spacer
Description
Upgrade the performance and capability of your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 with 4-inch coil-over suspension lift kit by BDS. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
Features & Benefits
- FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
- 32 x 11.5 with 17 x 8 and 4.5 in. Backspace
- 33 x 12.5 with 17 x 9 and 5 in. Backspace
- 33 x 12.5 with 20 x 9 and 5.75 in. Backspace
FOX 2.5 Coil-Overs
FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
DSC Adjustment
FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Coil-Over Option
FOX 2.5 Coil-Overs
- 2.5-inch smooth bore zinc plated seamless steel body
- Zinc-plated and double-clear coated for long lasting finish
- Black-anodized, CNC-machined 6061-T6 billet aluminum
- Application-specific, adjustable 3.0 Eibach® racing springs
- 7/8-inch hard chrome-plated steel shafts
- Application specific valving to maximize performance
FOX 2.5 Coil-Overs with DSC Adjuster
All the FOX Coil-Over Advantages Plus:
- Dual Speed Compression (DSC) Adjuster
- Increases both low and high-speed compression levels up to 25%
- Easy twist knobs for Low-Speed and High-Speed Compression adjustment
- Provides added control and comfort for on-road use
- More aggressive damping for use off-road
Rear Lift Option
These vehicles vary from level to 1-2" tail high from the factory. We offer a 2" rear kit as well as a 3" rear lift kit. Be sure to measure your vehicle and order the appropriate rear lift height to level your SUV.
2 Inch Lift Coil Spacer
- If your vehicle is 2" tail high from the factory then this is the appropriate selection to level your vehicle.
- This system includes 2" coil spacers.
3 Inch Lift Coil Spacer
- If your vehicle is closer to 1" tail high from the factory then this is the appropriate selection to level your vehicle.
- This kit includes 3" coil spacers and a track bar relocation system.
Important Notes
- Will not work with auto-ride equipped vehicles.
- Strut compressor required for installation.
- Minor premature engagement of the StabiliTrak system may occur during certain driving maneuvers.
- Minor frame bracket modification and welding are required.
- 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
- Add 121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.
Installation
Est. Install Time :
8 hrsDifficulty Level :
DifficultSpecialty Tools Needed :
Cut Off Wheel or Equiv., Reciprocating Saw, Welding Equipment
Specification
- Front Lift Method : Cross-Member
- Rear Lift Method : Spacer
- Shocks Included : Yes
- Front Lift Height : 4"
- Rear Lift Height : 3"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2007 | Chevrolet | Avalanche | ALL | 4WD | ALL | ALL | ALL |
2007 | Chevrolet | Suburban 1500 | LS | 4WD | ALL | ALL | ALL |
2007 | Chevrolet | Suburban 1500 | LT | 4WD | ALL | ALL | ALL |
2007 | Chevrolet | Suburban 1500 | LTZ | 4WD | ALL | ALL | ALL |
2007 | Chevrolet | Tahoe | LS | 4WD | ALL | ALL | ALL |
2007 | Chevrolet | Tahoe | LT | 4WD | ALL | ALL | ALL |
2007 | Chevrolet | Tahoe | LTZ | 4WD | ALL | ALL | ALL |
2007 | GMC | Yukon | SLE | 4WD | ALL | ALL | ALL |
2007 | GMC | Yukon | SLT | 4WD | ALL | ALL | ALL |
2007 | GMC | Yukon XL 1500 | SLE | 4WD | ALL | ALL | ALL |
2007 | GMC | Yukon XL 1500 | SLT | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Avalanche | ALL | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Suburban 1500 | LS | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Suburban 1500 | LT | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Suburban 1500 | LTZ | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Tahoe | Hybrid | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Tahoe | LS | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Tahoe | LT | 4WD | ALL | ALL | ALL |
2008 | Chevrolet | Tahoe | LTZ | 4WD | ALL | ALL | ALL |
2008 | GMC | Yukon | Hybrid | 4WD | ALL | ALL | ALL |
2008 | GMC | Yukon | SLE | 4WD | ALL | ALL | ALL |
2008 | GMC | Yukon | SLT | 4WD | ALL | ALL | ALL |
2008 | GMC | Yukon XL 1500 | SLE | 4WD | ALL | ALL | ALL |
2008 | GMC | Yukon XL 1500 | SLT | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Avalanche | ALL | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Suburban 1500 | LS | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Suburban 1500 | LT | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Suburban 1500 | LTZ | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Tahoe | Hybrid | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Tahoe | LS | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Tahoe | LT | 4WD | ALL | ALL | ALL |
2009 | Chevrolet | Tahoe | LTZ | 4WD | ALL | ALL | ALL |
2009 | GMC | Yukon | Hybrid | 4WD | ALL | ALL | ALL |
2009 | GMC | Yukon | SLE | 4WD | ALL | ALL | ALL |
2009 | GMC | Yukon | SLT | 4WD | ALL | ALL | ALL |
2009 | GMC | Yukon XL 1500 | SLE | 4WD | ALL | ALL | ALL |
2009 | GMC | Yukon XL 1500 | SLT | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Avalanche | ALL | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Suburban 1500 | ALL | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Tahoe | Hybrid | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Tahoe | LS | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Tahoe | LT | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Tahoe | LTZ | 4WD | ALL | ALL | ALL |
2010 | Chevrolet | Tahoe | Z71 | 4WD | ALL | ALL | ALL |
2010 | GMC | Yukon | Denali Hybrid | 4WD | ALL | ALL | ALL |
2010 | GMC | Yukon | Hybrid | 4WD | ALL | ALL | ALL |
2010 | GMC | Yukon | SLE | 4WD | ALL | ALL | ALL |
2010 | GMC | Yukon | SLT | 4WD | ALL | ALL | ALL |
2010 | GMC | Yukon XL 1500 | SLE | 4WD | ALL | ALL | ALL |
2010 | GMC | Yukon XL 1500 | SLT | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Avalanche | ALL | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Suburban 1500 | ALL | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Tahoe | Base | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Tahoe | Hybrid | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Tahoe | LS | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Tahoe | LT | 4WD | ALL | ALL | ALL |
2011 | Chevrolet | Tahoe | LTZ | 4WD | ALL | ALL | ALL |
2011 | GMC | Yukon | Denali Hybrid | 4WD | ALL | ALL | ALL |
2011 | GMC | Yukon | Hybrid | 4WD | ALL | ALL | ALL |
2011 | GMC | Yukon | SLE | 4WD | ALL | ALL | ALL |
2011 | GMC | Yukon | SLT | 4WD | ALL | ALL | ALL |
2011 | GMC | Yukon XL 1500 | SLE | 4WD | ALL | ALL | ALL |
2011 | GMC | Yukon XL 1500 | SLT | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Avalanche | LS | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Avalanche | LT | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Avalanche | LTZ | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Suburban 1500 | LS | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Suburban 1500 | LT | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Suburban 1500 | LTZ | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Tahoe | Hybrid | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Tahoe | LS | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Tahoe | LT | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Tahoe | LTZ | 4WD | ALL | ALL | ALL |
2012 | Chevrolet | Tahoe | SSV | 4WD | ALL | ALL | ALL |
2012 | GMC | Yukon | Denali Hybrid | 4WD | ALL | ALL | ALL |
2012 | GMC | Yukon | Hybrid | 4WD | ALL | ALL | ALL |
2012 | GMC | Yukon | SLE | 4WD | ALL | ALL | ALL |
2012 | GMC | Yukon | SLT | 4WD | ALL | ALL | ALL |
2012 | GMC | Yukon XL 1500 | SLE | 4WD | ALL | ALL | ALL |
2012 | GMC | Yukon XL 1500 | SLT | 4WD | ALL | ALL | ALL |
2013 | Chevrolet | Avalanche | ALL | ALL | ALL | ALL | ALL |
2013 | Chevrolet | Suburban 1500 | ALL | 4WD | GAS | ALL | ALL |
2013 | Chevrolet | Tahoe | Hybrid | 4WD | FULL HYBRID EV-FLEX (FHEV) | ALL | ALL |
2013 | Chevrolet | Tahoe | LS | 4WD | GAS | ALL | ALL |
2013 | Chevrolet | Tahoe | LT | 4WD | GAS | ALL | ALL |
2013 | Chevrolet | Tahoe | LTZ | 4WD | GAS | ALL | ALL |
2013 | Chevrolet | Tahoe | SSV | 4WD | GAS | ALL | ALL |
2013 | GMC | Yukon | Denali Hybrid | 4WD | FULL HYBRID EV-FLEX (FHEV) | ALL | ALL |
2013 | GMC | Yukon | Hybrid | 4WD | FULL HYBRID EV-FLEX (FHEV) | ALL | ALL |
2013 | GMC | Yukon | SLE | 4WD | ALL | ALL | ALL |
2013 | GMC | Yukon | SLT | 4WD | ALL | ALL | ALL |
2013 | GMC | Yukon XL 1500 | SLE | 4WD | ALL | ALL | ALL |
2013 | GMC | Yukon XL 1500 | SLT | 4WD | ALL | ALL | ALL |
2014 | Chevrolet | Suburban 1500 | ALL | 4WD | ALL | ALL | ALL |
2014 | Chevrolet | Tahoe | LS | 4WD | ALL | ALL | ALL |
2014 | Chevrolet | Tahoe | LT | 4WD | ALL | ALL | ALL |
2014 | Chevrolet | Tahoe | LTZ | 4WD | ALL | ALL | ALL |
2014 | Chevrolet | Tahoe | SSV | 4WD | ALL | ALL | ALL |
2014 | GMC | Yukon | SLE | 4WD | ALL | ALL | ALL |
2014 | GMC | Yukon | SLT | 4WD | ALL | ALL | ALL |
2014 | GMC | Yukon XL 1500 | SLE | 4WD | ALL | ALL | ALL |
2014 | GMC | Yukon XL 1500 | SLT | 4WD | ALL | ALL | ALL |

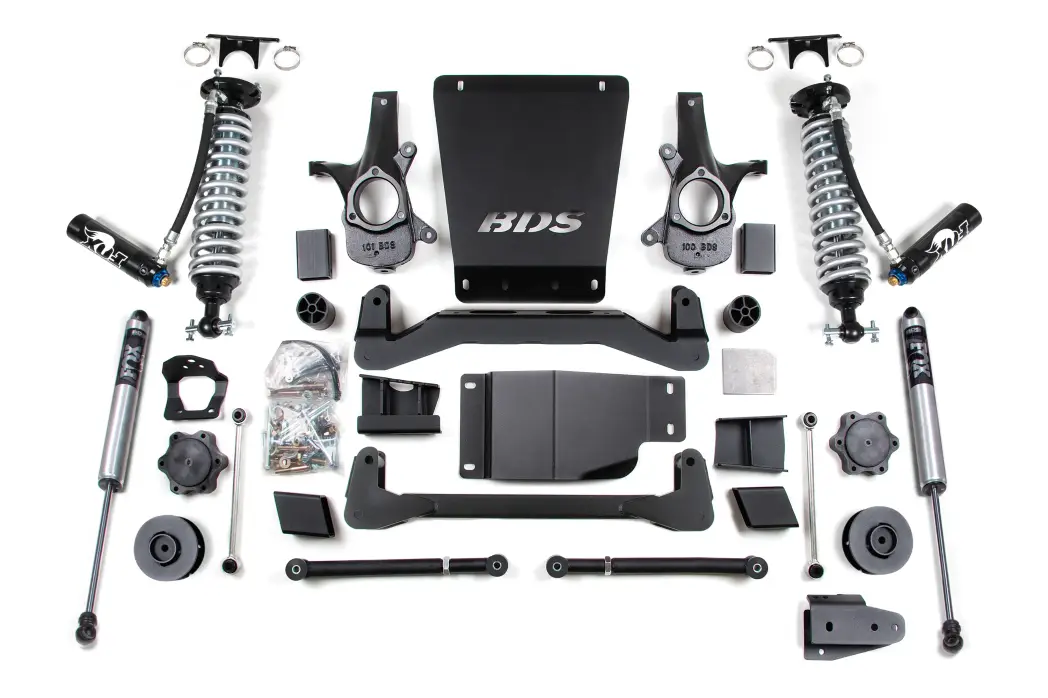

Component List
1 BDS021640 07-13 GM 1500/SUV 4-6in Front Box (1of2)
1 BDS021644 2007-2013 GM 1500/SUV 4-6in Front Box (2of2)
1 BDS121613 07-13 GM Front Skid Plate
1 FOX88306135 Kit: BDS 07-18 GM 1500 Front Coilover, 2.5 Series, R/R, 4" Lift, DSC
2 FOX98224719 Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
Tires & Wheels
32 x 11.5 with 17 x 8 and 4.5 in. Backspace
33 x 12.5 with 17 x 9 and 5 in. Backspace
33 x 12.5 with 20 x 9 and 5.75 in. Backspace
Details
- BDS900FDSC
- BDS900FDSC
- 840416421958
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
