K947241VA | MaxTrac Suspension 4 Inch Lift Kit With Radius Arm Bracket & Vulcan Shocks For Air Ride Ram 2500 4WD (2014-2018) | Diesel

4 Inch Lift Kit With Radius Arm Bracket & Vulcan Shocks For Air Ride Ram 2500 4WD (2014-2018) | Diesel

K947241VA
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $3,030.00
Qty:

Description

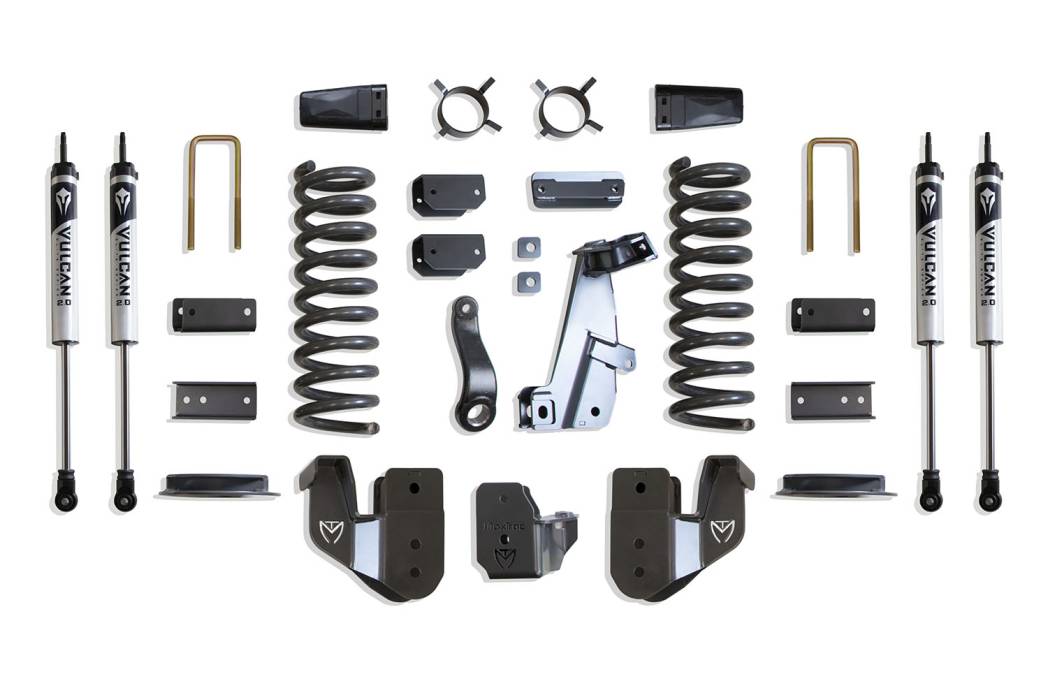

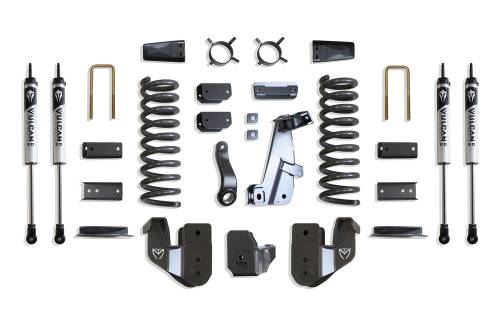

MaxTrac suspension’s kit# K947241VA is a complete 4" lift kit.

Including diesel coils, radius arm brackets, trac bar bracket, pitman arm, sway bar brackets, bump stops, rear air bag spacers, trac bar bracket, sway bar brackets, bump stop extensions & front/rear vulcan series shocks.

Product Specs

  • Gas: N
  • Diesel: Y
  • Kit Type: LIFT/LEVEL
  • Front / Rear Kit: KIT
  • Lift (Front): 1
  • Weight: 215 lbs
  • Unit Of Measure: IN

Notes

  • Requires 18" rims or larger w/ 5.5" backspacing or less
  • Clears up to a 37" x 12.50" tire on 8"-9" wide rim
  • Fender trimming may be required
  • Does not fit 2wd models
  • Not intended for gas models, but if installed, will see an extra 2" of lift
  • Does not fit cab/chassis "fleet" model trucks
  • Max trac suspension does not recommend using wheels wider than 9" or wheels with less than 4.5" backspacing. Doing so will result in voiding any and all manufacturer warranties

Application List

2014-2018 Ram 2500 Pickup 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
