K947285VLA | MaxTrac Suspension 8 Inch Lift Kit With 4 Links & Vulcan Shocks For Air Ride Ram 2500 4WD (2014-2018) | Diesel

MaxTrac suspension’s kit# K947285VLA is a complete 8" lift kit.

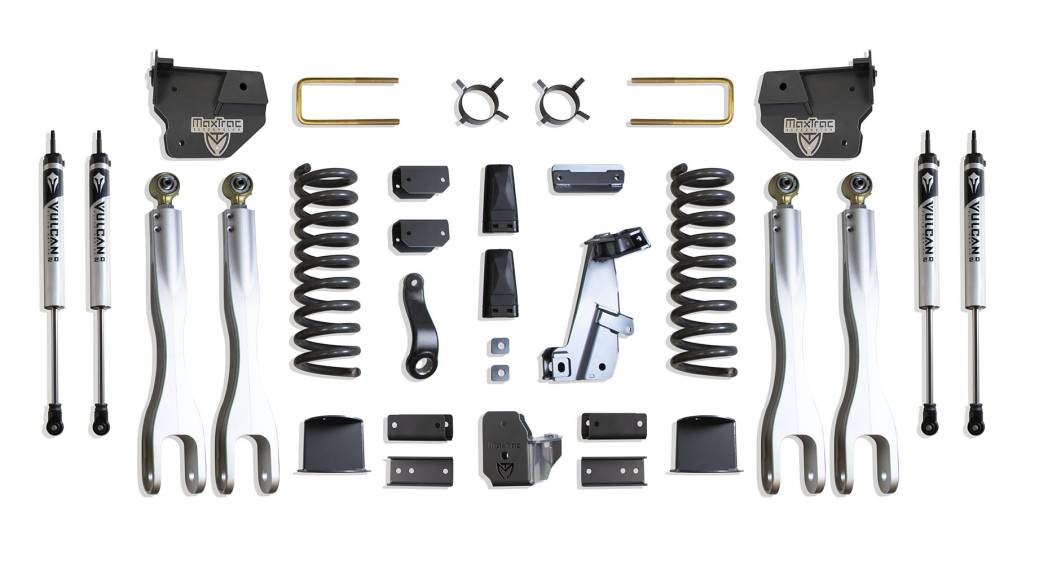

Including diesel coils, forged aluminum 4 links, trac bar bracket, pitman arm, sway bar brackets, bump stops, rear air bag spacers, trac bar bracket, sway bar brackets, bump stop extensions & front/rear Vulcan shocks

Product Specs

• Gas: N
• Diesel: Y
• Kit Type: LIFT/LEVEL
• Front / Rear Kit: KIT
• Lift (Front): 5
• Weight: 325 lbs
• Unit Of Measure: IN

Notes

• Requires 18" rims or larger w/ 5.5" backspacing or less
• Clears up to a 40" x 13.50" tire on 8"-9" wide rim
• Fender trimming may be required
• Does not fit 2wd models
• Not intended for gas models, but if installed, will see an extra 2" of lift
• Does not fit cab/chassis "fleet" model trucks
• Max trac suspension does not recommend using wheels wider than 9" or wheels with less than 4.5" backspacing. Doing so will result in voiding any and all manufacturer warranties
