54557RED | Rough Country 3 Inch Lift Kit For Ford F-150 4WD (2014-2020) | Red Finish, Vertex Coilovers, Rear V2 Monotube Shocks

3 Inch Lift Kit For Ford F-150 4WD (2014-2020) | Red Finish, Vertex Coilovers, Rear V2 Monotube Shocks | NOT Fit Regular/Standard Cab Models & Seven Lug Models

54557RED
Pricing: $2,765.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Rough Country's 3in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 14 and up F-150 pickups.

This kit features a set of high-quality, Forged Aluminum Upper Control Arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear.

Rough Country’s 3-inch Bolt-On Kit features N3 Lifted Struts and N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of rear blocks to provide lift height in the rear. Once installed, this kit gives your truck plenty of ride height for up to 34in tires while offering a clean, level look from front to rear. Retain your stock wheels with this kit when you use Rough Country’s 0.25-inch wheel spacer.

This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.

FEATURES

  • Easy Bolt-On installation
  • No Cutting or Drilling required!
  • Includes New forged aluminum upper control Arms
  • Control arms keep ball joints at optimum angles for less wear and tear
  • Control arms include Clevite rubber bushings for enhanced durability
  • Increased ground clearance
  • Levels the front and rear of the truck
  • Can be returned to stock
  • Retain your factory wheels by using our 0.25-inch wheel spacers [SKU: 1065].
  • Lifetime Replacement Warranty*

OPTIONAL N3 LOADED STRUTS

  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Nitrogen-charged
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX COILOVERS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

Fitment Notes

  • Does NOT fit regular/standard cab models.
  • Does NOT fit seven lug models.
  • SKU: 51014 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
  • Spacer kit '51014' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
  • Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
  • For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.

Specifications

  • Est. Install Time 5-6 hours

Application List

2014 - 2020 Ford F-150 Pickup

Fitment Notes
Does NOT fit regular/standard cab models.
Does NOT fit seven lug models.
SKU: 51014 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
Spacer kit '51014' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.

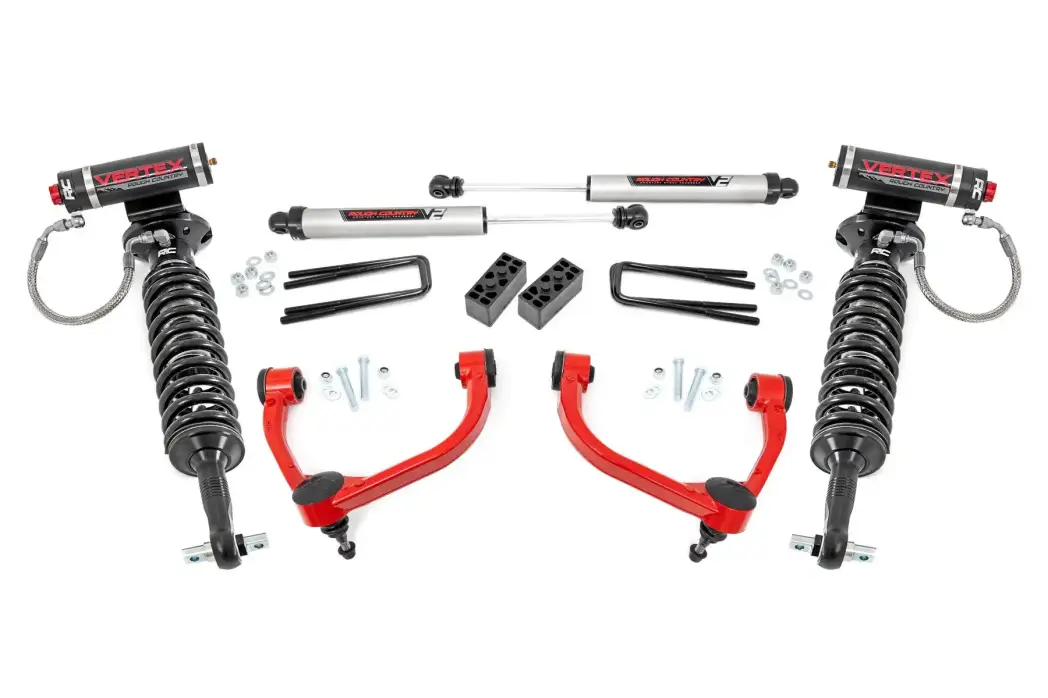

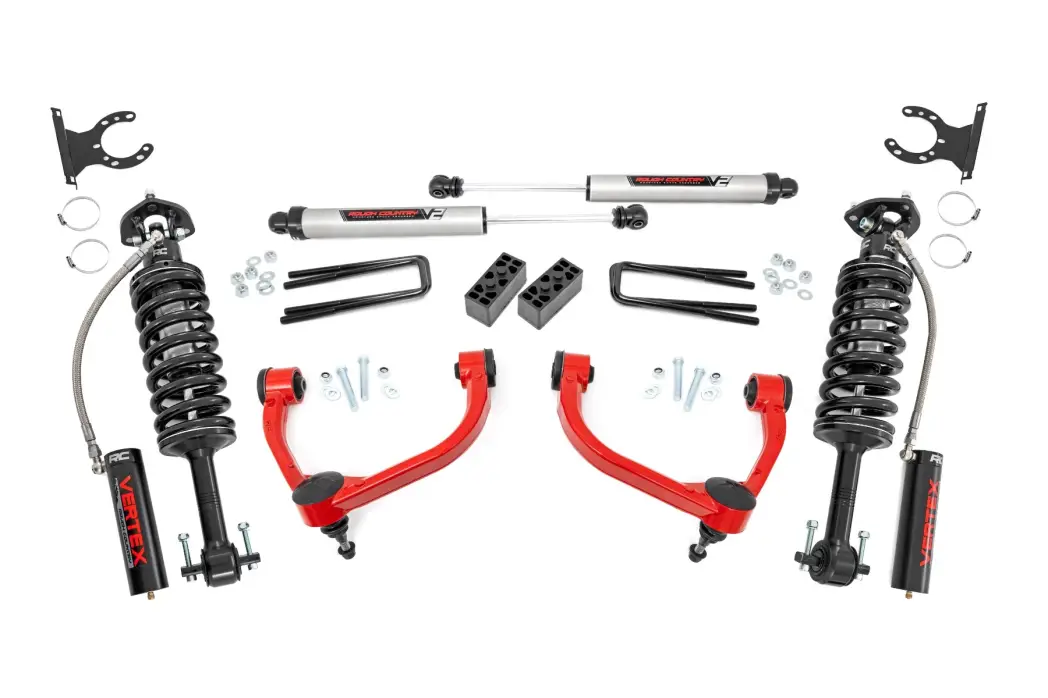

Component List

FRONT
(2) Forged Upper Control Arms

REAR
(2) Lift Blocks
(4) U-bolts
Hardware

SHOCKS
(2) Front
(2) Rear

Tires & Wheels

295/70 R18 18x9 - +12
295/60 R20 20x9 - +12
Using larger tires on factory wheels requires a 0.25-inch wheel spacer
Minor trimming may be required

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 110.0 lbs.
  • W15.0000” x H10.0000” x L33.0000”
