54550RED | Rough Country 3 Inch Lift Kit For Ford F-150 4WD (2014-2020) | Red Finish, Vertex Coilovers & Shocks
3 Inch Lift Kit For Ford F-150 4WD (2014-2020) | Red Finish, Vertex Coilovers & Shocks | NOT Fit Regular/Standard Cab Models & Seven Lug Models
Description
Rough Country's 3in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 14 and up F-150 pickups.
This kit features a set of high-quality, Forged Aluminum Upper Control Arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear.
Rough Country’s 3-inch Bolt-On Kit features N3 Lifted Struts and N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of rear blocks to provide lift height in the rear. Once installed, this kit gives your truck plenty of ride height for up to 34in tires while offering a clean, level look from front to rear. Retain your stock wheels with this kit when you use Rough Country’s 0.25-inch wheel spacer.
This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.
FEATURES
- Easy Bolt-On installation
- No Cutting or Drilling required!
- Includes New forged aluminum upper control Arms
- Control arms keep ball joints at optimum angles for less wear and tear
- Control arms include Clevite rubber bushings for enhanced durability
- Increased ground clearance
- Levels the front and rear of the truck
- Can be returned to stock
- Retain your factory wheels by using our 0.25-inch wheel spacers [SKU: 1065].
- Lifetime Replacement Warranty*
OPTIONAL N3 LOADED STRUTS
- Maintains smooth, factory-like ride
- Increased ground clearance
- Nitrogen-charged
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
OPTIONAL VERTEX COILOVERS
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
Fitment Notes
- Does NOT fit regular/standard cab models.
- Does NOT fit seven lug models.
- SKU: 51014 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
- Spacer kit '51014' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
- Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
- For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.
Specifications
- Est. Install Time 5-6 hours
Application List
Fitment Notes
Does NOT fit regular/standard cab models.
Does NOT fit seven lug models.
SKU: 51014 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
Spacer kit '51014' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.

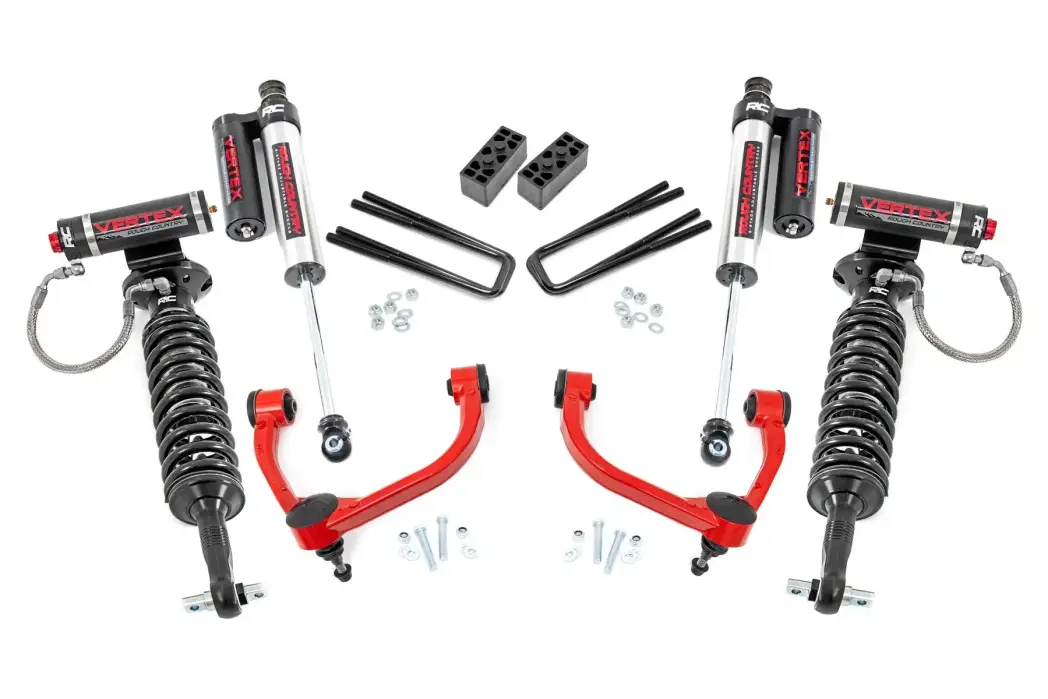

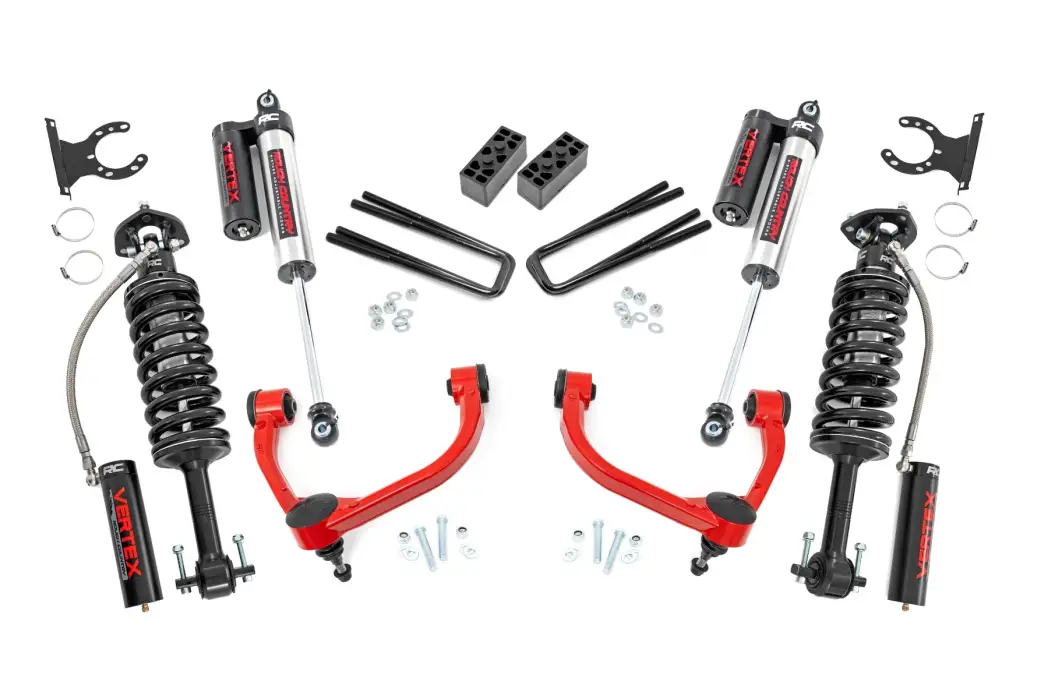

Component List
(2) Forged Upper Control Arms
REAR
(2) Lift Blocks
(4) U-bolts
Hardware
SHOCKS
(2) Front
(2) Rear
Tires & Wheels
295/60 R20 20x9 - +12
Using larger tires on factory wheels requires a 0.25-inch wheel spacer
Minor trimming may be required
Details
- 54550RED
- 54550RED
- 840269940637
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 116.5 lbs.
- W15.0000” x H10.0000” x L33.0000”
- Free Ground Shipping | Exclusions Apply*
