CS-FLVL-PT25-23-GAS | Carli Suspension 3.0" Lift Pintop Leveling System For Ford F-250/F-350 Super Duty (2023-2024) | Gas

Carli Suspension 3.0" Lift Pintop Leveling System For Ford F-250/F-350 Super Duty (2023-2024) | Gas

CS-FLVL-PT25-23-GAS
Pricing: $7,334.70
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The Carli Pintop is a Jack-of-all-trades system that delivers a sedate yet confident on-road ride with all the harsh edges rounded and smoothed while making light- to medium-duty off-road escapades completely controlled and uneventful. The system features Carli-specific, blueprinted, King 2.5” shocks on all four corners.

With a 2.5” diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0” shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

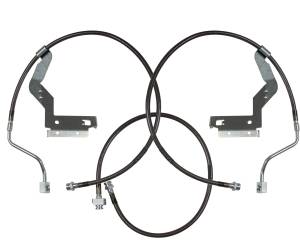

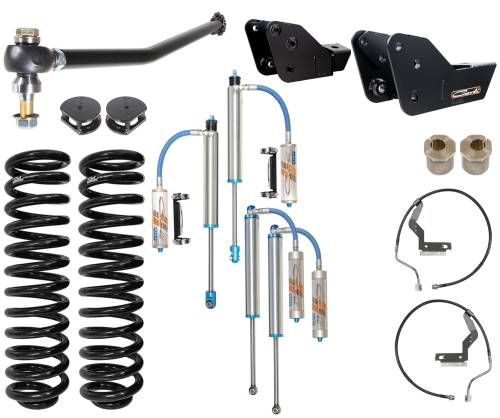

  • System includes front and rear shock package, linear rate coil springs, brake line kit, bump stop drops, caster correction shims, radius arm drop brackets, and adjustable track bar.
  • Increases wheel travel to 9" front and 13" rear.
  • Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
  • Requires but does not include sway bar option.

Technical Notes

  • Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 orCS-FELKIT-LVL-17 or CS-FTSB-LVL-17
  • Radius Arms: CS-FARA-LVL-23
  • Leaf Spring Options (REQUIRED): CS-FFSP-LVL-17 or CS-FPAP-LVL-17
  • Leaf Spring Shackle: CS-FSHACKLE-11
  • Steering Stabilizer - High mount: CS-FHMSS-17
  • Steering Stabilizer - Low mount: CS-FLMSS-23
  • Carrier Bearing Drop: CS-CARRIERDROP-F
  • Trophy Hitch: CS-FHITCH-1723

Application List

2023-2024 Ford F-350 Super Duty
2023-2024 Ford F-250 Super Duty

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W16.0000” x H13.0000” x L42.0000”
  • Free Ground Shipping | Exclusions Apply*
