BDS1401FS | BDS Suspension 2 Inch Lift Kit With Coil Spacer For Jeep Wrangler JK 2 Door (2007-2011) | Fox 2.0 Performance Series Shock
2 Inch Lift Kit With Coil Spacer For Jeep Wrangler JK 2 Door (2007-2011) | Fox 2.0 Performance Series Shock
Description
Boost the height of your 2007-2011 Jeep Wrangler JK 2 Door by installing this 2-inch coil spacer lift kit from BDS. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33" tires at an affordable price.

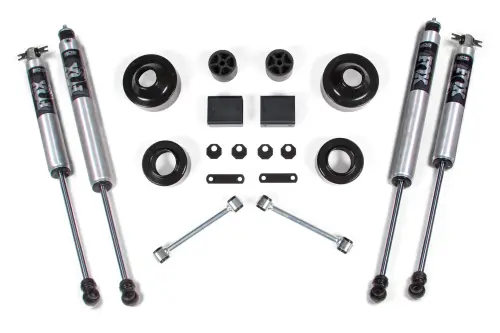

The lift kit includes four new urethane coil mounts, bump stop extensions, front octo-cam washers and your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Features & Benefits
- Urethane coil spacers maintain factory ride
- Lower cam locks to correct caster for alignment
- Bump stop spacers to prevent harsh bottom outs
- Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
- Allows clearance for 33" tires
Recommended Tires & Wheels
(Trimming may be required)
- 33 x 12.5 with 16 x 8 and 4.5 in. Backspace
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- Removing the OE spring isolators will result in a 1" lift if desired.
- 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels
- This kit is FMVSS No.126 Compliant
Installation
Est. Install Time :
4 hrsDifficulty Level :
ModeratelyEasySpecialty Tools Needed :
Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands
Specification
- Front Lift Method : Coil Spacers
- Rear Lift Method : Coil Spacers
- Shocks Included : Yes
- Front Lift Height : 2"
- Rear Lift Height : 2"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2007 | Jeep | Wrangler JK | Rubicon | ALL | ALL | ALL | ALL |
2007 | Jeep | Wrangler JK | Sahara | ALL | ALL | ALL | ALL |
2007 | Jeep | Wrangler JK | ALL | ALL | ALL | ALL | ALL |
2008 | Jeep | Wrangler JK | Rubicon | ALL | ALL | ALL | ALL |
2008 | Jeep | Wrangler JK | Sahara | ALL | ALL | ALL | ALL |
2008 | Jeep | Wrangler JK | ALL | ALL | ALL | ALL | ALL |
2009 | Jeep | Wrangler JK | Rubicon | ALL | ALL | ALL | ALL |
2009 | Jeep | Wrangler JK | Sahara | ALL | ALL | ALL | ALL |
2009 | Jeep | Wrangler JK | X-S | ALL | ALL | ALL | ALL |
2009 | Jeep | Wrangler JK | ALL | ALL | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Islander | ALL | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Rubicon | ALL | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Sahara | ALL | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Sport | ALL | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | ALL | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | 70th Anniversary | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Rubicon | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Sahara | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Sport | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | ALL | ALL | ALL | ALL | ALL |
Component List
1 BDS124320 2007-2018 Jeep Wrangler (JK) 2-4.5in Front Sway Bar Links Solid
2 FOX98224921 Fox 2.0 Shock 25.12 x 15.55 x 2- S50/EB1
2 FOX98224951 Fox 2.0 Shock 26.35 x 16.75 x 2-BP18/EB1
Tires & Wheels
Details
- BDS1401FS
- BDS1401FS
- 840416400953
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 33.1 lbs.
- W7.0000” x H7.0000” x L30.0000”
- Free Ground Shipping | Exclusions Apply*
