BDS1414H | BDS Suspension 4.5 Inch Lift Kit For Jeep Wrangler JK 4 Door (2007-2011) | Sway Bar Fixed Links, NX2 Nitro Series Shocks
4.5 Inch Lift Kit For Jeep Wrangler JK 4 Door (2007-2011) | Sway Bar Fixed Links, NX2 Nitro Series Shocks
Description
Take your 2007-2011 Jeep Wrangler JK 4 Door to the next level and improve the ride with this 4.5-inch lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes 4" Pro-Ride coil springs capable of full coil bind and 3" bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry. The front suspension in this 4-inch lift kit is finished off with fixed length lower control arms with OE grade rubber bushings that re-position the front axle for proper alignment.
In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. For proper rear axle position and pinion angle this kit includes fixed length rear lower control arms and adjustable rear upper arms. Round out this 4" lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Features & Benefits
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- Rear track bar bracket repositions rear axle under vehicle
- Lower cam locks to correct caster for alignment
- Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
- Allows clearance for 35" tires
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 16 x 8 and 4.5 in. Backspace
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Sway Bar Link Option
Disconnects
- Gain 30 percent more axle articulationl by disconnecting your front sway bar
- Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
- Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
- Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability
Fixed Links
- Required for use on Rubicon models with electronic disconnect.
- Improves handling with proper sway bar operating angle
- Heavy-duty steel construction with zinc finish
- Polyurethane hourglass bushings for long life and quiet operation
Important Notes
- Will not fit 2wd models.
- The fixed front and rear lower control arms can be upgraded to the flex or adjustable arms listed in the accessories.
- The front driveshaft is maxed out at full droop and on certain models the driveshaft boot can contact the transmission pan. Replacement of the front driveshaft is recommended.
- Exhaust modification may be required.This kit is FMVSS No.126 Compliant
Installation
Est. Install Time :
8 hrsDifficulty Level :
Moderately EasySpecialty Tools Needed :
Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller
Specification
- Front Lift Method : Coil Spring
- Rear Lift Method : Coil Springs
- Shocks Included : Yes
- Front Lift Height : 4.5"
- Rear Lift Height : 4"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2007 | Jeep | Wrangler JK | Unlimited Rubicon | 4WD | ALL | ALL | ALL |
2007 | Jeep | Wrangler JK | Unlimited Sahara | 4WD | ALL | ALL | ALL |
2007 | Jeep | Wrangler JK | Unlimited X | 4WD | ALL | ALL | ALL |
2008 | Jeep | Wrangler JK | Unlimited Rubicon | 4WD | ALL | ALL | ALL |
2008 | Jeep | Wrangler JK | Unlimited Sahara | 4WD | ALL | ALL | ALL |
2008 | Jeep | Wrangler JK | Unlimited X | 4WD | ALL | ALL | ALL |
2009 | Jeep | Wrangler JK | Unlimited Rubicon | 4WD | ALL | ALL | ALL |
2009 | Jeep | Wrangler JK | Unlimited Sahara | 4WD | ALL | ALL | ALL |
2009 | Jeep | Wrangler JK | Unlimited X | 4WD | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Unlimited Mountain | 4WD | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Unlimited Rubicon | 4WD | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Unlimited Sahara | 4WD | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Unlimited Sport | 4WD | ALL | ALL | ALL |
2010 | Jeep | Wrangler JK | Unlimited X | 4WD | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Unlimited 70th Anniversary | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Unlimited Rubicon | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Unlimited Sahara | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Unlimited Sport | ALL | ALL | ALL | ALL |
2011 | Jeep | Wrangler JK | Unlimited X | ALL | ALL | ALL | ALL |

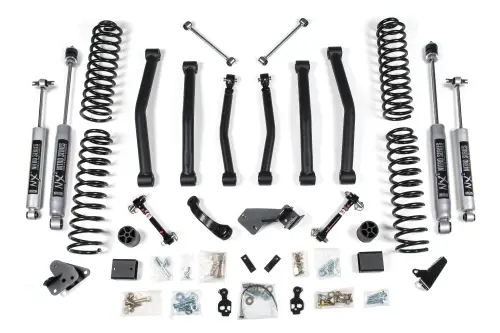

Component List
1 BDS034411 2007-2018 Jeep Wrangler (JK) 2dr/5.5in 4dr/4.5in Front Coil Kit
1 BDS034419 2007-2018 Jeep Wrangler (JK) 2dr/5in 4dr/4in Rear Coil Kit
1 BDS124331 2007-2018 Jeep Wrangler (JK) Front Fixed LCA Kit
1 BDS124339 Jeep Wrangler JK Rear Fixed LCA Kit
2 BDS85700 Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2
2 BDS85959 Shock- 28.00 x 16.50 x 2-3/8 - BP18/EB1
Tires & Wheels
37 x 12.5 with 16 x 8 and 4.5 in. Backspace
