68640 | Rough Country 4.5 Inch Lift Kit with M1 Monotube Shocks Leaf Springs (1984-2001 Cherokee XJ 4WD | NP231)

1984-2001 Jeep Cherokee XJ 2WD/4WD | 2.5L I4 / 4.0L I6 With NP231 Transfer Case

68640
Pricing: $1,941.95
Qty:

Description

4.5 Inch Lift Kit Jeep Cherokee XJ (84-01) | 2.5L I4 / 4.0L I6 | MP231 | Leaf Springs | Premium N3 Shocks

Take your XJ’s already capable platform to the next level with Rough Country’s 4.5 inch Long arm suspension kit. This fully bolt on kit relocates the front control arms to achieve optimum alignment angles, while giving your rig insane articulation off road.

A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.

You get top quality craftsmanship, and superior off road capability all for an unbeatable value and the best price in the market!

Features

  • Unbeatable value and the best price in the market!
  • Aggressive appearance.
  • Increased ground clearance.
  • Front adjustable track bar is made of forged solid steel for unsurpassed strength and durability.
  • Quick disconnects quickly and easily store out of the way when not in use.
  • Lower control arms feature high clearance design.
  • Extreme travel long arms keep optimum alignment and give optimum articulation.
  • X-Flex control arm features:
    • Clevite brand OEM style rubber bushings.
    • Flex joints feature a massive 2.5" diameter body and 1.25" thread.
    • Fully greasable.
    • Upper joints pivot up to 20 degrees.
    • Lower joints pivot up to 35 degrees.

Notes - Important

  • Does NOT fit models diesel engine.
  • Does NOT fit models with AX5 transmission.
  • Does NOT fit models with 2.8L V-6 or diesel engines.
  • Does NOT fit 87-89 models with Peugeot manual transmissions.
  • If running 33" tires, they will require fender trimming to clear.

Specs

Est. Install Time  8-9 hours

Application List

Start End Make Model Submodel Drive
1984 1993 Jeep Cherokee Base 4WD
1991 1992 Jeep Cherokee Briarwood 4WD
1985 1988 Jeep Cherokee Chief 4WD
1996 2001 Jeep Cherokee Classic 4WD
1993 1997 Jeep Cherokee Country 4WD
1985 1992 Jeep Cherokee Laredo 4WD
1987 2001 Jeep Cherokee Limited 4WD
1985 1990 Jeep Cherokee Pioneer 4WD
1994 2001 Jeep Cherokee SE 4WD
1989 2001 Jeep Cherokee Sport 4WD

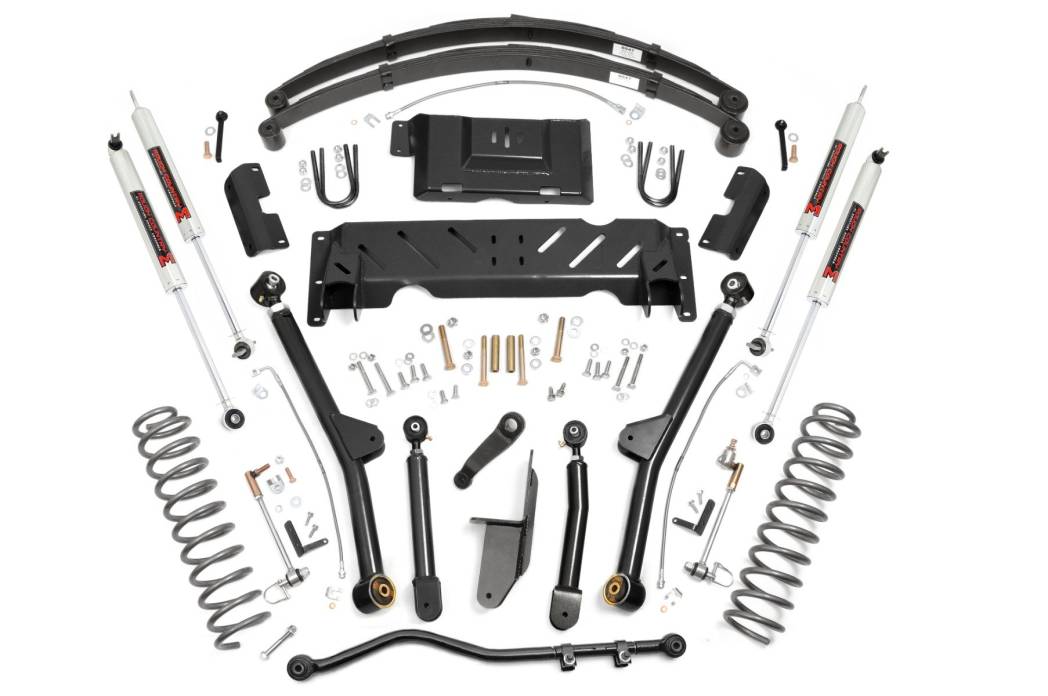

Components

FRONT
Lifted high flex coil springs
Long arm Crossmember
Adjustable upper control arms
Adjustable lower control arms
Long arm Crossmember
Transfer case skid plate
Sway-bar quick disconnects
Forged adjustable track bar
Pitman arm
Stainless steel braided brake lines
Hardware

REAR
Lifted leaf springs
U-bolts
Stainless steel braided brake line
Hardware

SHOCKS
(4) M1 Monotube Series

Tires & Wheels

TireWheelBolt PatternOffsetNote
32x11.50R1515x85x4.5-19-
32x11.50R1515x85x4.5-18-
285/75R1616x85x4.5-12-
285/75R1616x85x4.5-6-
285/70R1717x8.55x4.5-12-
285/70R1717x8.55x4.5+0-
285/70R1717x8.55x4.5+1-
285/70R1717x95x4.5+0-
275/70R1717x95x4.5+0-
265/70R1717x95x4.5+0-
285/70R1717x95x4.5+1-
275/70R1717x95x4.5+1-
265/70R1717x95x4.5+1-
285/65R1818x8.55x4.5+0-
275/65R1818x8.55x4.5+0-
265/65R1818x8.55x4.5+0-
285/65R1818x8.55x4.5+1-
275/65R1818x8.55x4.5+1-
265/65R1818x8.55x4.5+1-
285/65R1818x95x4.5+0-
275/65R1818x95x4.5+0-
265/65R1818x95x4.5+0-
285/65R1818x95x4.5+1-
275/65R1818x95x4.5+1-
265/65R1818x95x4.5+1-
33x11.50R2020x95x4.5+0-
33x11.50R2020x95x4.5+1-
285/55R2020x105x4.5-19-
265/55R2020x105x4.5-19-
285/55R2020x105x4.5-18-
265/55R2020x105x4.5-18-

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 306.3 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • $75.00
