31240RED | Rough Country 3 Inch Lift Kit with M1 Monotube Struts / Rear Shocks (2012-2018 Ram 1500 4WD)
2012-2018 Ram 1500 Pickup 2WD/4WD | 2019-2024 Ram 1500 Pickup 2WD/4WD Classic
Description
3 Inch Lift Kit | M1 Monotube Loaded Struts & Rear Shocks | Ram 1500 4WD (2012-2018 & Classic)
Rough Country's 3-inch Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for RAM 1500 pickups. This kit features a set of high-quality, forged aluminum Upper Control Arms designed to make alignment adjustments easier and durable rubber bushings. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball joint, with less stress, wear and tear.

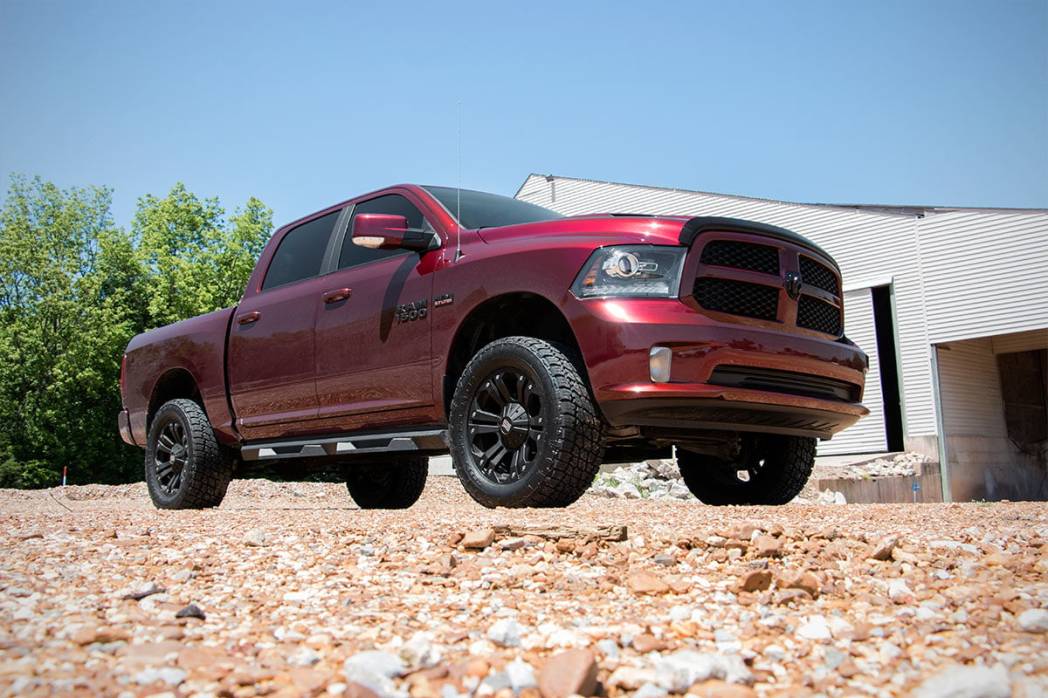

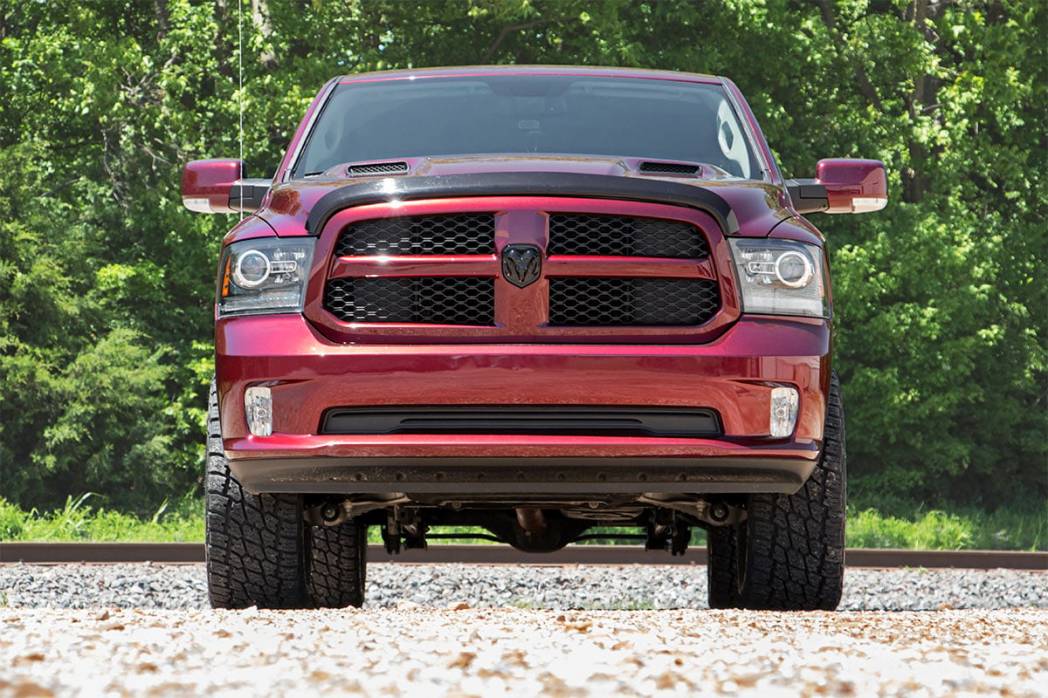

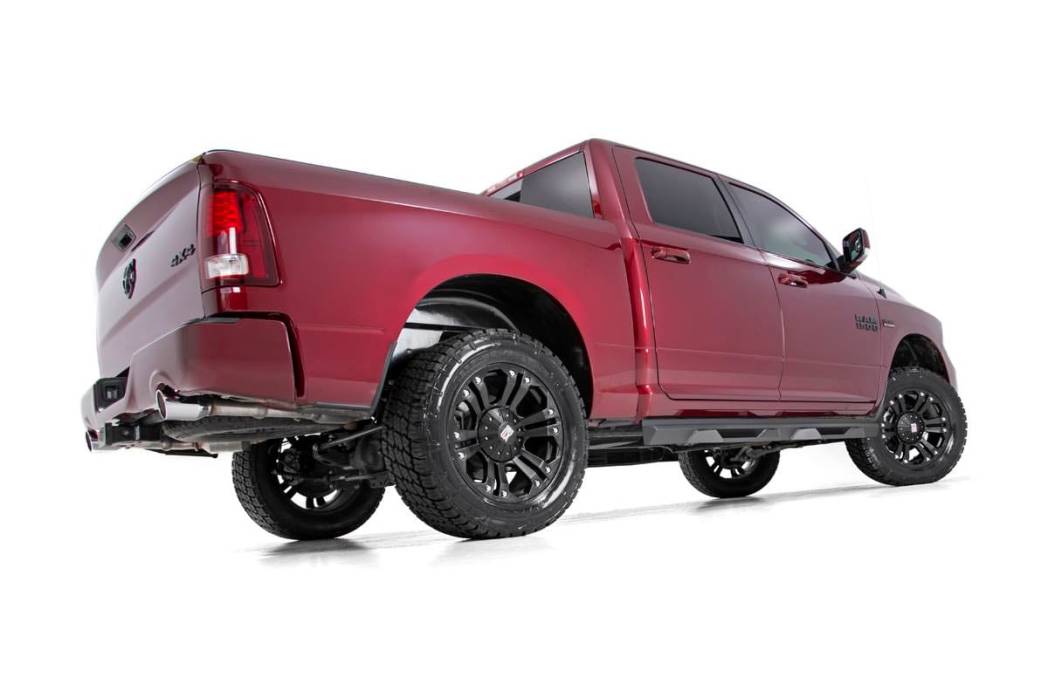

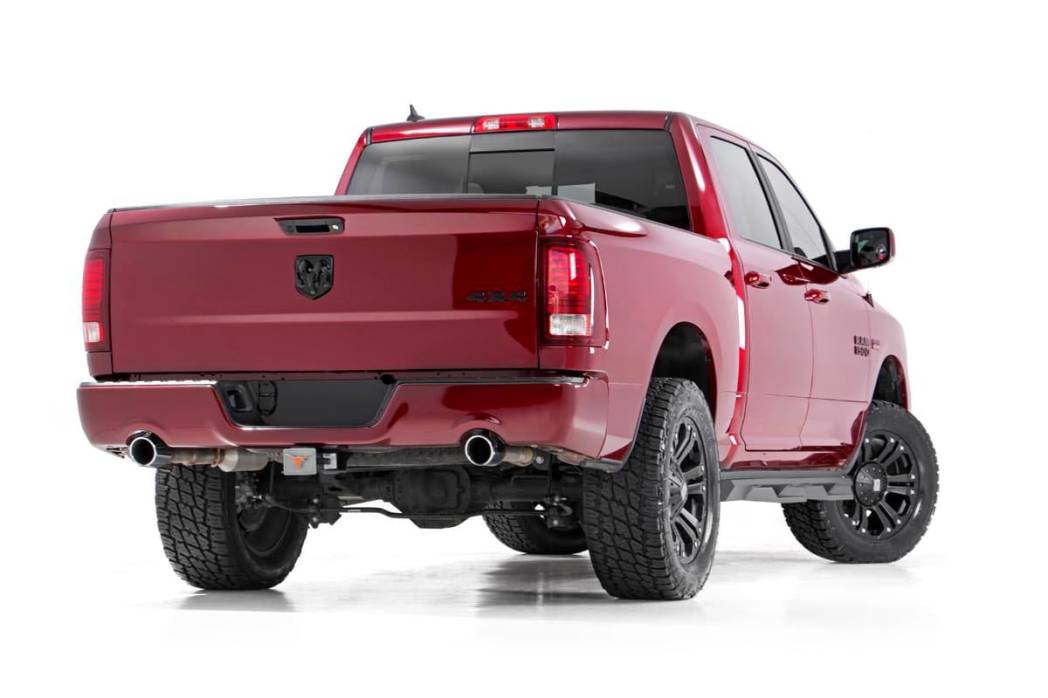

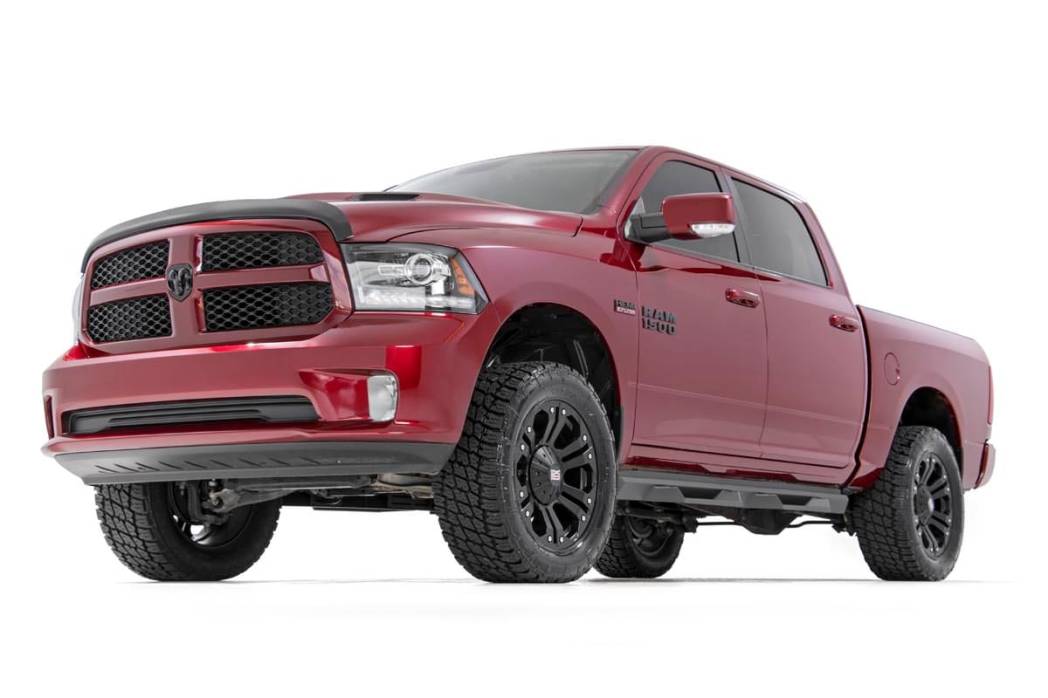

Rough Country’s 3-inch Bolt-On Kit features a set of durable front and rear spacers to provide lift height from front to rear. Once installed, this kit gives your truck plenty of ride height for up to 33in tires while offering a clean, level look from front to rear.
This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.
Features
- Easy Bolt-On installation.
- No Cutting or Drilling required!
- Includes new forged aluminum upper control arms.
- Control arms keep ball joints at optimum angles for less wear and tear.
- Control arms include durable rubber bushings for enhanced durability.
- Increased ground clearance.
- Levels the front and rear of the truck.
- Can be returned to stock.
Notes - Important
- Does NOT fit "TRX" models.
- Does NOT fit models with factory air ride suspension.
- Optional N3 struts do NOT fit V6 models.
- Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
- For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.
Specs
Est. Install Time | 5-6 hours |
---|
Application List
StartYear | EndYear | Make | Model | Submodel | Drive |
---|---|---|---|---|---|
2012 | 2018 | Ram | 1500 | Big Horn | 4WD |
2012 | 2018 | Ram | 1500 | Express | 4WD |
2012 | 2018 | Ram | 1500 | Laramie | 4WD |
2014 | 2015 | Ram | 1500 | Laramie Limited | 4WD |
2012 | 2018 | Ram | 1500 | Laramie Longhorn | 4WD |
2015 | 2018 | Ram | 1500 | Limited | 4WD |
2014 | 2018 | Ram | 1500 | Lone Star | 4WD |
2012 | 2016 | Ram | 1500 | Outdoorsman | 4WD |
2015 | 2018 | Ram | 1500 | Rebel | 4WD |
2012 | 2018 | Ram | 1500 | SLT | 4WD |
2012 | 2018 | Ram | 1500 | Sport | 4WD |
2012 | 2012 | Ram | 1500 | ST | 4WD |
2012 | 2018 | Ram | 1500 | Tradesman | 4WD |
2019 | 2019 | Ram | 1500 Classic | Big Horn | 4WD |
2019 | 2022 | Ram | 1500 Classic | Express | 4WD |
2019 | 2019 | Ram | 1500 Classic | Laramie | 4WD |
2019 | 2019 | Ram | 1500 Classic | Lone Star | 4WD |
2019 | 2022 | Ram | 1500 Classic | SLT | 4WD |
2019 | 2024 | Ram | 1500 Classic | Tradesman | 4WD |
2019 | 2024 | Ram | 1500 Classic | Warlock | 4WD |

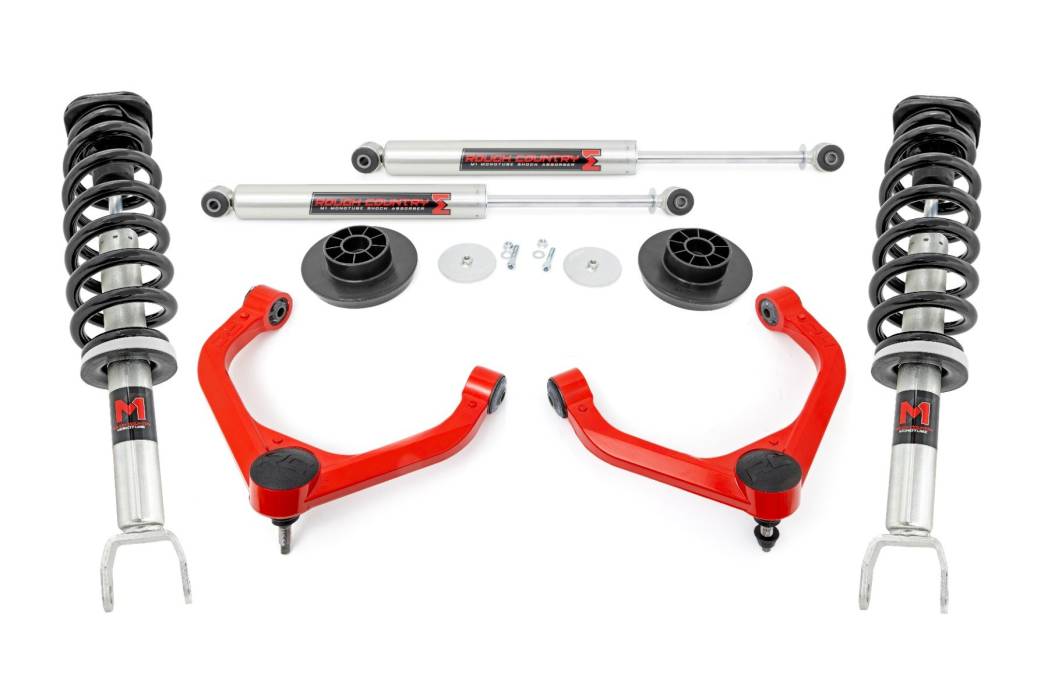

Components
(2) Upper control arms
(2) M1 Monotube Loaded Struts
Rear
(2) Coil spacers
Hardware
SHOCKS
(2) M1 Monotube Series (Rear
Shocks
M1 Monotube Shocks
Whether you're tackling tough terrain or smooth city streets, Rough Country's Nitrogen-charged M1 Monotube Shock Absorber leads the way, delivering impeccable ride quality and performance mile after mile. Rough Country's Monotube M1 Shocks feature an internal floating piston design that keeps the shock oil and high-pressure nitrogen separate. The result is a lightning-fast reaction with no cavitation - just unbridled vibration damping at each and every obstacle. The M1 Monotube Shock Absorber is more than an upgrade - it's a true performance shock. Each shock features a steel body that is brushed and glavanized boasting a passivation sealing technology that is sure to withstand the elements. The internal 46mm digressive piston offers countless years of durability. The M1 is designed to be mounted body-up for a more interesting look on the vehicle.
Features
2-inch seamless extruded tube.
46mm digressive piston.
Self-adjusting, deflective-disc independent rebound and compression.
18mm centerless-ground, case-hardened, chromed, and super-polished rod.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Digressive valving instantly reacts to changing surface conditions.
Zinc plated for resistance against harsh elements.
Available in various lift heights for multiple applications.
Durable vulcanized natural rubber bushings.
Free Shipping
3-year Manufacturer's Warranty
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
33x12.50R17 | Factory 17 | 5x5.5 | - | - |
33x12.50R17 | 17x8.5 | 5x5.5 | +0 | - |
33x12.50R17 | 17x8.5 | 5x5.5 | +1 | - |
33x12.50R17 | 17x9 | 5x5.5 | +0 | - |
285/70R17 | 17x9 | 5x5.5 | +0 | - |
33x12.50R17 | 17x9 | 5x5.5 | +1 | - |
285/70R17 | 17x9 | 5x5.5 | +1 | - |
33x12.50R17 | 17x9 | 5x5.5 | +18 | - |
33x12.50R17 | 17x9 | 5x5.5 | +20 | - |
33x12.50R18 | 18x8.5 | 5x5.5 | +0 | - |
33x12.50R18 | 18x8.5 | 5x5.5 | +1 | - |
33x12.50R18 | 18x9 | 5x5.5 | +0 | - |
305/60R18 | 18x9 | 5x5.5 | +0 | - |
285/65R18 | 18x9 | 5x5.5 | +0 | - |
275/65R18 | 18x9 | 5x5.5 | +0 | - |
33x12.50R18 | 18x9 | 5x5.5 | +1 | - |
305/60R18 | 18x9 | 5x5.5 | +1 | - |
285/65R18 | 18x9 | 5x5.5 | +1 | - |
275/65R18 | 18x9 | 5x5.5 | +1 | - |
33x12.50R18 | 18x9 | 5x5.5 | +18 | - |
33x12.50R18 | 18x9 | 5x5.5 | +20 | - |
33x12.50R20 | 20x9 | 5x5.5 | +0 | - |
305/55R20 | 20x9 | 5x5.5 | +0 | - |
285/55R20 | 20x9 | 5x5.5 | +0 | - |
33x12.50R20 | 20x9 | 5x5.5 | +1 | - |
305/55R20 | 20x9 | 5x5.5 | +1 | - |
285/55R20 | 20x9 | 5x5.5 | +1 | - |
33x12.50R20 | 20x9 | 5x5.5 | +18 | - |
305/55R20 | 20x9 | 5x5.5 | +18 | - |
285/55R20 | 20x9 | 5x5.5 | +18 | - |
33x12.50R20 | 20x9 | 5x5.5 | +20 | - |
305/55R20 | 20x9 | 5x5.5 | +20 | - |
285/55R20 | 20x9 | 5x5.5 | +20 | - |
285/55R20 | 20x10 | 5x5.5 | -19 | Minor Trimming |
285/55R20 | 20x10 | 5x5.5 | -18 | Minor Trimming |
33x12.50R22 | 22x10 | 5x5.5 | -19 | Minor Trimming |
305/45R22 | 22x10 | 5x5.5 | -19 | - |
33x12.50R22 | 22x10 | 5x5.5 | -18 | Minor Trimming |
305/45R22 | 22x10 | 5x5.5 | -18 | - |
