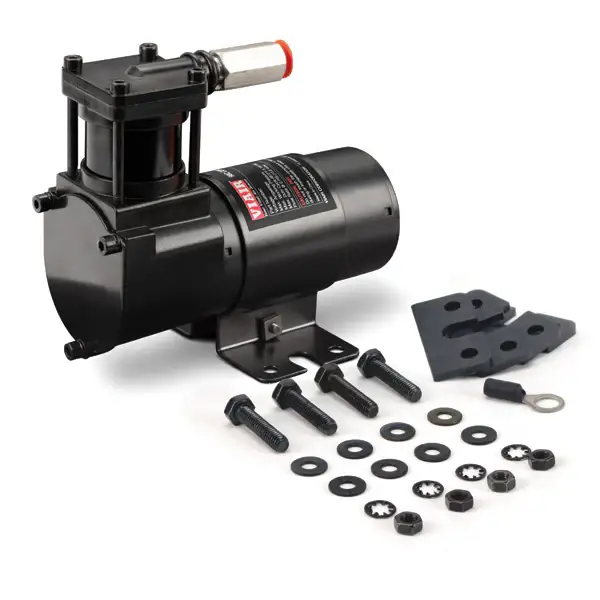

00091 | VIAIR 98C Air Compressor 12 Volt In Stealth Black | 130 PSI, Max Air Tank Size 1.0 Gallon

98C Air Compressor 12 Volt In Stealth Black | 130 PSI, Max Air Tank Size 1.0 Gallon | Universal - Check Specification Before Ordering

00091
Pricing: $145.53
Qty:

Description

The 98C is a light duty air compressor for smaller pneumatic requirements. It's designed to fill no larger than a 1 gallon tank, features an omega bracket with mounting hardware and a check valve.

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

  • PN: 00091, 00098
  • CFM: 1.53 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 10% @ 100 PSI
  • Max. Working Pressure: 130 PSI
  • Max. Air Tank Size: 1.0 Gallon
  • Max. 12V Amp Draw: 13-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 5.6″L x 3.1″W x 4.7″H
  • Net Weight: 2.55 lbs.

FEATURES:

  • Omega Bracket
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Installation Instructions

FILL RATES

  • 0.5 GALLON TANK FILL RATE
    • 0 to 105 PSI 1 min. 08 sec. (± 05 sec.)
    • 85 to 105 PSI 15 sec. (± 03 sec.)
    • 0 to 120 PSI 1 min. 05 sec. (± 05 sec.)
    • 90 to 120 PSI 21 sec. (± 03 sec.)
  • 1.0 GALLON TANK FILL RATE
    • 0 to 105 PSI 1 min. 40 sec. (± 10 sec.)
    • 85 to 105 PSI 30 sec. (± 05 sec.)
    • 0 to 120 PSI 2 min. 10 sec. (± 10 sec.)
    • 90 to 120 PSI 45 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.53 7 0 43.5 7
10 1.00 9 1.0 28.0 9
20 0.95 10 2.0 25.5 11
30 0.90 11 3.0 22.7 11
40 0.85 11 4.0 20.7 12
50 0.77 12 5.0 18.3 12
60 0.72 12 6.0 16.3 12
70 0.65 12 7.0 13.7 12
80 0.60 12 8.0 11.7 12
90 0.54 12 9.0 10.0 11
100 0.48 12
110 0.44 12
120 0.39 12
130 0.35 11



Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 2.5 lbs.
  • W3.1000” x H4.7000” x L5.6000”
