00092 | VIAIR 92C Air Compressor 12 Volt | 120 PSI, Max Air Tank Size 1.0 Gallon
92C Air Compressor 12 Volt | 120 PSI, Max Air Tank Size 1.0 Gallon | Universal - Check Specification Before Ordering
00092
Pricing:
$135.45
Description

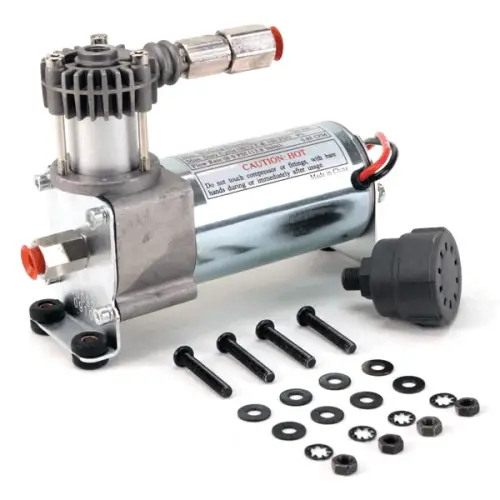

The 92C is a light duty air compressor for smaller pneumatic requirements. It's designed to fill no larger than a 1 gallon tank, features a removable air filter, check valve and comes with mounting hardware.
Please Note:
- Use thread sealant for proper installation.
- Thread tape is not recommended.
- Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
- Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
SPECIFICATIONS
- PN: 00092
- CFM: 1.03 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 9% @ 100 PSI
- Max. Working Pressure: 120 PSI
- Max. Air Tank Size: 1.0 Gallon
- Max. Amp Draw: 10-Amps
- Ingress Protection Rating: IP54
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions: 7.6″L x 2.0″W x 4.6″H
- Net Weight: 2.45lbs.
FEATURES:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Direct Mount Air Filter Assembly
- Installation Instructions
FILL RATES
- 0.5 GALLON TANK FILL RATE
- 0 to 105 PSI 1 min. 08 sec. (± 05 sec.)
- 85 to 105 PSI 16 sec. (± 03 sec.)
- 0 to 120 PSI 1 min. 23 sec. (± 05 sec.)
- 90 to 120 PSI 27 sec. (± 03 sec.)
- 1.0 GALLON TANK FILL RATE
- 0 to 105 PSI 2 min. 20 sec. (± 10 sec.)
- 85 to 105 PSI 35 sec. (± 05 sec.)
- 0 to 120 PSI 3 min. 04 sec. (± 10 sec.)
- 90 to 120 PSI 54 sec. (± 05 sec.)
Performance
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.03 | 7 | 0 | 29.0 | 7 |
10 | 0.71 | 8 | 1.0 | 19.0 | 8 |
20 | 0.67 | 8 | 2.0 | 18.0 | 9 |
30 | 0.64 | 9 | 3.0 | 16.5 | 9 |
40 | 0.60 | 9 | 4.0 | 15.0 | 10 |
50 | 0.57 | 9 | 5.0 | 13.5 | 10 |
60 | 0.53 | 10 | 6.0 | 12.5 | 10 |
70 | 0.48 | 10 | 7.0 | 11.0 | 10 |
80 | 0.45 | 10 | 8.0 | 10.0 | 9 |
90 | 0.43 | 10 | |||
100 | 0.39 | 9 | |||
110 | 0.36 | 9 | |||
120 | 0.34 | 9 |
Application List
Universal - Check Specification Before Ordering
Details
- 00092
- 00092
- VIAIR
- New
Categories
Shipping Information
- Item Requires Shipping
- 2.5 lbs.
- W2.0000” x H4.6000” x L7.6000”
