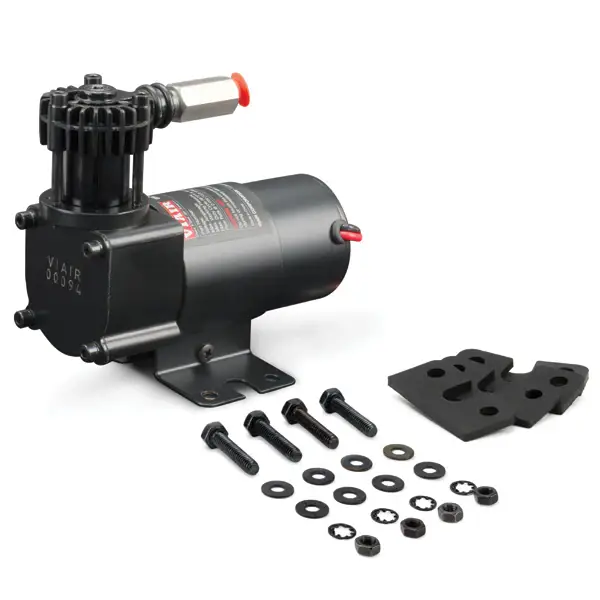

00094 | VIAIR 95C Air Compressor 12 Volt In Stealth Black | 120 PSI, Max Air Tank Size 1.0 Gallon

95C Air Compressor 12 Volt In Stealth Black | 120 PSI, Max Air Tank Size 1.0 Gallon | Universal - Check Specification Before Ordering

00094
Pricing: $141.05
Qty:

Description

The 95C is a light duty air compressor for smaller pneumatic requirements. It's designed to fill no larger than a 1-gallon tank and features an omega bracket and check valve.

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

  • PN: 00094, 00095, 02495
  • CFM: 1.03 @ 0 PSI
  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 9% @ 100 PSI
  • Max. Working Pressure: 120 PSI
  • Max. Air Tank Size: 1.0 Gallon
  • Max. 12V Amp Draw: 10-Amps
  • Max. 24V Amp Draw: 6-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 5.4″L x 3.1″W x 4.6″H
  • Net Weight: 2.55 lbs.

FEATURES:

  • Omega Bracket
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Installation Instructions

FILL RATES

  • 0.5 GALLON TANK FILL RATE
    • 0 to 105 PSI 1 min. 08 sec. (± 05 sec.)
    • 85 to 105 PSI 16 sec. (± 03 sec.)
    • 0 to 120 PSI 1 min. 23 sec. (± 05 sec.)
    • 90 to 120 PSI 27 sec. (± 03 sec.)
  • 1.0 GALLON TANK FILL RATE
    • 0 to 105 PSI 2 min. 20 sec. (± 10 sec.)
    • 85 to 105 PSI 35 sec. (± 05 sec.)
    • 0 to 120 PSI 3 min. 04 sec. (± 10 sec.)
    • 90 to 120 PSI 54 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.03 7 0 29.0 7
10 0.71 8 1.0 19.0 8
20 0.67 8 2.0 18.0 9
30 0.64 9 3.0 16.5 9
40 0.60 9 4.0 15.0 10
50 0.57 9 5.0 13.5 10
60 0.53 10 6.0 12.5 10
70 0.48 10 7.0 11.0 10
80 0.45 10 8.0 10.0 9
90 0.43 10
100 0.39 9
110 0.36 9
120 0.34 9



24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI CFM A BAR LPM A
0 1.03 4 0 29.0 4
10 0.71 4 1.0 19.0 4
20 0.67 4 2.0 18.0 4
30 0.64 4 3.0 16.5 5
40 0.60 5 4.0 15.0 5
50 0.57 5 5.0 13.5 5
60 0.53 5 6.0 12.5 5
70 0.48 5 7.0 11.0 5
80 0.45 5 8.0 10.0 5
90 0.43 5
100 0.39 5
110 0.36 5
120 0.34 5

Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 2.5 lbs.
  • W3.1000” x H4.7000” x L5.6000”
