02496 | VIAIR 96C Industrial Grade Air Compressor 24 Volt | 130 PSI, Max Air Tank Size 1.0 Gallon
96C Industrial Grade Air Compressor 24 Volt | 130 PSI, Max Air Tank Size 1.0 Gallon | Universal - Check Specification Before Ordering
Description

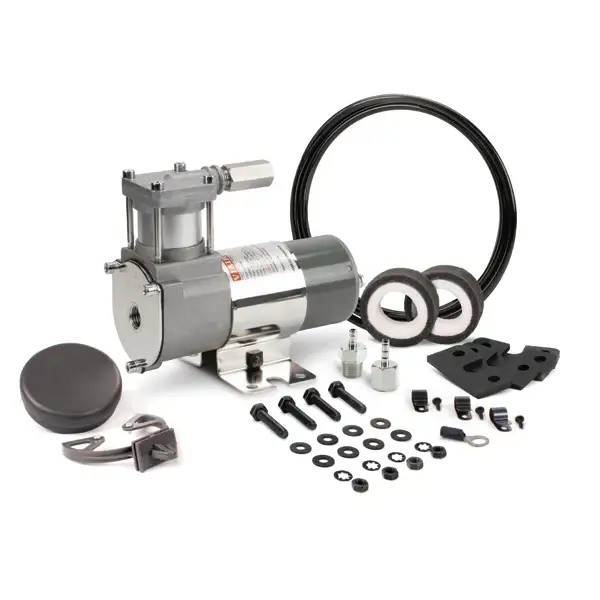

The 96 IG compressor offers a light-duty solution for small air requirements. Designed to fill no larger than a 1.0-gallon air tank, it features an adjustable Omega bracket for easy mounting in tight spaces, an air filter relocation kit to allow unrestricted airflow, and an inline check valve that protects against high amperage restart.
The 96C-IG compressors are CE Certified, RoHS/Reach Compliant and feature an IP54 protection rating.
Please Note:
- Use thread sealant for proper installation.
- Thread tape is not recommended.
- Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
- Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
SPECIFICATIONS
- 12-Volt /24-Volt
- Permanent Magnetic Motor
- Duty Cycle: 10% @ 100 PSI
- Max. Working Pressure: 130 PSI
- Max. Air Tank Size: 1.0 Gallon
- Max. 12V Amp Draw: 13-Amps
- Max. 24V Amp Draw: 8-Amps
- Ingress Protection Rating: IP54
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions: 5.6″L x 2.2″W x 4.4″H
- Net Weight: 2.25 lbs.
FEATURES:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Installation Instructions
FILL RATES
12-VOLT COMPRESSOR
- 0.5 GALLON TANK FILL RATE
- 0 to 105 PSI 1 min. 08 sec. (± 05 sec.)
- 85 to 105 PSI 16 sec. (± 03 sec.)
- 0 to 120 PSI 1 min. 23 sec. (± 05 sec.)
- 90 to 120 PSI 27 sec. (± 03 sec.)
- 1.0 GALLON TANK FILL RATE
- 0 to 105 PSI 2 min. 20 sec. (± 10 sec.)
- 85 to 105 PSI 35 sec. (± 05 sec.)
- 0 to 120 PSI 3 min. 04 sec. (± 10 sec.)
- 90 to 120 PSI 54 sec. (± 05 sec.)
24-VOLT COMPRESSOR
- 0.5 GALLON TANK FILL RATE
- 0 to 105 PSI 50 sec. (± 05 sec.)
- 85 to 105 PSI 15 sec. (± 03 sec.)
- 0 to 120 PSI 1 min. 03 sec. (± 05 sec.)
- 90 to 120 PSI 20 sec. (± 03 sec.)
- 1.0 GALLON TANK FILL RATE
- 0 to 105 PSI 1 min. 40 sec. (± 10 sec.)
- 85 to 105 PSI 30 sec. (± 05 sec.)
- 0 to 120 PSI 2 min. 05 sec. (± 10 sec.)
- 90 to 120 PSI 45 sec. (± 05 sec.)
Performance
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.53 | 7 | 0 | 43.5 | 7 |
10 | 1.00 | 9 | 1.0 | 28.0 | 9 |
20 | 0.95 | 10 | 2.0 | 25.5 | 11 |
30 | 0.90 | 11 | 3.0 | 22.7 | 11 |
40 | 0.85 | 11 | 4.0 | 20.7 | 12 |
50 | 0.77 | 12 | 5.0 | 18.3 | 12 |
60 | 0.72 | 12 | 6.0 | 16.3 | 12 |
70 | 0.65 | 12 | 7.0 | 13.7 | 12 |
80 | 0.60 | 12 | 8.0 | 11.7 | 12 |
90 | 0.54 | 12 | 9.0 | 10.0 | 11 |
100 | 0.48 | 12 | |||
110 | 0.44 | 12 | |||
120 | 0.39 | 12 | |||
130 | 0.35 | 11 |
24-VOLT COMPRESSOR - Supply Voltage 28 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.27 | 4 | 0 | 36.0 | 4 |
10 | 1.09 | 5 | 1.0 | 28.5 | 5 |
20 | 1.03 | 5 | 2.0 | 26.5 | 5 |
30 | 0.96 | 5 | 3.0 | 24.7 | 6 |
40 | 0.90 | 6 | 4.0 | 21.7 | 6 |
50 | 0.83 | 6 | 5.0 | 19.7 | 7 |
60 | 0.76 | 6 | 6.0 | 17.0 | 7 |
70 | 0.70 | 6 | 7.0 | 14.3 | 7 |
80 | 0.63 | 7 | 8.0 | 11.7 | 7 |
90 | 0.56 | 7 | 9.0 | 8.7 | 6 |
100 | 0.51 | 7 | |||
110 | 0.42 | 7 | |||
120 | 0.35 | 7 | |||
130 | 0.31 | 6 |
