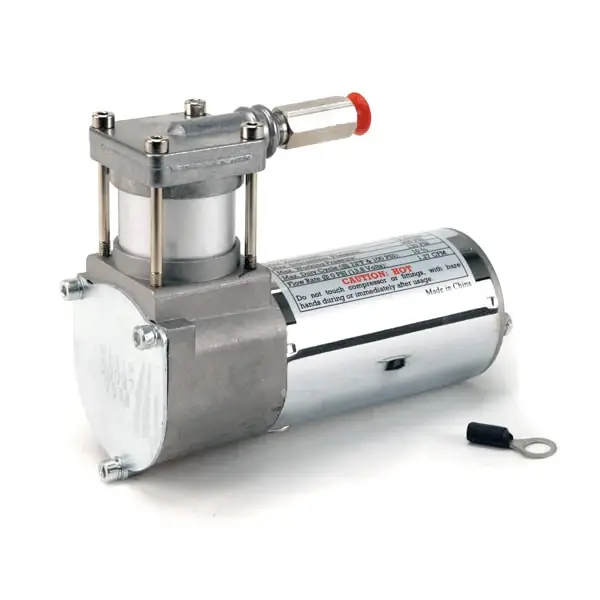

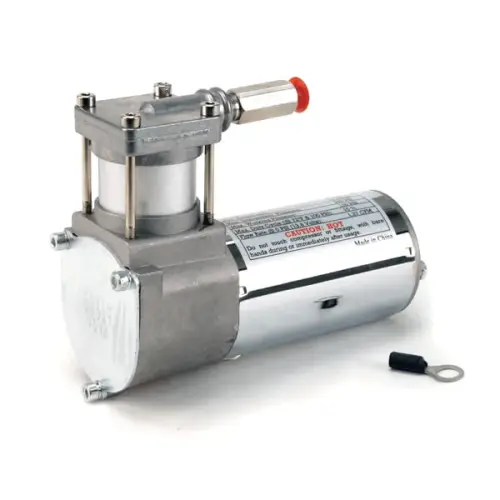

02497 | VIAIR 97C Air Compressor 24 Volt | 130 PSI, Max Air Tank Size 1.0 Gallon

The 97C is a light-duty air compressor for smaller pneumatic requirements. It's designed to fill tanks no larger than 1 gallon, has a check valve, and is available in 12 or 24-volt.

No mounting hardware included.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 00097, 02497
• CFM: 1.53 @ 0 PSI
• 12-Volt /24-Volt
• Permanent Magnetic Motor
• Duty Cycle: 10% @ 100 PSI
• Max. Working Pressure: 130 PSI
• Max. Air Tank Size: 1.0 Gallon
• Max. 12V Amp Draw: 12-Amps
• Max. 24V Amp Draw: 7-Amps
• Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 5.6″L x 2.2″W x 4.4″H
• Net Weight: 2.25 lbs.

FEATURES:

• Check Valve
• Installation Instructions

FILL RATES

12-VOLT COMPRESSOR

• 0.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 50 sec. (± 05 sec.)
  • 85 to 105 PSI 15 sec. (± 03 sec.)
  • 0 to 120 PSI 1 min. 05 sec. (± 05 sec.)
  • 90 to 120 PSI 21 sec. (± 03 sec.)
• 1.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 1 min. 40 sec. (± 10 sec.)
  • 85 to 105 PSI 30 sec. (± 05 sec.)
  • 0 to 120 PSI 2 min. 10 sec. (± 10 sec.)
  • 90 to 120 PSI 45 sec. (± 05 sec.)

24-VOLT COMPRESSOR

• 0.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 50 sec. (± 05 sec.)
  • 85 to 105 PSI 15 sec. (± 03 sec.)
  • 0 to 120 PSI 1 min. 03 sec. (± 05 sec.)
  • 90 to 120 PSI 20 sec. (± 03 sec.)
• 1.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 1 min. 40 sec. (± 10 sec.)
  • 85 to 105 PSI 30 sec. (± 05 sec.)
  • 0 to 120 PSI 2 min. 10 sec. (± 10 sec.)
  • 90 to 120 PSI 45 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

24-VOLT COMPRESSOR - Supply Voltage 28 Volts
