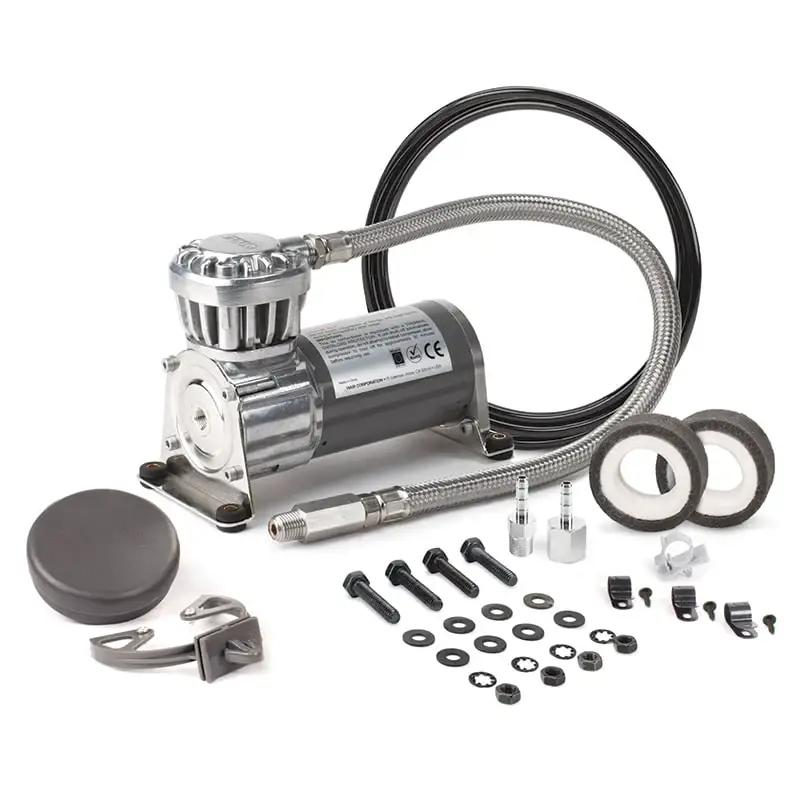

15010 | VIAIR 150C Industrial Grade Air Compressor 12 Volt | 150 PSI, Max Air Tank Size 1.0 Gallon

VIAIR’s 150 Industrial Grade compressor produces 1.37 CFM (12V) & 1.55 CFM (24V) with a 20% duty cycle and has a max operating pressure of 150 PSI, making it an ideal choice for those looking for a compact solution for light-duty applications.

RoHS and REACH compliant and CE certified, the 150C IG is equipped with a stainless steel braided leader hose and check valve assembly that eliminates the possibility of high amperage starts.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 15010, 15018
• CFM: 1.37 @ 0 PSI
• 12-Volt / 24-Volt
• Permanent Magnetic Motor
• Duty Cycle: 20% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 1.0 Gallon
• Max. 12V Amp Draw: 15-Amps
• Max. 24V Amp Draw: 8-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 6.9″L x 3.3″W x 5.0″H
• Net Weight: 4.10 lbs

FEATURES:

• Check Valve
• Vibration Isolators
• Mounting Hardware
• Installation Instructions

FILL RATES

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

• 0.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 35 sec. (± 05 sec.)
  • 85 to 105 PSI 10 sec. (± 03 sec.)
  • 0 to 120 PSI 1 min. 00 sec. (± 05 sec.)
  • 90 to 120 PSI 20 sec. (± 03 sec.)
• 1.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 1 min. 10 sec. (± 10 sec.)
  • 85 to 105 PSI 20 sec. (± 05 sec.)
  • 0 to 120 PSI 1 min. 55 sec. (± 10 sec.)
  • 90 to 120 PSI 40 sec. (± 05 sec.)

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

• 0.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 30 sec. (± 05 sec.)
  • 85 to 105 PSI 06 sec. (± 03 sec.)
  • 0 to 120 PSI 58 sec. (± 05 sec.)
  • 90 to 120 PSI 19 sec. (± 03 sec.)
• 1.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 1 min. 03 sec. (± 10 sec.)
  • 85 to 105 PSI 13 sec. (± 05 sec.)
  • 0 to 120 PSI 1 min. 45 sec. (± 10 sec.)
  • 90 to 120 PSI 35 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

24-VOLT COMPRESSOR - Supply Voltage 28 Volts
