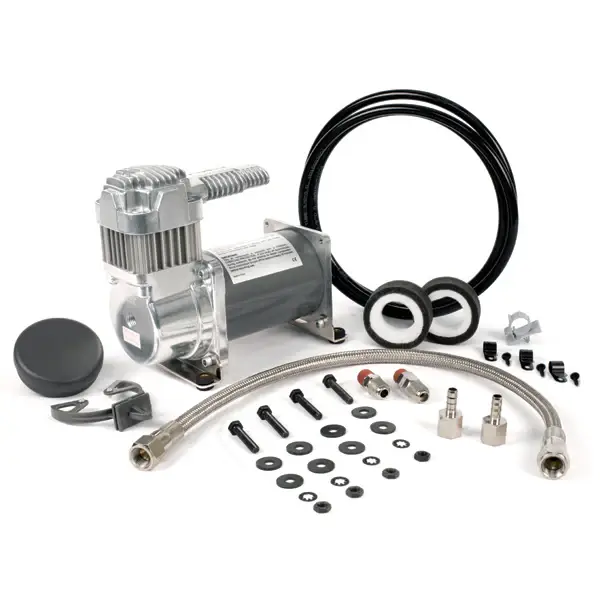

25050 | VIAIR 250C Industrial Grade Air Compressor 12 Volt | 150 PSI, Max Air Tank Size 2.5 Gallon

250C Industrial Grade Air Compressor 12 Volt | 150 PSI, Max Air Tank Size 2.5 Gallon | Universal - Check Specification Before Ordering

25050
Pricing: $330.33
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The 250 IG air compressors are medium-duty, 150 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation.

They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts.

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

  • PN: 25050, 25058
  • CFM: 0.88 @ 0 PSI
  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 2.5 Gallon
  • Max. 12V Amp Draw: 11-Amps
  • Max. 24V Amp Draw: 6-Amps
  • Ingress Protection Rating: IP67
  • Max. Ambient Temp: +158°F
  • Min. Ambient Temp: -40°F
  • Dimensions: 7.4″L x 3.9″W x 6.75″H
  • Net Weight: 6.75 lbs.

FEATURES:

  • Thermal Overload Protector
  • Vibration Isolators
  • Mounting Hardware
  • Heavy Duty 1/4″ NPT Check Valve
  • Stainless Steel Braided PTFE-Lined Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

FILL RATES

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

  • 1.0 GALLON TANK FILL RATE
    • 0 to 105 PSI 1 min. 50 sec. (± 10 sec.)
    • 85 to 105 PSI 27 sec. (± 05 sec.)
    • 0 to 145 PSI 2 min. 45 sec. (± 10 sec.)
    • 110 to 145 PSI 1 min. 05 sec. (± 05 sec.)
  • 2.5 GALLON TANK FILL RATE
    • 0 to 105 PSI 4 min. 45 sec. (± 10 sec.)
    • 85 to 105 PSI 1 min. 05 sec. (± 05 sec.)
    • 0 to 145 PSI 7 min. 05 sec. (± 15 sec.)
    • 110 to 145 PSI 2 min. 35 sec. (± 10 sec.)

24-VOLT COMPRESSOR - Supply Voltage 28 Volts

  • 1.0 GALLON TANK FILL RATE
    • 0 to 105 PSI 1 min. 45 sec. (± 10 sec.)
    • 85 to 105 PSI 26 sec. (± 05 sec.)
    • 0 to 145 PSI 2 min. 45 sec. (± 10 sec.)
    • 110 to 145 PSI 55 sec. (± 05 sec.)
  • 2.5 GALLON TANK FILL RATE
    • 0 to 105 PSI 4 min. 15 sec. (± 10 sec.)
    • 85 to 105 PSI 1 min. 00 sec. (± 05 sec.)
    • 0 to 145 PSI 7 min. 00 sec. (± 15 sec.)
    • 110 to 145 PSI 2 min. 15 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 0.88 6 0 25.0 6
10 0.81 7 1.0 22.6 7
20 0.78 7 2.0 21.0 8
30 0.73 8 3.0 19.0 9
40 0.67 9 4.0 17.3 10
50 0.65 9 5.0 15.4 10
60 0.60 10 6.0 14.2 11
70 0.55 10 7.0 12.5 11
80 0.52 10 8.0 11.3 11
90 0.49 10 9.0 10.3 11
100 0.45 11 10.0 8.7 11
110 0.41 11
120 0.39 11
130 0.36 11
140 0.32 11
150 0.29 10



24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI CFM A BAR LPM A
0 1.00 3 0 28.3 3
10 0.88 3 1.0 24.4 3
20 0.84 4 2.0 22.2 4
30 0.78 4 3.0 19.7 4
40 0.71 4 4.0 17.7 5
50 0.67 5 5.0 16.1 5
60 0.61 5 6.0 14.6 5
70 0.58 5 7.0 13.2 6
80 0.54 5 8.0 11.7 5
90 0.51 5 9.0 10.3 5
100 0.47 6 10.0 8.8 5
110 0.44 6
120 0.40 6
130 0.36 5
140 0.33 5
150 0.29 5

Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 6.8 lbs.
  • W3.9000” x H6.7500” x L7.4000”
