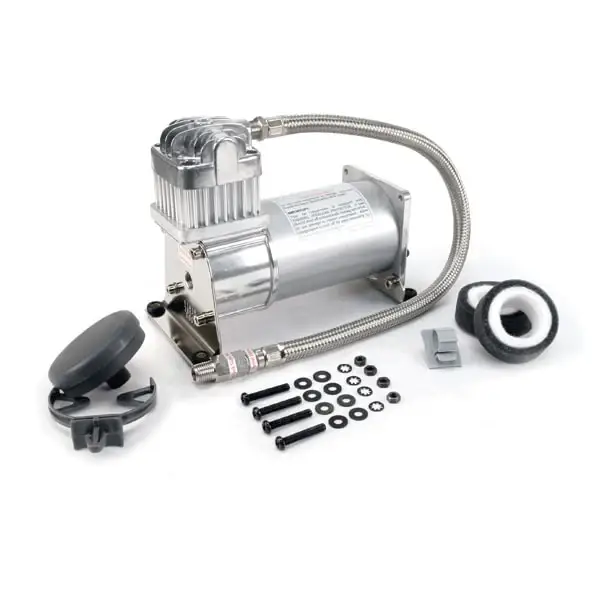

28021 | VIAIR 280C Air Compressor 12 Volt | 150 PSI, Max Air Tank Size 2.5 Gallon

The 280C air compressor has a max run time of 20 minutes and comes equipped with a stainless steel braided leader hose, check valve and remote air filter assembly. air filter assembly.

Mounting hardware is included.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 28021
• CFM: 1.59 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 30% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 2.5 Gallon
• Max. 12V Amp Draw: 19-Amps
• Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 7.8″L x 3.95″W x 6.35″H
• Net Weight: 6.95 lbs.

FEATURES:

• Check Valve
• Vibration Isolators
• Mounting Hardware
• Stainless Steel Braided Leader Hose
• Direct Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

FILL RATES

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

• 1.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 1 min. 10 sec. (± 05 sec.)
  • 85 to 105 PSI 20 sec. (± 03 sec.)
  • 0 to 145 PSI 1 min. 40 sec. (± 05 sec.)
  • 110 to 145 PSI 35 sec. (± 03 sec.)
• 2.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 2 min. 35 sec. (± 10 sec.)
  • 85 to 105 PSI 44 sec. (± 05 sec.)
  • 0 to 145 PSI 4 min. 30 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 36 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
