EVC84P | VIAIR Every Vehicle Carry 85P Digital Portable Compressor / Tire Inflator With Press-on Chuck | 60 PSI, 12 Volt Accessory Power Port Plug
Every Vehicle Carry 85P Digital Portable Compressor / Tire Inflator With Press-on Chuck | 60 PSI, 12 Volt Accessory Power Port Plug | Universal - Check Specification Before Ordering
EVC84P
Pricing:
$109.69
Description

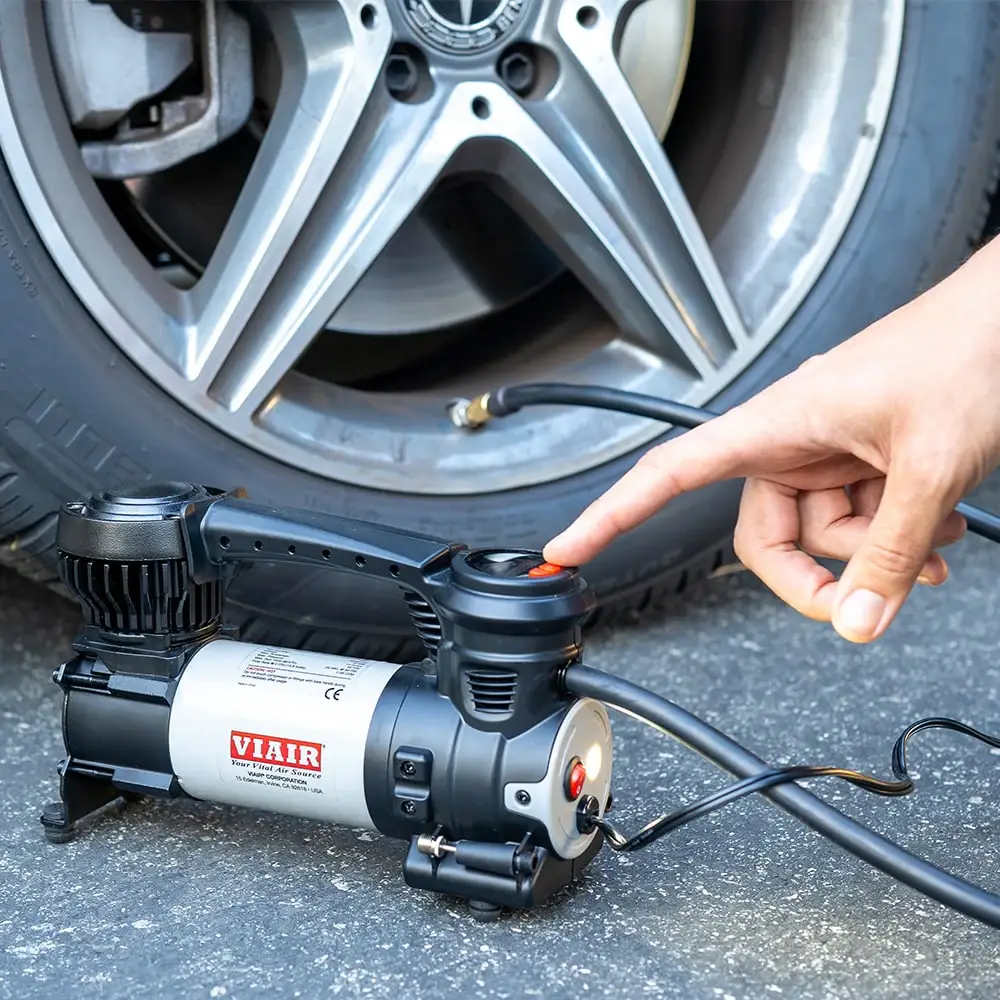

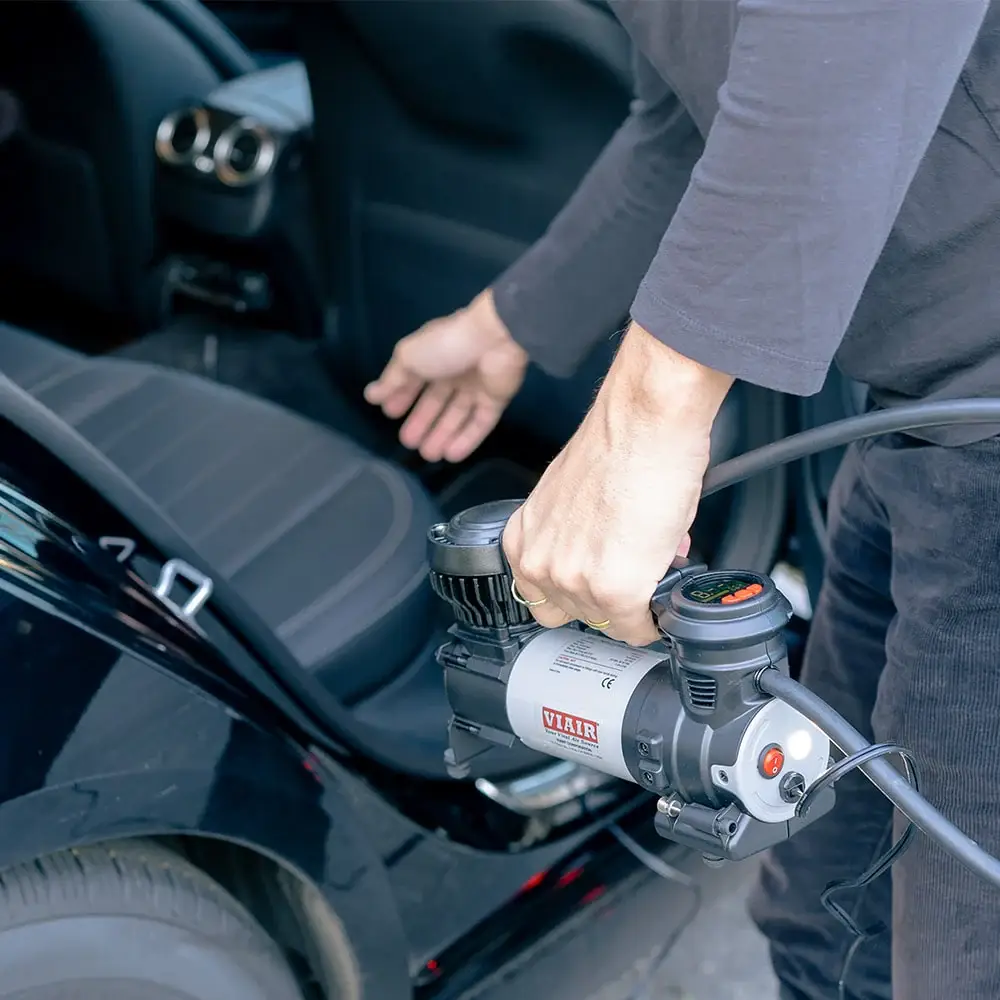

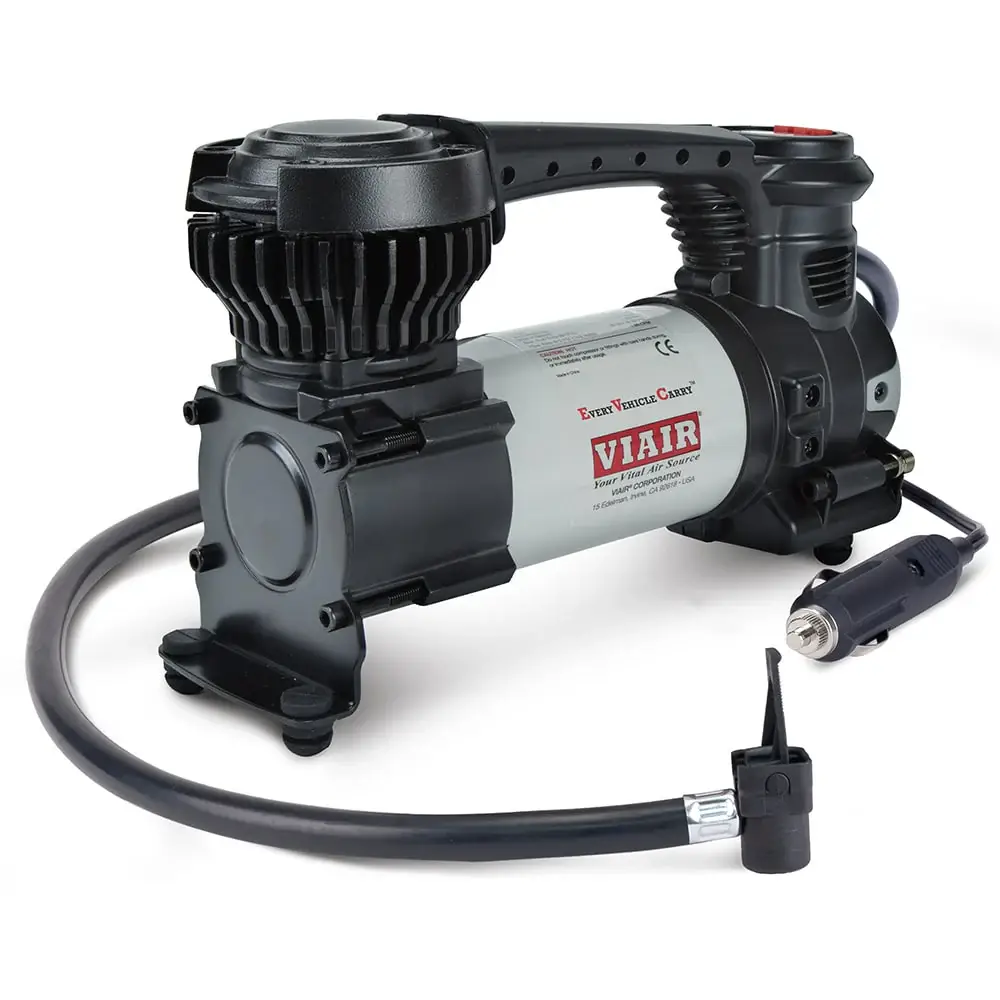

Introducing the Every Vehicle Carry™ 85P Digital compressor. Featuring a digital gauge and preset pressure with automatic shut-off, tire inflation is safer and more accurate than ever - all of it with VIAIR's legendary performance and reliability.
SPECIFICATIONS
- PN: EVC85P
- CFM: 1.77 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 20 min. @ 30 PSI
- Max. Working Pressure: 60 PSI
- Max. Amp/Watt Draw: 15A/180W
- Ingress Protection Rating: IP53
- Max. Ambient Temp: +158°F
- Min. Ambient Temp: -4°F
- Dimensions: 9.1″L x 3.1″W x 5.6″H
- Net Weight: 4.30 lbs.
- Power Cord Length: 10 ft.
- Air Hose Length: 3 ft.
FEATURES:

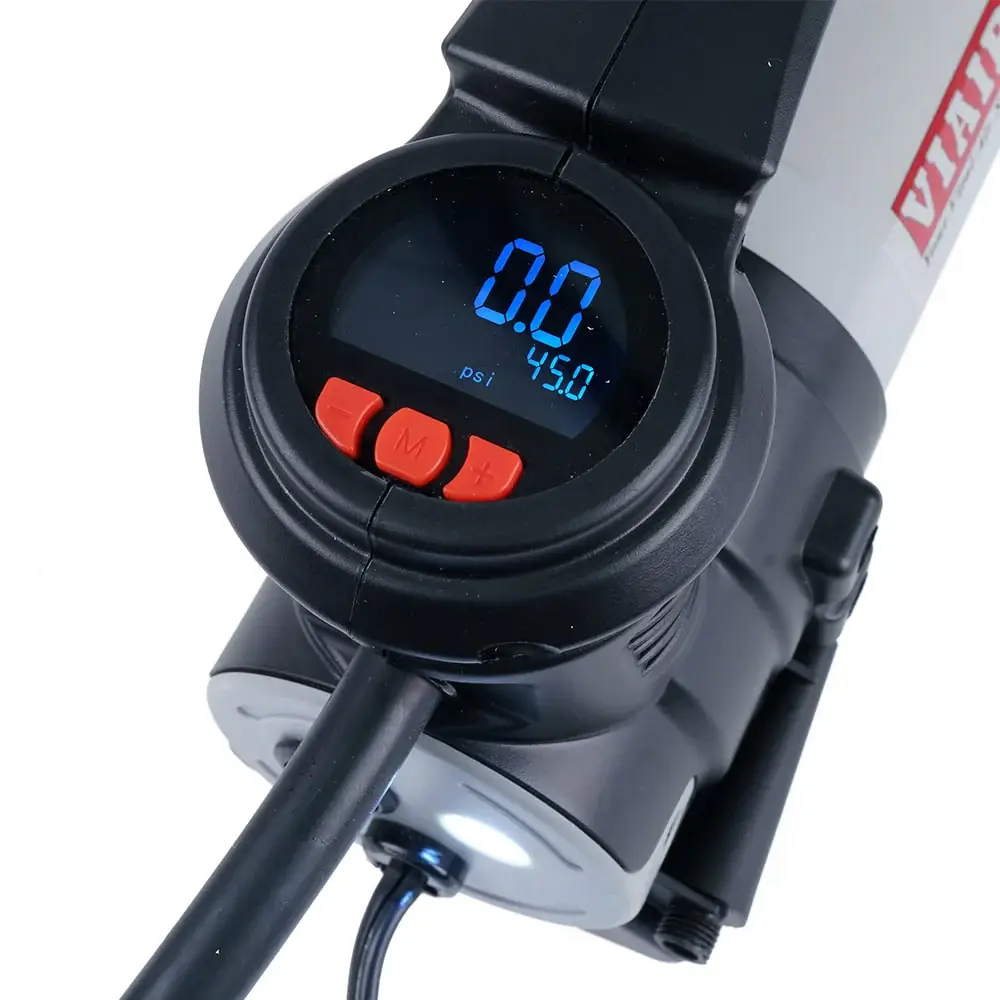

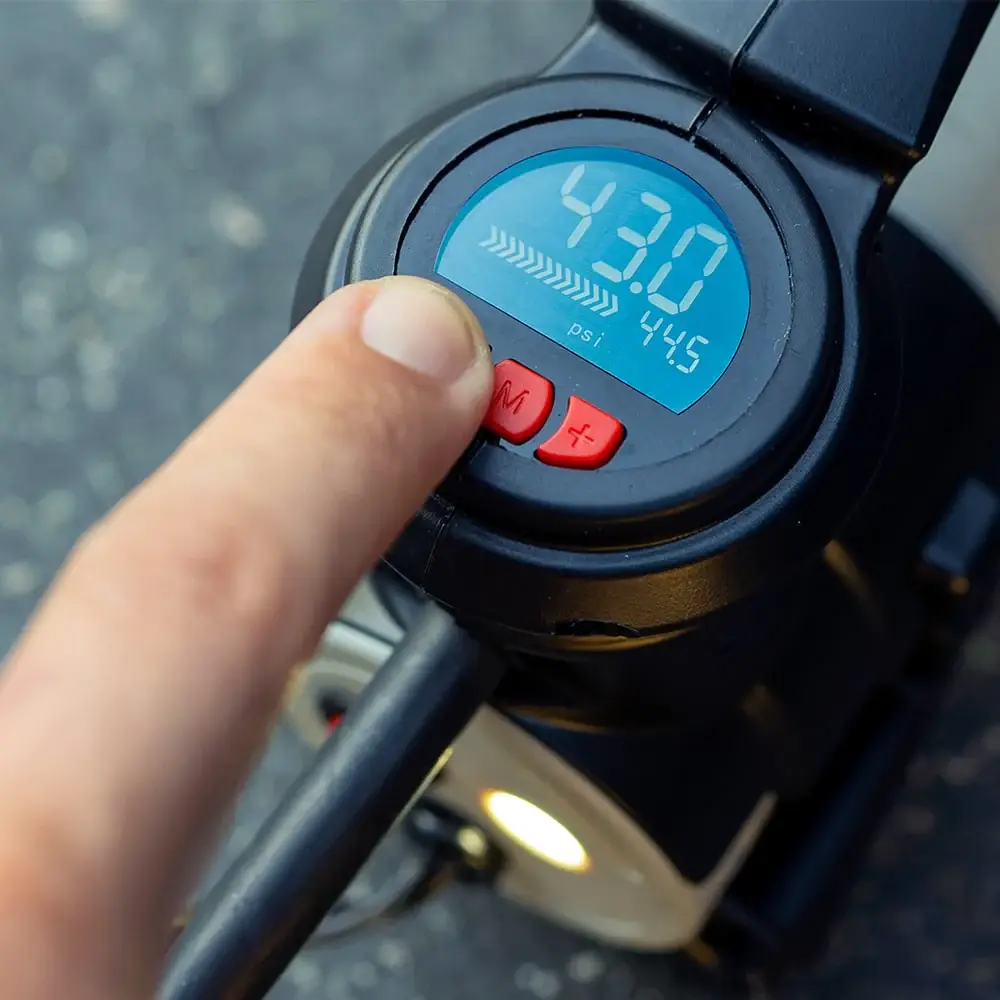

- Easy to read Digital Gauge
- Preset function and auto-shutoff
- LED work light/ Power Indicator

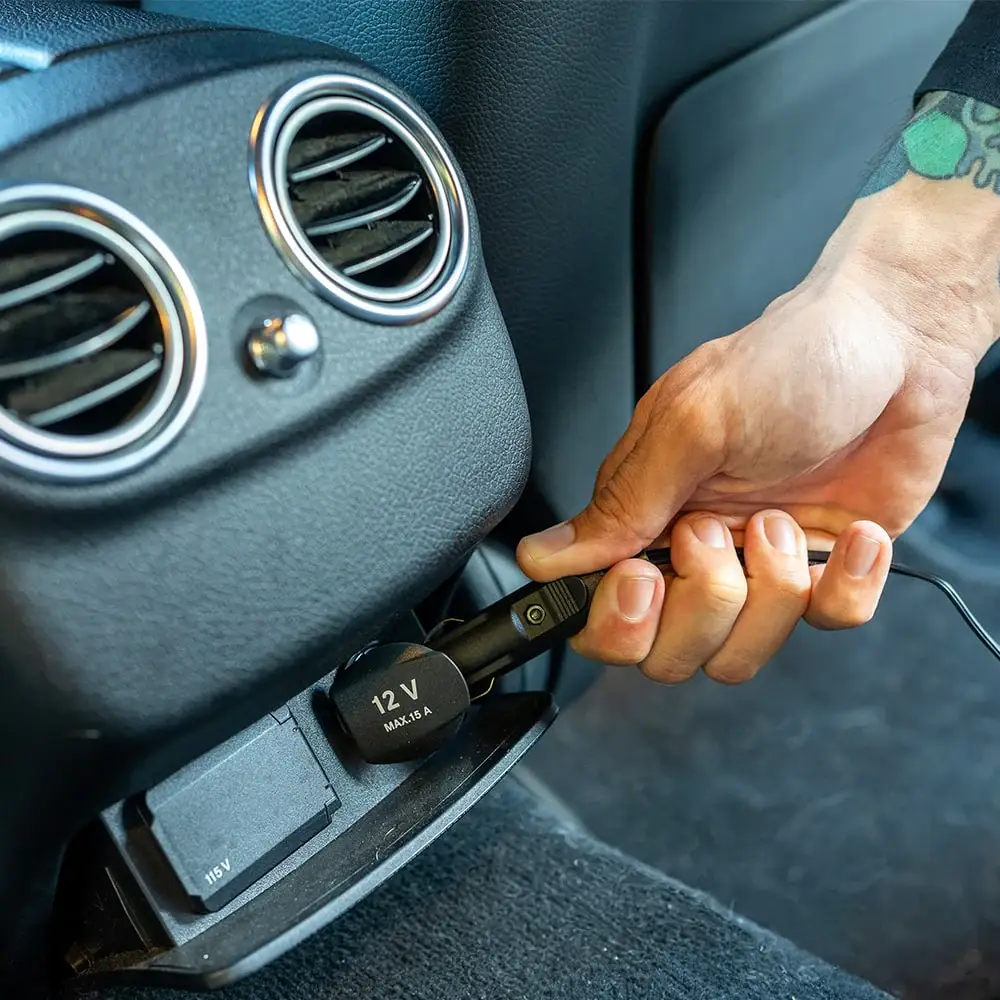

- Accessory Power plug w/ built-in 15A fuse
- Press-on Tire Chuck (PN 00084)
- Twist-on Tire Chuck (PN 00085)

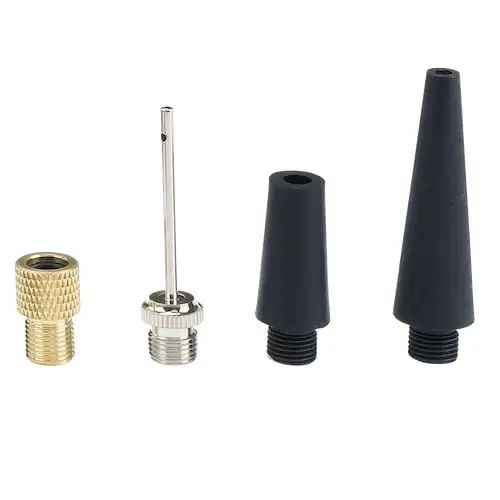

- 3pcs Inflation tips and a Presta valve adapter

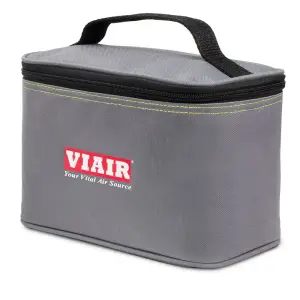

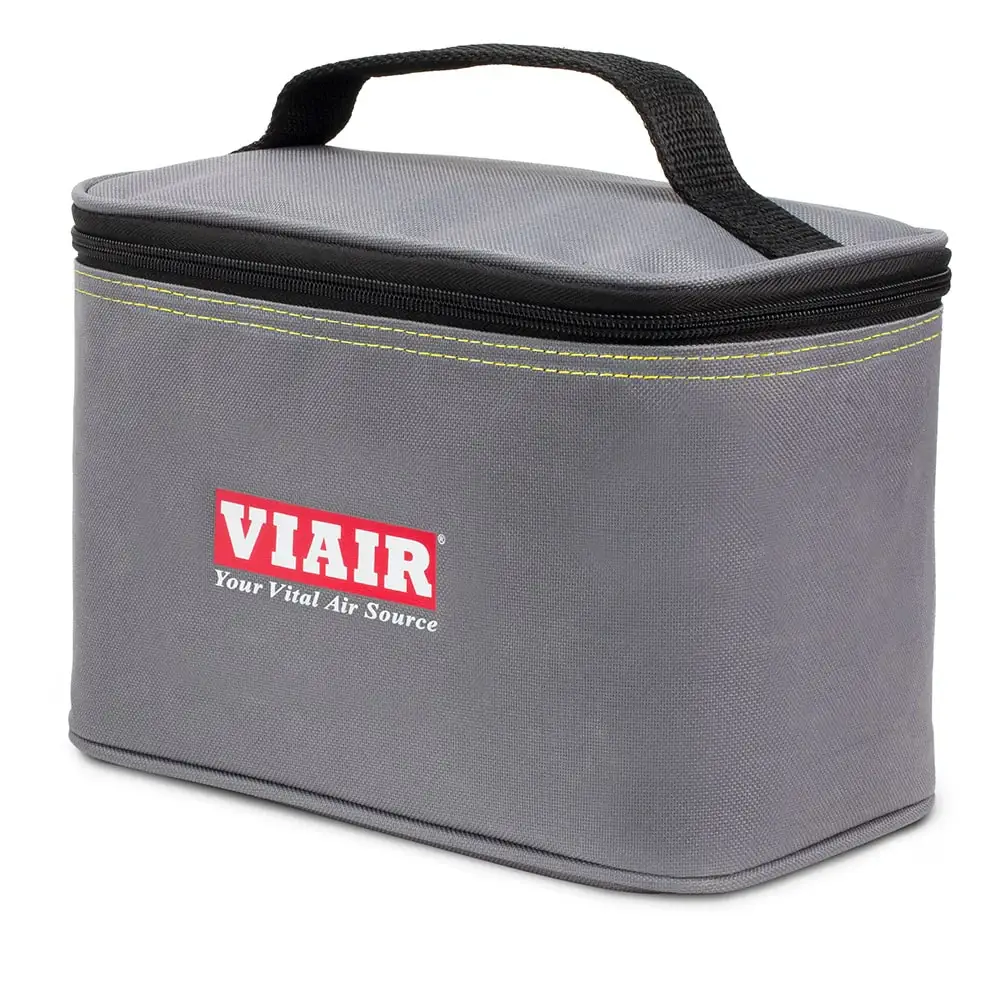

- Deluxe Carry Bag
FILL RATES
- 26.5" Tire Fill Rate (205/65 R16) FILL RATE
- 27 to 35 PSI 39 sec. (± 05 sec.)
- 35 to 44 PSI 48 sec. (± 05 sec.)
- 30" Tire Fill Rate (225/60 R18) FILL RATE
- 27 to 35 PSI 47 sec. (± 05 sec.)
- 35 to 44 PSI 54 sec. (± 05 sec.)
Performance
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.77 | 10 | 0 | 50.0 | 10 |
10 | 1.64 | 11 | 1.0 | 44.0 | 11 |
20 | 1.44 | 12 | 2.0 | 36.0 | 13 |
30 | 1.27 | 13 | 3.0 | 30.0 | 13 |
40 | 1.13 | 13 | 4.0 | 25.0 | 13 |
50 | 1.02 | 13 | 5.0 | 21.0 | 12 |
60 | 0.86 | 13 | 6.0 | 16.0 | 11 |
70 | 0.75 | 12 | 7.0 | 12.7 | 10 |
80 | 0.66 | 12 | 8.0 | 9.0 | 9 |
90 | 0.54 | 11 | |||
100 | 0.45 | 10 |
Application List
Universal - Check Specification Before Ordering
Component List
Compressor
Inflation Tips Kit
Carry Bag
Inflation Tips Kit
Carry Bag
Details
- EVC84P
- EVC84P
- VIAIR
- New
Categories
Shipping Information
- Item Requires Shipping
- 4.3 lbs.
- W3.1000” x H5.6000” x L9.1000”
