00075 | VIAIR Every Vehicle Carry 75P Portable Compressor / Tire Inflator With Press-on Chuck | 50 PSI, 12 Volt Accessory Power Port Plug
Every Vehicle Carry 75P Portable Compressor / Tire Inflator With Press-on Chuck | 50 PSI, 12 Volt Accessory Power Port Plug | Universal - Check Specification Before Ordering
00075
Pricing:
$78.33
Description
The Every Vehicle Carry™ 75P is a sleek, yet compact portable tire inflator ideal for sedans and hatchbacks. The compressor has a max amp draw of 10A/120W, making it compatible for any compact passenger vehicle on the road. Tire pressure can be monitored using the gauge on the top of the unit. It comes in a steel carrying case with a durable strap.
SPECIFICATIONS
- PN: 00075
- CFM: 1.13 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 50 PSI
- Max. Working Pressure: 50 PSI
- Max. Amp/Watt Draw: 10A/120W
- Ingress Protection Rating: IP54
- Max. Ambient Temp: +158°F
- Min. Ambient Temp: -4°F
- Dimensions: 9.64″L x 4.33″W x 9.68″H
- Net Weight: 4.44 lbs.
- Power Cord Length: 10 ft.
- Air Hose Length: 2 ft.

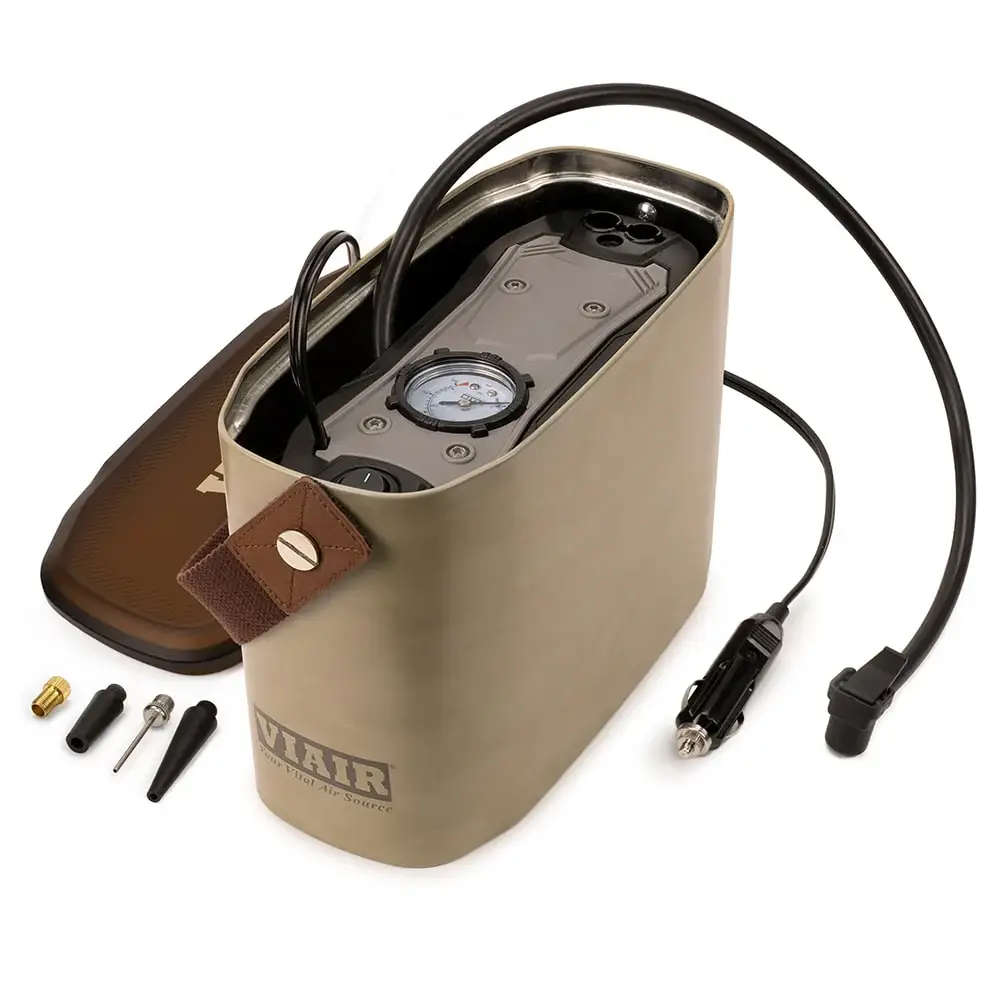

FEATURES:
- 60 PSI Gauge
- Vibration Isolators
- Press-On Tire Chuck
- Integrated Metal Storage Case
- Durable Leather Tipped Handle
- Accessory Power Plug
- 3 pc. Inflation Tips Kit
- Presta Valve Adaptor
PLEASE NOTE:
- Always check your vehicle’s power port rating for maximum amperage before ordering.
- The 75P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor(Included).
- The 75P does not work with the VIAIR Winterization Kit (P/N 90145).
FILL RATES
- 195/70R14 FILL RATE
- 27 to 35 PSI 1 min. 04 sec. (± 05 sec.)
- 35 to 44 PSI 1 min. 22 sec. (± 05 sec.)
- 205/65R16 FILL RATE
- 27 to 35 PSI 1 min. 07 sec. (± 05 sec.)
- 35 to 44 PSI 1 min. 29 sec. (± 05 sec.)
Performance
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.13 | 6 | 0 | 32.0 | 6 |
10 | 0.96 | 7 | 1.0 | 25.5 | 8 |
20 | 0.85 | 8 | 2.0 | 21.0 | 9 |
30 | 0.72 | 9 | 3.0 | 17.5 | 9 |
40 | 0.64 | 9 | 4.0 | 13.3 | 9 |
50 | 0.54 | 9 | 5.0 | 11.0 | 8 |
60 | 0.47 | 9 | 6.0 | 9.1 | 8 |
70 | 0.41 | 8 | 7.0 | 7.8 | 7 |
80 | 0.35 | 8 | |||
90 | 0.32 | 8 | |||
100 | 0.27 | 7 |
Application List
Universal - Check Specification Before Ordering
Details
- 00075
- 00075
- VIAIR
- New
Categories
Shipping Information
- Item Requires Shipping
- 4.4 lbs.
- W4.3300” x H9.6800” x L9.6400”
