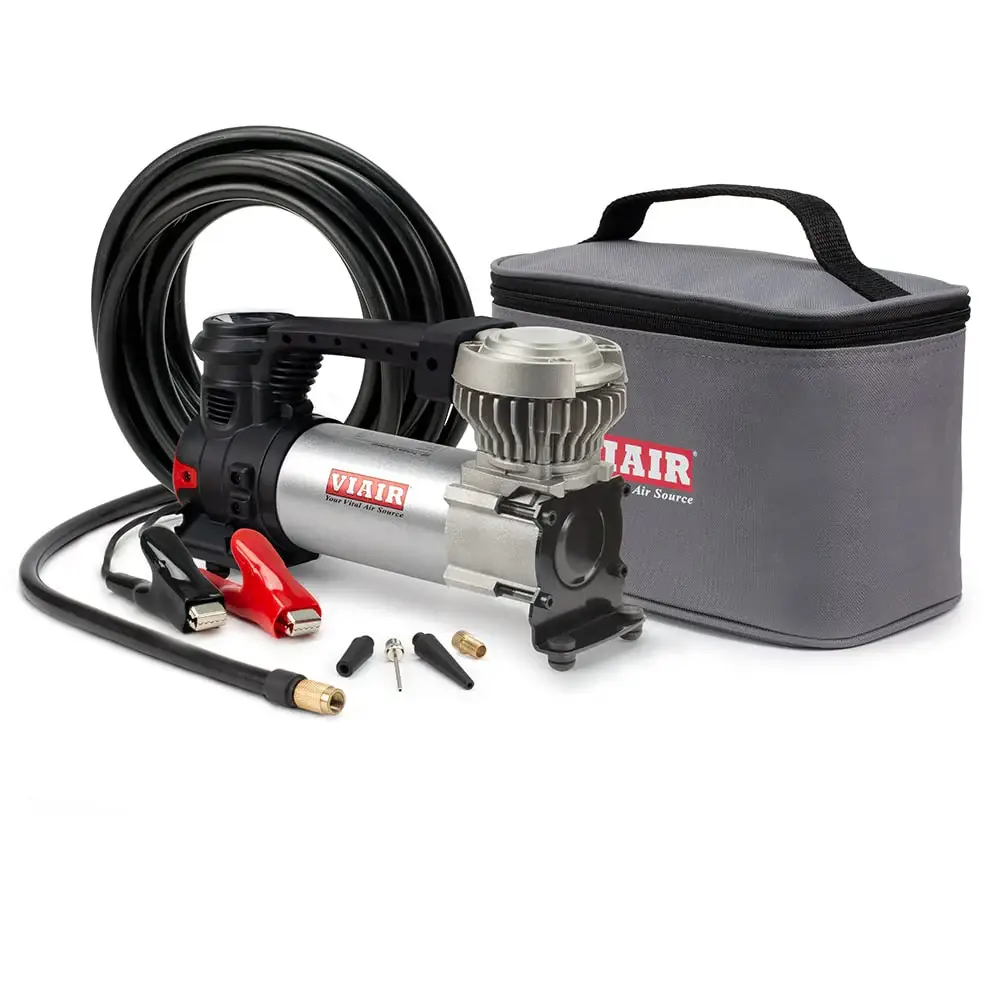

00089 | VIAIR 89P RVS Portable Compressor / Tire Inflator With Twist-on Chuck | 120 PSI, 12 Volt Power Battery Clamps, For Class B Tires

89P RVS Portable Compressor / Tire Inflator With Twist-on Chuck | 120 PSI, 12 Volt Power Battery Clamps, For Class B Tires | Universal - Check Specification Before Ordering

00089
Pricing: $111.93
Qty:

Description

89P-RVS is a compact 12-volt portable tire inflator specifically designed for Class B RVs. This essential RV tire inflator will fill most Class B tires from 80 to 90 PSI in less than 2 minutes. The 89P-RVS features a new and improved longer air hose to reach your Class B tires.

SPECIFICATIONS

  • PN: 00089
  • CFM: 1.97 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 25 min. @ 30 PSI
  • Max. Working Pressure: 120 PSI
  • Max. Amp Draw: 20-Amps
  • Max. Tire Size: 245/70R19.5
  • Ingress Protection Rating: IP53
  • Max. Ambient Temp: +158°F
  • Min. Ambient Temp: -4°F
  • Dimensions: 9.8″L x 3.2″W x 5.6″H
  • Net Weight: 4.75lbs.
  • Power Cord Length: 10ft.
  • Air Hose Length: 20ft.

FEATURES:

  • 120 PSI Pressure Gauge
  • LED Work Light / Power Indicator
  • Dual Battery Clamps
  • Solid Brass Twist-on Tire Chuck
  • 3pc. Inflation Tips (Mounted above rear compressor feet)
  • Presta Valve Adaptor
  • Deluxe Carry Bag

PLEASE NOTE:

  • Always check your vehicle’s power port rating for maximum amperage before ordering.
  • The 88P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor.
  • The 88P does not work with the VIAIR Winterization Kit (P/N 90145).

FILL RATES

  • 33″ RV TIRE (245/70R19.5) FILL RATE
    • 50 to 60 PSI 1 min. 11 sec. (±05 sec.)
    • 60 to 80 PSI 3 min. 28 sec. (±10 sec.)
    • 80 to 90 PSI 1 min. 40 sec. (±05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LMP A
0 1.97 14 0 56.0 14
10 1.82 15 1.0 49.0 15
20 1.62 16 2.0 41.0 17
30 1.45 17 3.0 36.0 17
40 1.32 17 4.0 31.0 18
50 1.18 18 5.0 26.0 17
60 1.05 18 6.0 21.0 16
70 0.94 18 7.0 17.0 15
80 0.83 17 8.0 14.0 14
90 0.70 16
100 0.63 16
110 0.54 15
120 0.45 14

Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 4.8 lbs.
  • W3.2000” x H5.6000” x L9.8000”
