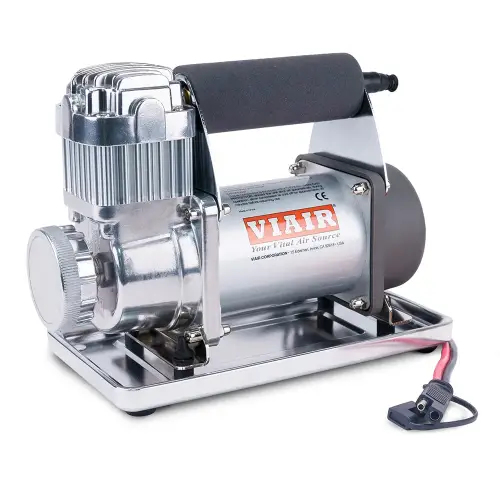

30032 | VIAIR 300P SXS Portable Compressor / Tire Inflator With Inline 60 PSI Gauge Air Hose | 150 PSI, 12 Volt Power Battery Clamps, 2-Pin SAE Power Connector

300P SXS is an upgraded version of our regular 300P, equipped with an SAE power cord that allows you to use different attachments to power the compressor. It's tailored for off-road, comes with mounting straps for UTVs and can inflate tires up to 33". It's a great choice for new and experienced off-roaders looking for a fast and dependable unit that will not break the bank.

SPECIFICATIONS

• PN: 30032
• CFM: 2.30 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 30-Amps
• Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -4°F
• Dimensions: 9″L x 4.9″W x 7.5″H
• Net Weight: 8.70 lbs.
• Power Cord Length: 8 ft.
• Air Hose Length: 25 ft.

FEATURES:

• Thermal Overload Protector

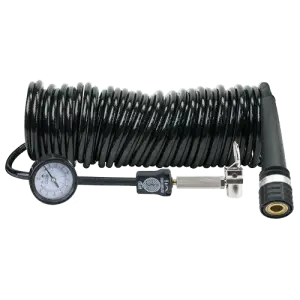

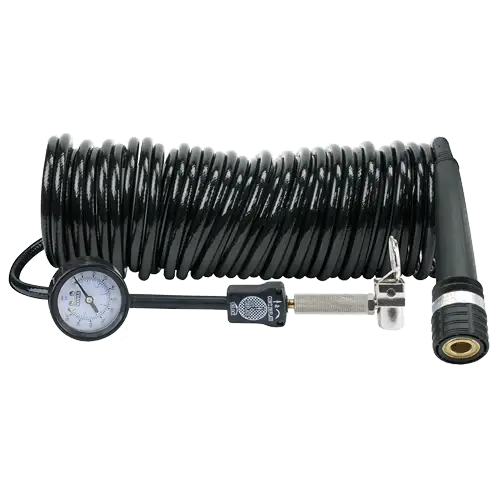

• 5-in-1 Inflator/Deflator Air Hose with Inline 60 PSI Gauge
• Aluminum Sand Tray with Vibration Isolators
• Permanent 2-pin SAE for battery with 40-amp inline fuse holder

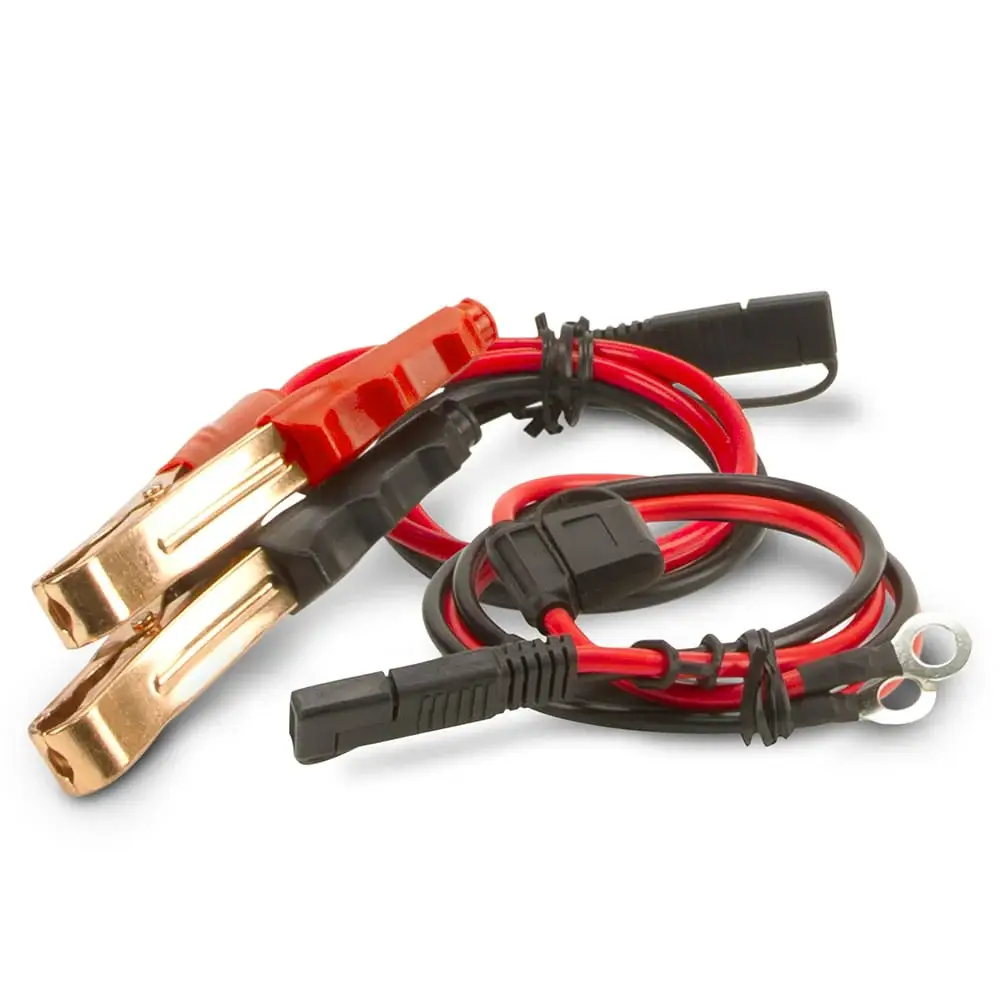

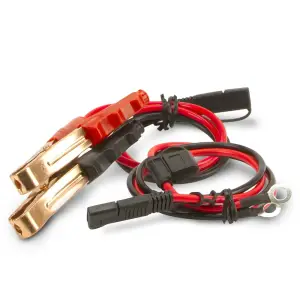

• Dual Battery Clamps with 2-Pin SAE Connector

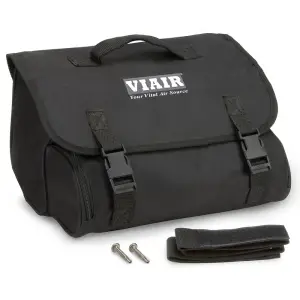

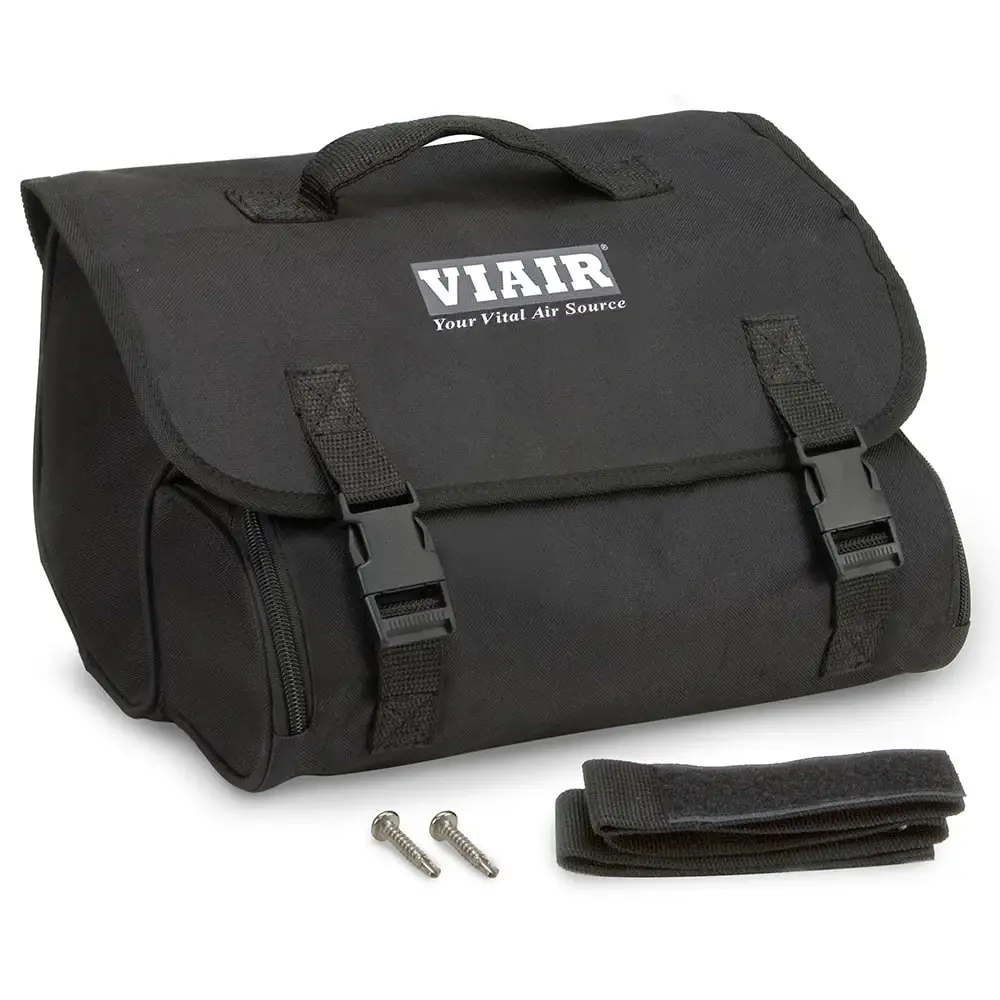

• Heavy Duty Carry Bag with Straps and Hardware for Mounting

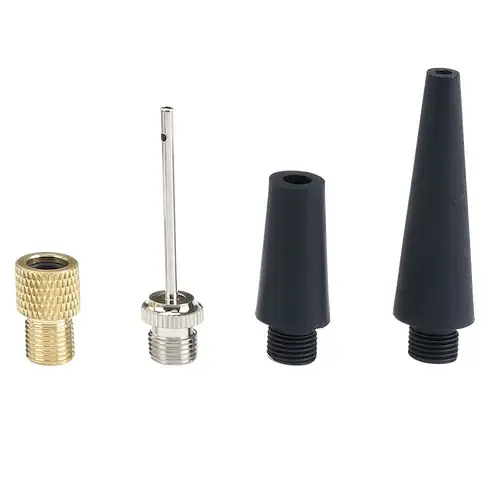

• 3 pc. Inflation Tips Kit
• Presta Valve Adaptor

PLEASE NOTE:

• The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use.
• Never allow the hose to come into contact with the head of the compressor during use (melting hazard).
• The use of the included air hose is not recommended in sub zero or freezing conditions.
• The 300P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor.
• The 300P does not work with the VIAIR Winterization Kit (P/N 90145).

FILL RATES

• 31″ X 10.5″ FILL RATE
  • 0 to 30 PSI 3 min. 25 sec. (± 10 sec.)
  • 15 to 30 PSI 2 min. 00 sec. (± 05 sec.)
• 33″ X 12.5″ FILL RATE
  • 0 to 30 PSI 5 min. 00 sec. (± 10 sec.)
  • 15 to 40 PSI 2 min. 45 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
