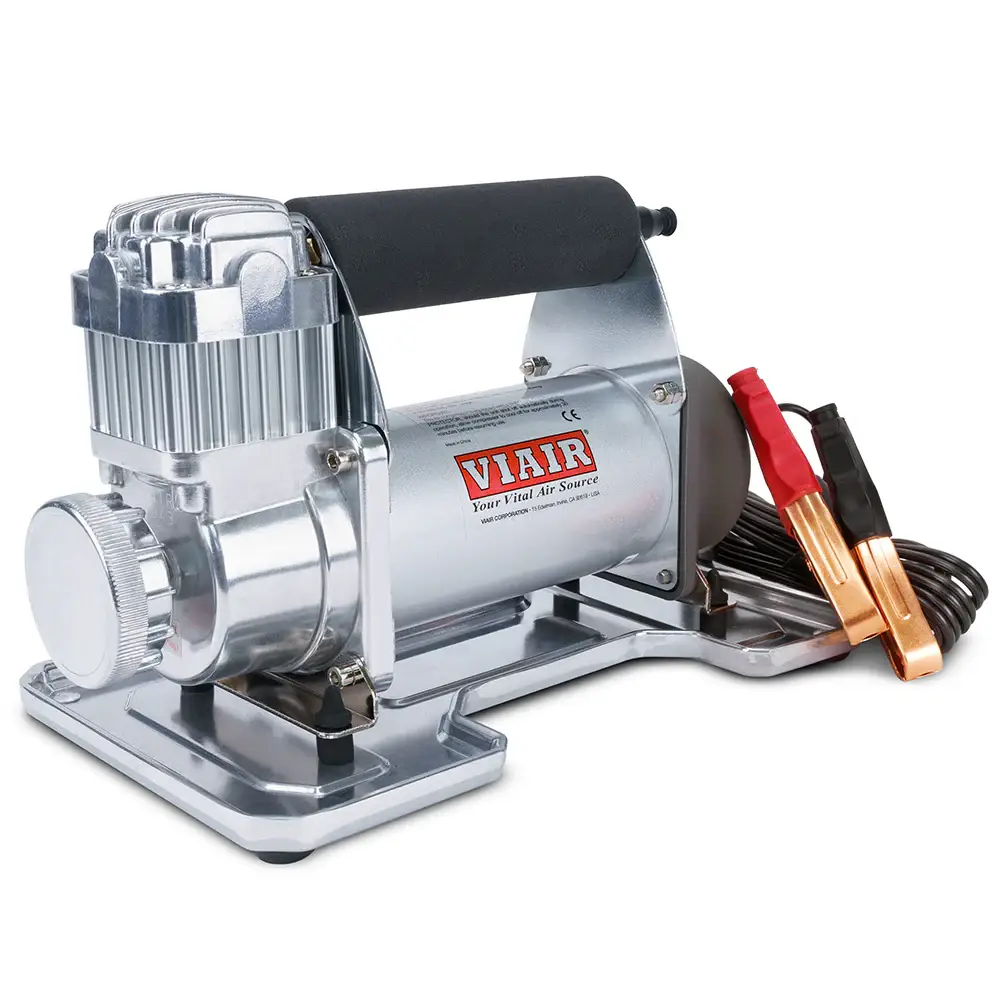

40050 | VIAIR 400P RVS Portable Compressor / Tire Inflator With Inline 100 PSI Gauge Air Hose | 150 PSI, 24 Volt Power Battery Clamps

Fill your car, truck, SUV, or off-road vehicles quickly and easily with the VIAIR portable compressor. With its powerful direct-drive motor, maintenance-free operation, a full hour of runtime, and market-leading IP54 dust and water resistance rating, the 400P Portable Compressor performs perfectly in even the toughest conditions.

SPECIFICATIONS

• PN: 40043, 40050
• CFM: 2.30 @ 0 PSI
• 12-Volt / 24-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. 12V Amp Draw: 30-Amps
• Max. 24V Amp Draw: 15-Amps
• Ingress Protection Rating: IP54
• Dimensions: 10.9"L x 5.8"W x 7.5"H
• Net Weight: 10.40 lbs.
• Power Cord Length: 8 ft.
• Air Hose Length: 25 ft.

FEATURES:

• Thermal Overload Protector
• 5-in-1 Inflator/Deflator Air Hose
  with Inline 100 PSI Gauge
• I-beam Sand Tray (PN 40043)
• Diamond-Plate Sand Tray (PN 40050)
• Deluxe Dual Compartment Carry Bag
• 40-amp Inline Fuse Holder
• Dual Battery Clamps
• 3 pc. Inflation Tips Kit
• Presta Valve Adaptor

PLEASE NOTE:

• The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use.
• Never allow the hose to come into contact with the head of the compressor during use (melting hazard).
• The use of the included air hose is not recommended in sub zero or freezing conditions.
• The 400P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor.
• The 400P does not work with the VIAIR Winterization Kit (P/N 90145).

FILL RATES

12-VOLT COMPRESSOR

• 31″ X 10.5″ FILL RATE
  • 0 to 30 PSI 3 min. 00 sec. (± 10 sec.)
  • 15 to 30 PSI 1 min. 35 sec. (± 05 sec.)
• 33″ X 12.5″ FILL RATE
  • 0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
  • 15 to 30 PSI 2 min. 05 sec. (± 05 sec.)
• 35″ X 12.5″ 'FILL RATE
  • 0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
  • 15 to 30 PSI 2 min. 45 sec. (± 05 sec.)

24-VOLT COMPRESSOR

• 31″ X 10.5″ FILL RATE
  • 0 to 30 PSI 2 min. 50 sec. (± 05 sec.)
  • 15 to 30 PSI 1 min. 25 sec. (± 05 sec.)
• 33″ X 12.5″ FILL RATE
  • 0 to 30 PSI 4 min. 00 sec. (± 10 sec.)
  • 15 to 30 PSI 2 min. 00 sec. (± 05 sec.)
• 35″ X 12.5″ FILL RATE
  • 0 to 30 PSI 5 min. 05 sec. (± 15 sec.)
  • 15 to 30 PSI 2 min. 40 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

24-VOLT COMPRESSOR - Supply Voltage 28 Volts
