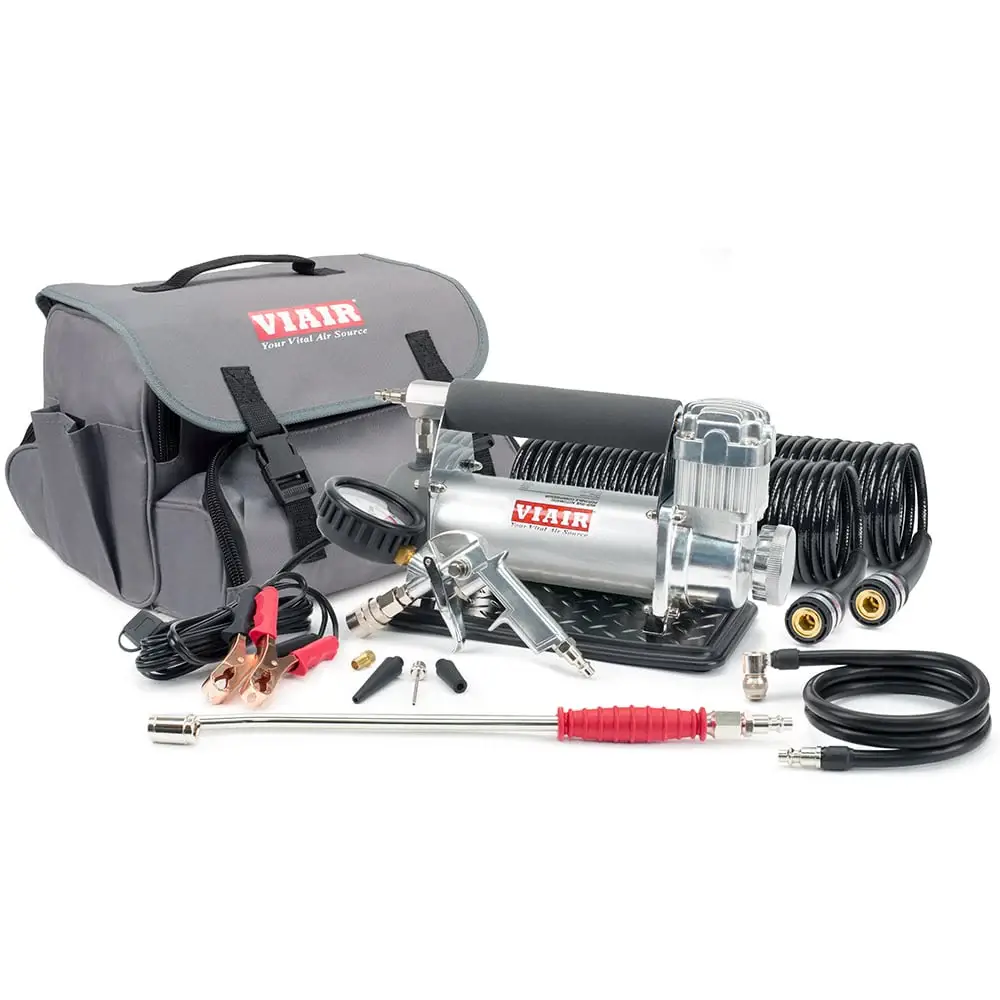

45057 | VIAIR 450P RVS Portable Compressor / Tire Inflator With Inline 160 PSI Gauge Inflation Gun | 150 PSI, 12 Volt Power Battery Clamps

450P-RVS Automatic 12-volt portable tire inflator is for use with Class A and smaller RV’s.

This 100% duty cycle unit is capable of pressures up to 150 PSI and can be operated for up to 1 hour at a time before needing to be rested (at up to 100 PSI).

SPECIFICATIONS

• PN: 45057
• CFM: 1.80 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 23-Amps
• Max. Tire Size: 275/80R22.5
• Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -4°F
• Dimensions: 12.4″L x 5.8″W x 7.5″H
• Net Weight: 13.05lbs.
• Power Cord Length: 8ft.
• Primary Air Hose Length: 30ft.
• Extension Air Hose Length: 30ft.
• 90-Degree Twist-On Chuck Air Hose Length: 40in.

FEATURES:

• Thermal Overload Protector
• Automatic Shut-Off Function
• Primary & Extension Air Hoses
• Vibration-Resistant Diamond-Plate Sand Tray
• Heat Shielded Quick Connect Coupling
• Gas Station-Style Tire Inflation Gun with 160 PSI Inline Gauge
• Heavy Duty Dual Battery Clamps with Inline Fuse
• 45-Degree Extended Reach Chuck (For Dual Rear Wheels)
• 90-Degree Twist-On Chuck
• Heavy Duty Deluxe Carry Bag
• 3pc. Inflation Tips Kit
• Presta Valve Adaptor

PLEASE NOTE:

• The 450P-RVS does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor.

FILL RATES

• 33″ RV TIRE (245/70 R19.5) FILL RATE
  • 50 to 60 PSI 1 min. 03 sec. (±05 sec.)
  • 60 to 80 PSI 2 min. 15 sec. (±10 sec.)
  • 80 to 90 PSI 1 min 20 sec. (±05 sec.)
  • 90 to 110 PSI 2 min. 55 sec. (±10 sec.)
• 37″ RV TIRE (255/70 R22.5) FILL RATE
  • 50 to 60 PSI 1 min. 30 sec. (±05 sec.)
  • 60 to 80 PSI 3 min. 35 sec. (±10 sec.)
  • 80 to 90 PSI 2 min 10 sec. (±10 sec.)
  • 90 to 110 PSI 4 min. 30 sec. (±10 sec.)
  • 110 to 120 PSI 2 min. 32 sec. (±10 sec.)
• 40″ RV TIRES (275/80 R22.5) FILL RATE
  • 50 to 60 PSI 2 min. 05 sec. (±10 sec.)
  • 60 to 80 PSI 5 min. 35 sec. (±10 sec.)
  • 80 to 90 PSI 3 min 00 sec. (±10 sec.)
  • 90 to 110 PSI 3 min. 18 sec. (±10 sec.)
  • 110 to 120 PSI 3 min. 30 sec. (±10 sec.)

Performance
