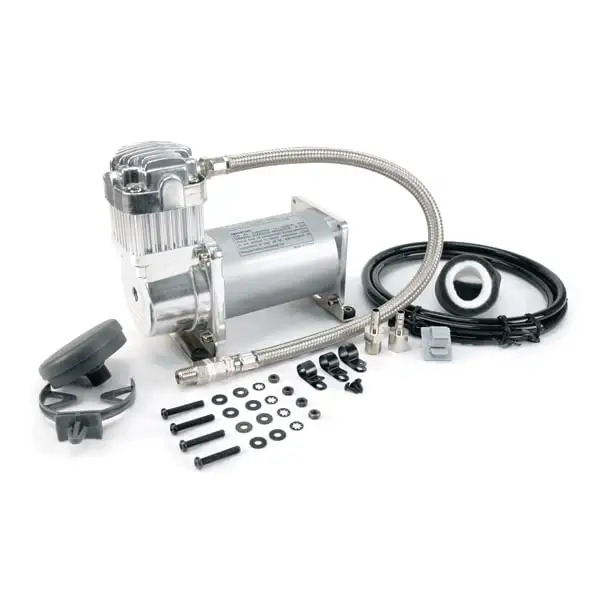

32530 | VIAIR 325C Compressor / Tire Inflator In Silver 12 Volt | 150 PSI, Max Air Tank Size 5.0 Gallon

325C Compressor / Tire Inflator In Silver 12 Volt | 150 PSI, Max Air Tank Size 5.0 Gallon | Universal - Check Specification Before Ordering

32530
Pricing: $327.53
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The 325C air compressor is used in a variety of applications from industrial to motorsports. It has a max run time of 20 minutes and comes in 4 different configurations to fit the needs of every customer.

SPECIFICATIONS

  • PN: 32530, 32533, 32534, 32538
  • CFM: 1.59 @ 0 PSI
  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 22-Amps
  • Max. 24V Amp Draw: 13-Amps
  • 1/4″ NPT Intake Port
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 8″L x 4″W x 6.75″H
  • Net Weight: 7.5 lbs.

FEATURES:

  • Thermal Overload Protector
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

PLEASE NOTE:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

12-VOLT COMPRESSOR

  • 2.5 GALLON TANK FILL RATE
    • 0 to 105 PSI 2 min. 35 sec. (± 10 sec.)
    • 85 to 105 PSI 40 sec. (± 05 sec.)
    • 0 to 145 PSI 4 min. 15 sec. (± 10 sec.)
    • 110 to 145 PSI 1 min. 25 sec. (± 05 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 105 PSI 5 min. 15 sec. (± 10 sec.)
    • 85 to 105 PSI 1 min. 25 sec. (± 05 sec.)
    • 0 to 145 PSI 8 min. 45 sec. (± 15 sec.)
    • 110 to 145 PSI 2 min. 55 sec. (± 10 sec.)

24-VOLT COMPRESSOR

  • 2.5 GALLON TANK FILL RATE
    • 0 to 105 PSI 2 min. 25 sec. (± 10 sec.)
    • 85 to 105 PSI 35 sec. (± 05 sec.)
    • 0 to 145 PSI 3 min. 30 sec. (± 10 sec.)
    • 110 to 145 PSI 1 min. 10 sec. (± 05 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 105 PSI 4 min. 45 sec. (± 10 sec.)
    • 85 to 105 PSI 1 min. 05 sec. (± 05 sec.)
    • 0 to 145 PSI 7 min. 25 sec. (± 15 sec.)
    • 110 to 145 PSI 2 min. 25 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.59 14 0 45.0 14
10 1.40 16 1.0 37.6 16
20 1.24 16 2.0 34.1 18
30 1.20 18 3.0 32.3 18
40 1.17 18 4.0 29.1 20
50 1.08 19 5.0 26.0 21
60 1.01 20 6.0 23.7 21
70 0.93 21 7.0 21.5 21
80 0.87 21 8.0 19.7 21
90 0.82 21 9.0 18.0 21
100 0.77 21 10.0 16.5 21
110 0.72 21
120 0.68 21
130 0.64 21
140 0.60 21
150 0.57 21



24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI CFM A BAR LPM A
0 1.80 7 0 51.0 7
10 1.68 8 1.0 44.1 8
20 1.41 9 2.0 38.7 10
30 1.36 10 3.0 36.5 10
40 1.31 10 4.0 34.3 11
50 1.25 10 5.0 32.1 11
60 1.20 11 6.0 30.0 11
70 1.15 11 7.0 28.0 12
80 1.09 11 8.0 26.4 13
90 1.04 11 9.0 24.6 12
100 0.99 12 10.0 22.5 12
110 0.95 13
120 0.92 13
130 0.87 12
140 0.81 12
150 0.78 12

Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 7.5 lbs.
  • W4.0000” x H6.7500” x L8.0000”
