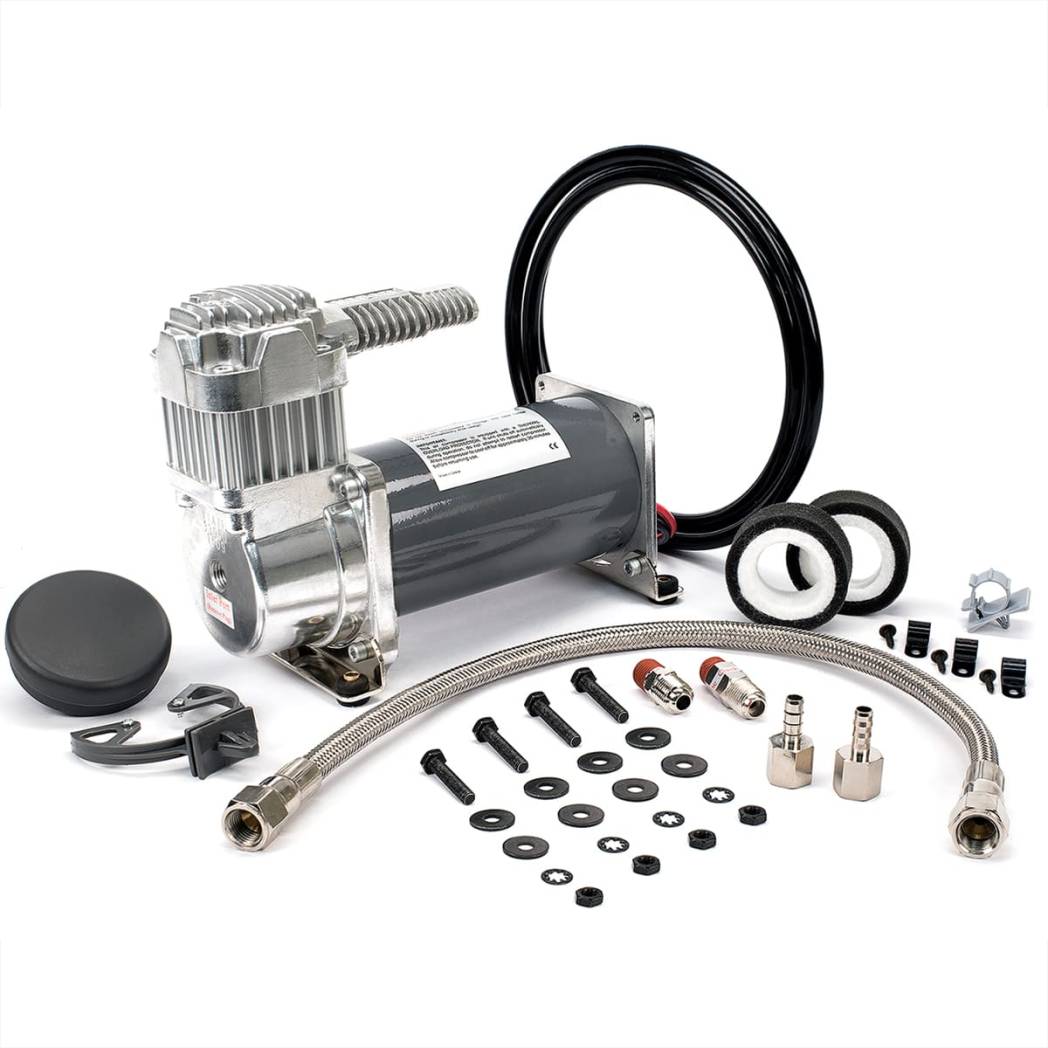

33038 | VIAIR 330C Hyper-Grade Industrial Compressor / Tire Inflator In Silver 24 Volt | 200 PSI, Max Air Tank Size 5.0 Gallon

330C Hyper-Grade Industrial Compressor / Tire Inflator In Silver 24 Volt | 200 PSI, Max Air Tank Size 5.0 Gallon | Universal - Check Specification Before Ordering

33038
Pricing: $507.50
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The 330 Hyper Grade air compressors are medium-duty, 200 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation.

They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts.

SPECIFICATIONS

  • PN: 33035, 33038
  • CFM: 1.43 @ 0 PSI
  • 12-Volt or 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Duty Cycle: 50% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 16-Amps
  • Max. 24V Amp Draw: 10-Amps
  • Ingress Protection Rating: IP67
  • Max. Ambient Temp: +158°F
  • Min. Ambient Temp: -40°F
  • Dimensions: 9″L x 4″W x 6.75″H
  • Net Weight: 8.25 lbs.

FEATURES:

  • Thermal Overload Protector
  • Vibration Isolators
  • Mounting Hardware
  • Heavy Duty 1/4″ NPT Check Valve
  • Stainless Steel Braided
    PTFE-Lined Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

PLEASE NOTE:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

12-VOLT COMPRESSOR

  • 2.5 GALLON TANK FILL RATE
    • 0 to 145 PSI 5 min. 10 sec. (± 15 sec.)
    • 110 to 145 PSI 1 min. 40 sec. (± 10 sec.)
    • 0 to 200 PSI 8 min. 30 sec. (± 15 sec.)
    • 165 to 200 PSI 2 min. 30 sec. (± 10 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 145 PSI 10 min. 40 sec. (± 15 sec.)
    • 110 to 145 PSI 3 min. 25 sec. (± 05 sec.)
    • 0 to 200 PSI 17 min. 30 sec. (± 15 sec.)
    • 165 to 200 PSI 4 min. 32 sec. (± 10 sec.)

24-VOLT COMPRESSOR

  • 2.5 GALLON TANK FILL RATE
    • 0 to 145 PSI 5 min. 00 sec. (± 10 sec.)
    • 110 to 145 PSI 1 min. 30 sec. (± 5 sec.)
    • 0 to 200 PSI 8 min. 00 sec. (± 15 sec.)
    • 165 to 200 PSI 2 min. 00 sec. (± 5 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 145 PSI 10 min. 32 sec. (± 15 sec.)
    • 110 to 145 PSI 3 min. 22 sec. (± 10 sec.)
    • 0 to 200 PSI 17 min. 28 sec. (± 15 sec.)
    • 165 to 200 PSI 4 min. 38 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.43 7 0 41.0 7
10 1.04 8 1.0 28.0 9
20 0.95 9 2.0 25.0 10
30 0.88 10 3.0 23.0 11
40 0.85 11 4.0 21.0 12
50 0.78 11 5.0 20.0 12
60 0.74 12 6.0 17.0 13
70 0.71 12 7.0 15.0 13
80 0.64 13 8.0 14.0 13
90 0.58 13 9.0 12.0 14
100 0.55 13 10.0 10.0 14
110 0.51 13 11.0 9.0 14
120 0.46 14 12.0 8.0 13
130 0.42 14 13.0 6.0 13
140 0.39 14 14.0 4.0 13
150 0.35 14
160 0.32 14
170 0.28 13
180 0.25 13
190 0.21 13
200 0.18 13



24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI CFM A BAR LPM A
0 1.40 4 0 39.7 4
10 1.07 5 1.0 29.0 6
20 1.01 6 2.0 27.7 6
30 0.98 6 3.0 25.7 7
40 0.93 7 4.0 24.3 7
50 0.88 7 5.0 22.7 7
60 0.86 7 6.0 21.7 8
70 0.81 7 7.0 20.3 8
80 0.79 8 8.0 18.3 8
90 0.74 8 9.0 16.7 8
100 0.72 8 10.0 15.3 8
110 0.66 8 11.0 14.3 8
120 0.64 8 12.0 13.0 8
130 0.59 8 13.0 12.3 8
140 0.57 8 14.0 11.0 8
150 0.52 8
160 0.51 8
170 0.47 8
180 0.45 8
190 0.42 8
200 0.39 8
