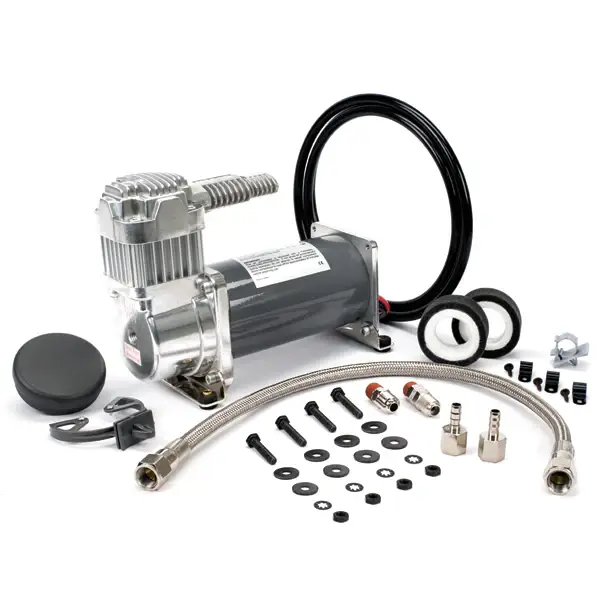

33050 | VIAIR 330C Hyper-Grade Industrial Compressor / Tire Inflator In Silver 12 Volt | 150 PSI, Max Air Tank Size 5.0 Gallon

The 330 IG air compressors are medium-duty, 150 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation.

They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts.

SPECIFICATIONS

• PN: 33050, 33058
• CFM: 1.06 @ 0 PSI
• 12-Volt / 24-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. 12V Amp Draw: 16-Amps
• Max. 24V Amp Draw: 9-Amps
• Ingress Protection Rating: IP67
• Max. Ambient Temp: +158°F
• Min. Ambient Temp: -40°F
• Dimensions: 9″L x 4″W x 6.75″H
• Net Weight: 8.25 lbs.

FEATURES:

• Thermal Overload Protector
• Vibration Isolators
• Mounting Hardware
• Heavy Duty 1/4″ NPT Check Valve
• Stainless Steel Braided PTFE-Lined Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

PLEASE NOTE:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

12-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 3 min. 40 sec. (± 10 sec.)
  • 85 to 105 PSI 50 sec. (± 05 sec.)
  • 0 to 145 PSI 5 min. 45 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 44 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 7 min. 24 sec. (± 15 sec.)
  • 85 to 105 PSI 1 min. 40 sec. (± 05 sec.)
  • 0 to 145 PSI 12 min. 12 sec. (± 15 sec.)
  • 110 to 145 PSI 3 min. 30 sec. (± 10 sec.)

24-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 3 min. 09 sec. (± 10 sec.)
  • 85 to 105 PSI 45 sec. (± 05 sec.)
  • 0 to 145 PSI 5 min. 00 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 31 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 6 min. 20 sec. (± 10 sec.)
  • 85 to 105 PSI 1 min. 26 sec. (± 05 sec.)
  • 0 to 145 PSI 10 min. 00 sec. (± 15 sec.)
  • 110 to 145 PSI 3 min. 12 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

24-VOLT COMPRESSOR - Supply Voltage 28 Volts
