33058 | VIAIR 330C Hyper-Grade Industrial Compressor / Tire Inflator In Silver 24 Volt | 150 PSI, Max Air Tank Size 5.0 Gallon

330C Hyper-Grade Industrial Compressor / Tire Inflator In Silver 24 Volt | 150 PSI, Max Air Tank Size 5.0 Gallon | Universal - Check Specification Before Ordering

33058
Pricing: $467.53
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The 330 IG air compressors are medium-duty, 150 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation.

They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts.

SPECIFICATIONS

  • PN: 33050, 33058
  • CFM: 1.06 @ 0 PSI
  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 16-Amps
  • Max. 24V Amp Draw: 9-Amps
  • Ingress Protection Rating: IP67
  • Max. Ambient Temp: +158°F
  • Min. Ambient Temp: -40°F
  • Dimensions: 9″L x 4″W x 6.75″H
  • Net Weight: 8.25 lbs.

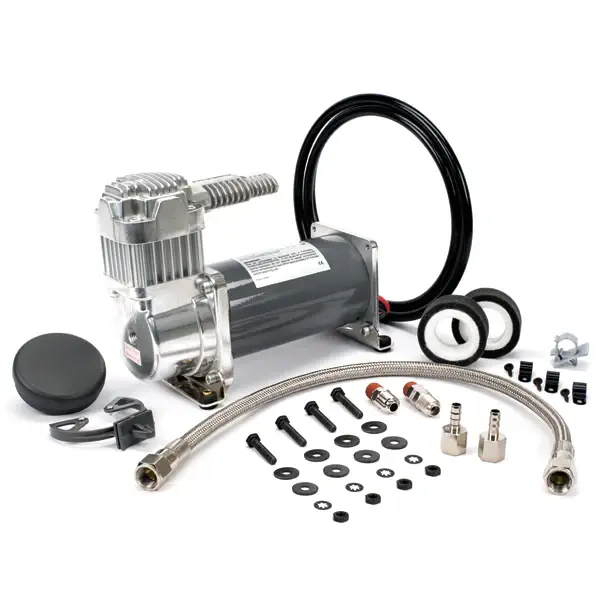

FEATURES:

  • Thermal Overload Protector
  • Vibration Isolators
  • Mounting Hardware
  • Heavy Duty 1/4″ NPT Check Valve
  • Stainless Steel Braided PTFE-Lined Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

PLEASE NOTE:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

12-VOLT COMPRESSOR

  • 2.5 GALLON TANK FILL RATE
    • 0 to 105 PSI 3 min. 40 sec. (± 10 sec.)
    • 85 to 105 PSI 50 sec. (± 05 sec.)
    • 0 to 145 PSI 5 min. 45 sec. (± 10 sec.)
    • 110 to 145 PSI 1 min. 44 sec. (± 05 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 105 PSI 7 min. 24 sec. (± 15 sec.)
    • 85 to 105 PSI 1 min. 40 sec. (± 05 sec.)
    • 0 to 145 PSI 12 min. 12 sec. (± 15 sec.)
    • 110 to 145 PSI 3 min. 30 sec. (± 10 sec.)

24-VOLT COMPRESSOR

  • 2.5 GALLON TANK FILL RATE
    • 0 to 105 PSI 3 min. 09 sec. (± 10 sec.)
    • 85 to 105 PSI 45 sec. (± 05 sec.)
    • 0 to 145 PSI 5 min. 00 sec. (± 10 sec.)
    • 110 to 145 PSI 1 min. 31 sec. (± 05 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 105 PSI 6 min. 20 sec. (± 10 sec.)
    • 85 to 105 PSI 1 min. 26 sec. (± 05 sec.)
    • 0 to 145 PSI 10 min. 00 sec. (± 15 sec.)
    • 110 to 145 PSI 3 min. 12 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.06 7 0 30.0 7
10 1.00 8 1.0 27.0 8
20 0.90 9 2.0 24.2 10
30 0.85 10 3.0 21.1 10
40 0.76 10 4.0 19.7 11
50 0.72 11 5.0 18.3 12
60 0.69 11 6.0 17.7 12
70 0.65 12 7.0 17.0 13
80 0.64 12 8.0 15.5 14
90 0.62 12 9.0 14.4 15
100 0.60 13 10.0 13.0 16
110 0.57 13
120 0.53 14
130 0.51 15
140 0.48 16
150 0.44 15



24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI CFM A BAR LPM A
0 1.16 4 0 33.0 4
10 1.05 5 1.0 28.5 5
20 0.95 5 2.0 25.1 6
30 0.88 6 3.0 22.6 6
40 0.81 6 4.0 21.2 7
50 0.78 6 5.0 20.0 7
60 0.74 7 6.0 19.0 7
70 0.71 7 7.0 17.7 8
80 0.69 7 8.0 16.5 9
90 0.66 7 9.0 15.0 9
100 0.63 8 10.0 13.5 8
110 0.60 8
120 0.57 9
130 0.53 9
140 0.49 8
150 0.46 8

Application List

Universal - Check Specification Before Ordering
