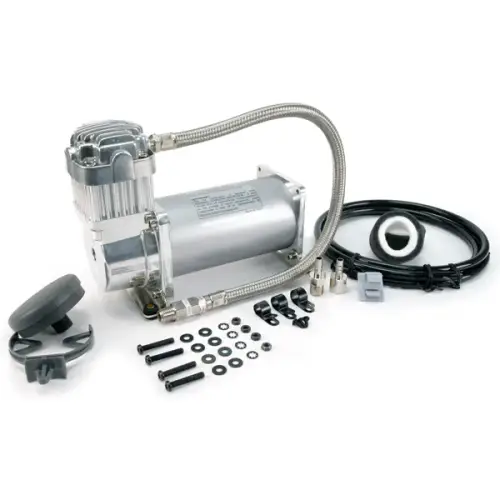

35030 | VIAIR 350C Compressor / Tire Inflator In Silver 12 Volt | 150 PSI, Max Air Tank Size 5.0 Gallon

The 350C is a low amp-draw air compressor that can run for up to 1 hour before needing rest. It's a versatile choice for a variety of pneumatic applications.starts.

SPECIFICATIONS

• PN: 35030
• CFM: 1.52 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. 12V Amp Draw: 20-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 7.4″L x 4″W x 6.75″H
• Net Weight: 8.55 lbs.

FEATURES:

• Thermal Overload Protector
• Check Valve
• Vibration Isolators
• Mounting Hardware
• Stainless Steel Braided Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

PLEASE NOTE:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

12-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 2 min. 55 sec. (± 10 sec.)
  • 85 to 105 PSI 45 sec. (± 05 sec.)
  • 0 to 145 PSI 4 min. 20 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 33 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 5 min. 20 sec. (± 10 sec.)
  • 85 to 105 PSI 1 min. 30 sec. (± 05 sec.)
  • 0 to 145 PSI 8 min. 50 sec. (± 15 sec.)
  • 110 to 145 PSI 3 min. 15 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
