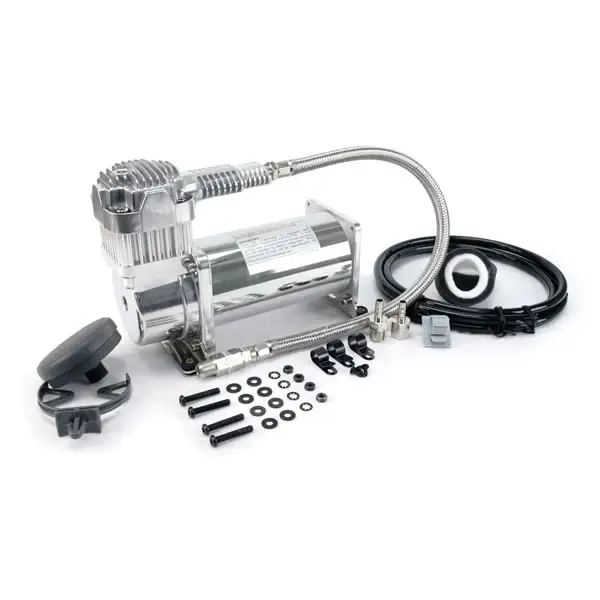

38033 | VIAIR 380C Compressor / Tire Inflator 12 Volt | 200 PSI, Max Air Tank Size 5.0 Gallon

The 380C air compressor can operate continuously for 30min at 200 PSI without exceeding a 23-amp power draw. It features a 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring.

SPECIFICATIONS

• PN: 38033
• CFM: 1.58 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. 12V Amp Draw: 23-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 9″L x 4″W x 6.75″H
• Net Weight: 8.75 lbs.

FEATURES:

• Thermal Overload Protector
• Check Valve
• Vibration Isolators
• Mounting Hardware
• Stainless Steel Braided Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

PLEASE NOTE:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

12-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 3 min. 30 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 10 sec. (± 05 sec.)
  • 0 to 200 PSI 6 min. 05 sec. (± 15 sec.)
  • 165 to 200 PSI 1 min. 40 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 145 PSI 7 min. 20 sec. (± 15 sec.)
  • 110 to 145 PSI 2 min. 25 sec. (± 05 sec.)
  • 0 to 200 PSI 13 min. 25 sec. (± 15 sec.)
  • 165 to 200 PSI 3 min. 39 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
