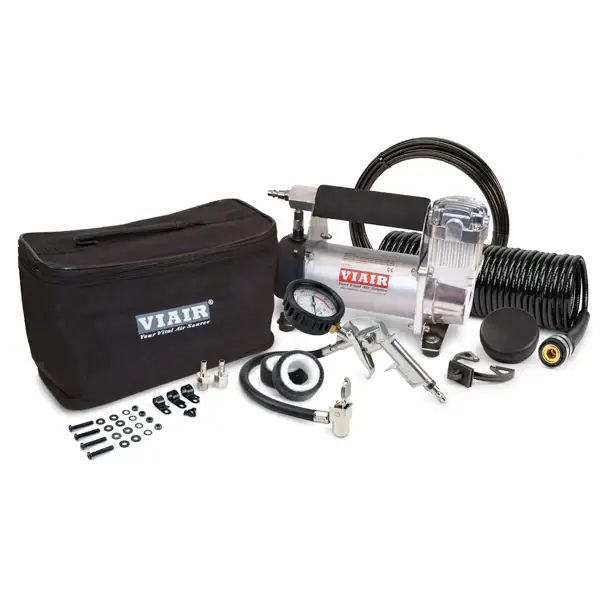

40041 | VIAIR 400H-Automatic Hardmount Compressor / Tire Inflator With Inline160 PSI Gauge Inflation Gun | 12 Volt, 150 PSI

The 400H Hard-Mount Automatic comes with a built-in, moisture resistant ON/OFF power switch.

The trigger control function eliminates the need to turn the compressor OFF and ON between each tire fill, making multi-tire inflation a breeze and allowing you to check tire pressure during inflation by simply releasing the inflation gun trigger. It features a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

SPECIFICATIONS

• PN: 40041
• CFM: 2.30 @ 0 PSI
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
•  Max. Amp Draw: 30-Amps
•  Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 10.83″L x 4.13″W x 7.28″H
• Net Weight: 10.70 lbs.
• Power Cord Length: 8 ft.
• Air Hose Length: 30 ft.

FEATURES:

• Gas Station-Style Tire Inflation Gun with 160 PSI Gauge
• Thermal Overload Protector
• Automatic Shut-Off Function
• Upgraded Vibration Isolators
• 30 ft. Braided inside Black Coil Hose
• 40-amp Inline Fuse Holder
• Storage Bag for Hose and Tire Inflation Gun
• Air Line for Remote Mount Air Filter
• Upgraded Vibration Isolators
• Mounting Hardware
• (2) Replacement Air Filter Elements
• Installation Instructions

PLEASE NOTE:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

• 31″ X 10.5″ FILL RATE
  • 0 to 30 PSI 3 min. 00 sec. (± 10 sec.)
  • 15 to 30 PSI 1 min. 35 sec. (± 05 sec.)
• 33″ X 12.5″ FILL RATE
  • 0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
  • 15 to 30 PSI 2 min. 05 sec. (± 05 sec.)
• 35″ X 12.5″ FILL RATE
  • 0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
  • 15 to 30 PSI 2 min. 45 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
