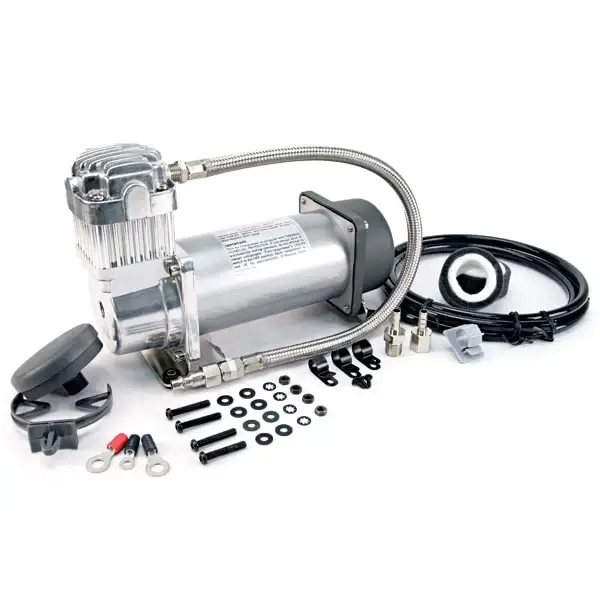

40042 | VIAIR 400H Hardmount Compressor / Tire Inflator | 12 Volt, 150 PSI

The 400H Hard-Mount Automatic comes with a built-in, moisture resistant ON/OFF power switch.

It features a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

SPECIFICATIONS

• PN: 40041
• CFM: 2.30 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 30-Amps
• Ingress Protection Rating: IP54
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 10.08″L x 3.94″W x 6.75″H
• Net Weight: 8.95 lbs.

FEATURES:

• Thermal Overload Protector
• Check Valve
• Vibration Isolators
• Mounting Hardware
• 1/4″ Quick Connect Stud
• Stainless Steel Braided Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

PLEASE NOTE:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

• 31” X 10.5” FILL RATE
  • 0 to 30 PSI 3 min. 00 sec. (± 10 sec.)
  • 15 to 30 PSI 1 min. 35 sec. (± 05 sec.)
• 33″ X 12.5″ FILL RATE
  • 0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
  • 15 to 30 PSI 2 min. 05 sec. (± 05 sec.)
• 35″ X 12.5″ FILL RATE
  • 0 to 30 PSI 5 min. 20 sec(± 15 sec.)
  • 15 to 30 PSI 2 min. 45 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
