40052 | VIAIR 400C Compressor / Tire Inflator 24 Volt | 150 PSI, Max Air Tank Size 5.0 Gallon

Ideal for industrial environments, VIAIR’s 400C compressor is the fastest-filling in its class.

Capable of powering air horns, air suspension, and industrial pneumatic operations, the 400C flows fast and has a compact footprint for a wide range of personal and commercial applications.

SPECIFICATIONS

• PN: 40040, 40052
• CFM: 2.62 @ 0 PSI
• 12-Volt / 24-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. 12V Amp Draw: 30-Amps
• Max. 24V Amp Draw: 15 Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 9″L x 4″W x 6.75″H
• Net Weight: 8.65 lbs.

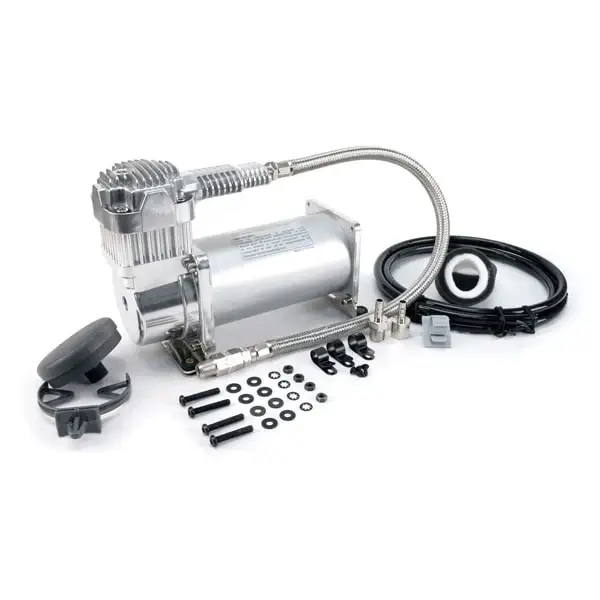

FEATURES:

• Thermal Overload Protector
• Check Valve
• Vibration Isolators
• Mounting Hardware
• Stainless Steel Braided Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

PLEASE NOTE:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

12-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 2 min. 27 sec. (± 05 sec.)
  • 110 to 145 PSI 55 sec. (± 03 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 2 min. 55 sec. (± 10 sec.)
  • 85 to 105 PSI 45 sec. (± 05 sec.)
  • 0 to 145 PSI 4 min. 50 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 40 sec. (± 05 sec.)

24-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 1 min. 24 sec. (± 05 sec.)
  • 85 to 105 PSI 20 sec. (± 03 sec.)
  • 0 to 145 PSI 2 min. 16 sec. (± 05 sec.)
  • 110 to 145 PSI 47 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 2 min. 38 sec. (± 10 sec.)
  • 85 to 105 PSI 38 sec. (± 03 sec.)
  • 0 to 145 PSI 4 min. 08 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 20 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

 24-VOLT COMPRESSOR - Supply Voltage 28 Volts
