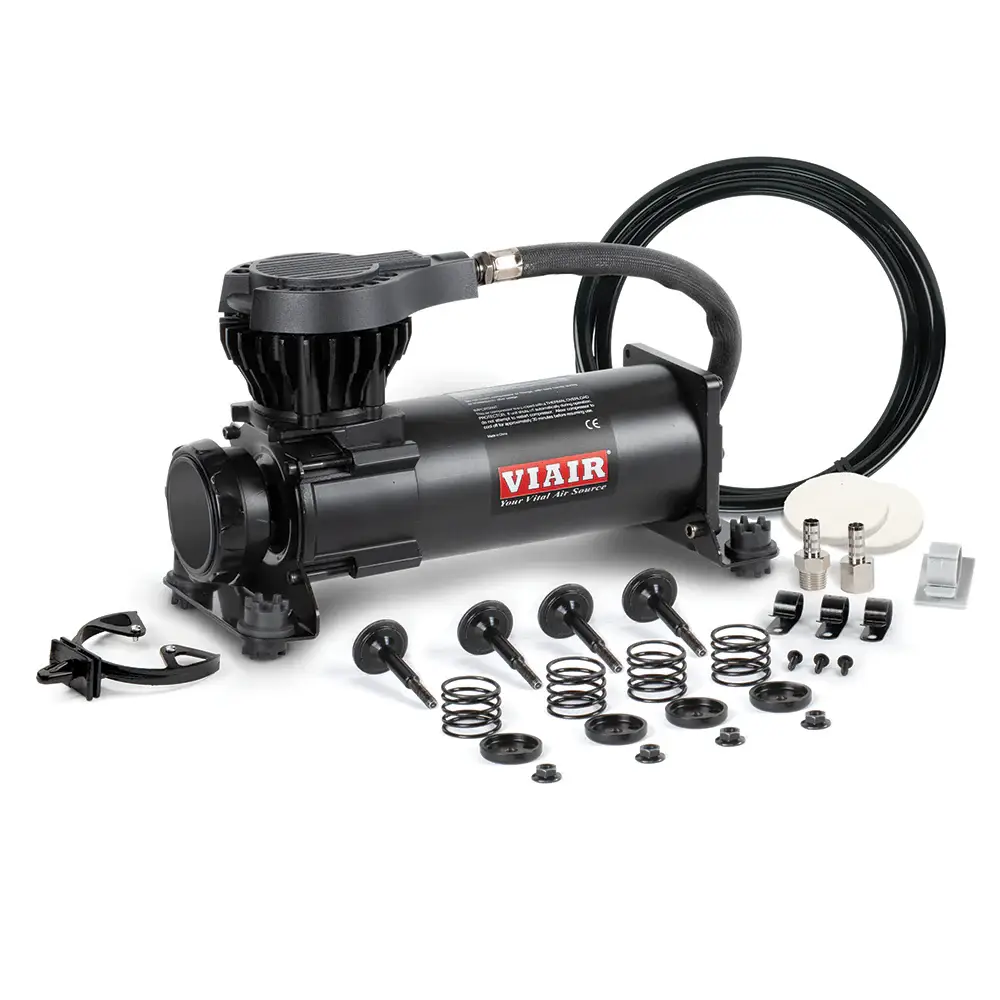

41040 | VIAIR 410 SS Stealth Series Compressor / Tire Inflator 12 Volt | 200 PSI, Max Air Tank Size 5.0 Gallon

Upgraded for better performance and less noise.

VIAIR’s 410 SS Stealth-Series Compressor reduces audible noise levels by up to 50%. For suspension, off-road, industrial, and even air horn applications—there’s no better choice.

SPECIFICATIONS

• PN: 41040
• CFM: 1.73 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Duty Cycle: 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. 12V Amp Draw: 25-Amps
• Ingress Protection Rating: IP67
• Dimensions: 12.5″L x 4.4″W x 7.3″H
• Net Weight: 9.75 lbs.

FEATURES:

• Thermal Overload Protector
• Check Valve

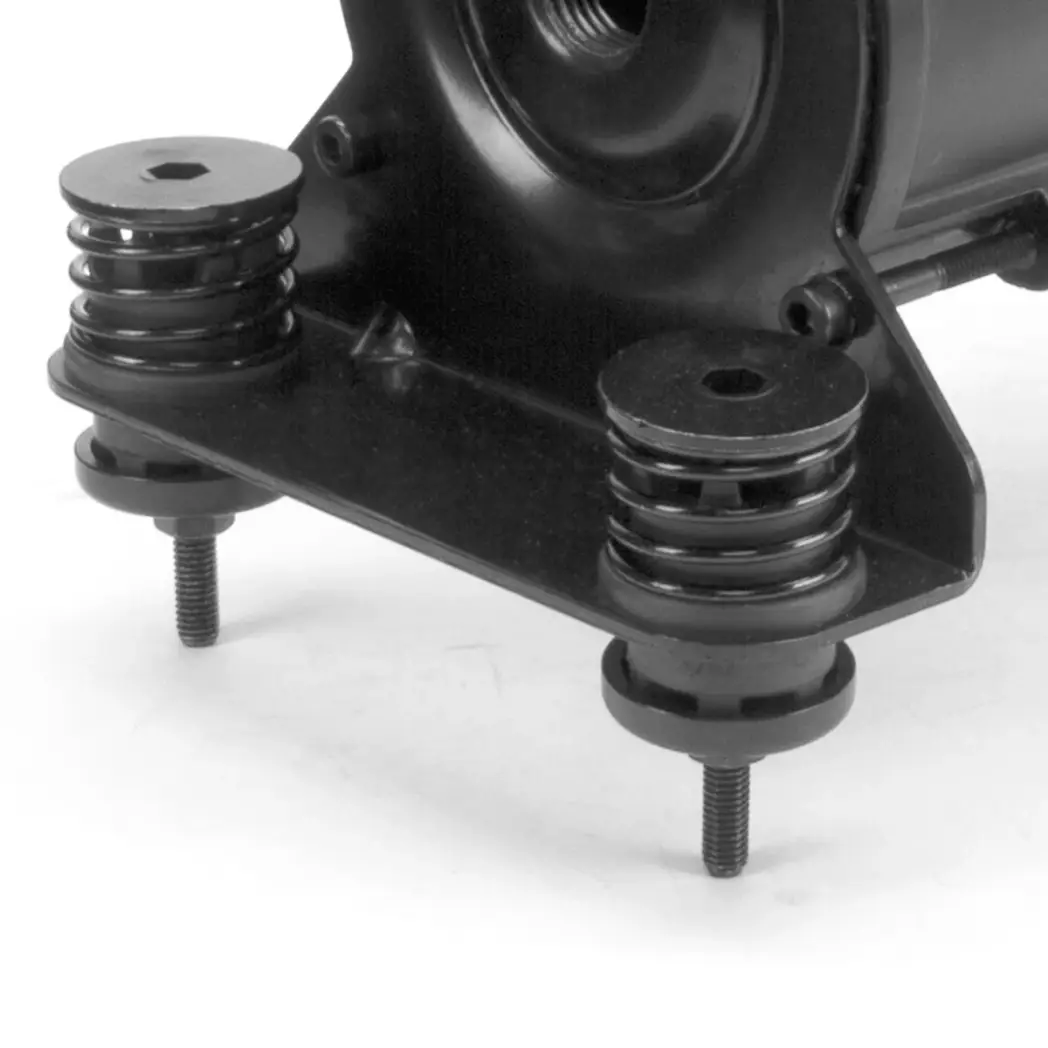

• Spring Loaded Vibration Isolating Feet
• Mounting Hardware

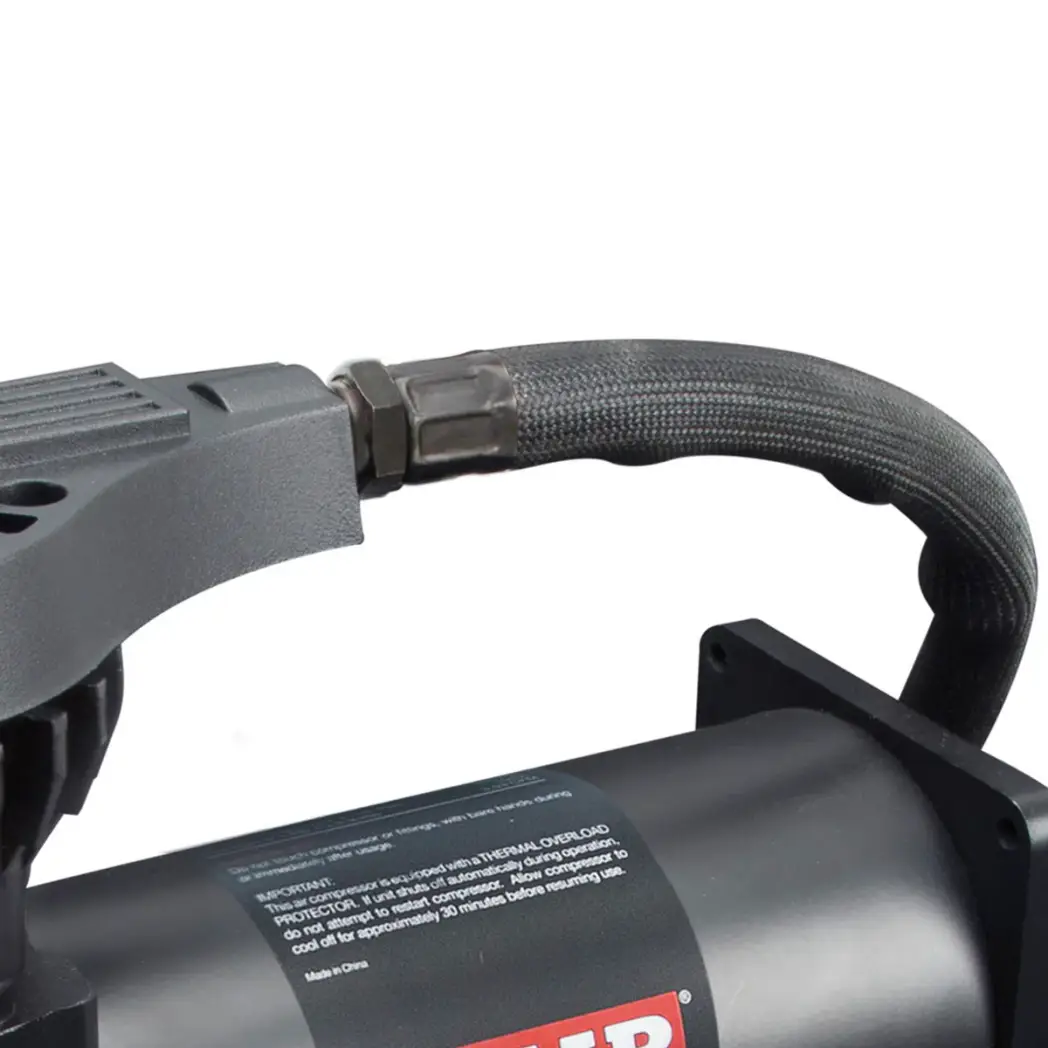

• Stainless Steel Braided Leader Hose
• Air Line for Remote Mount Air Filter

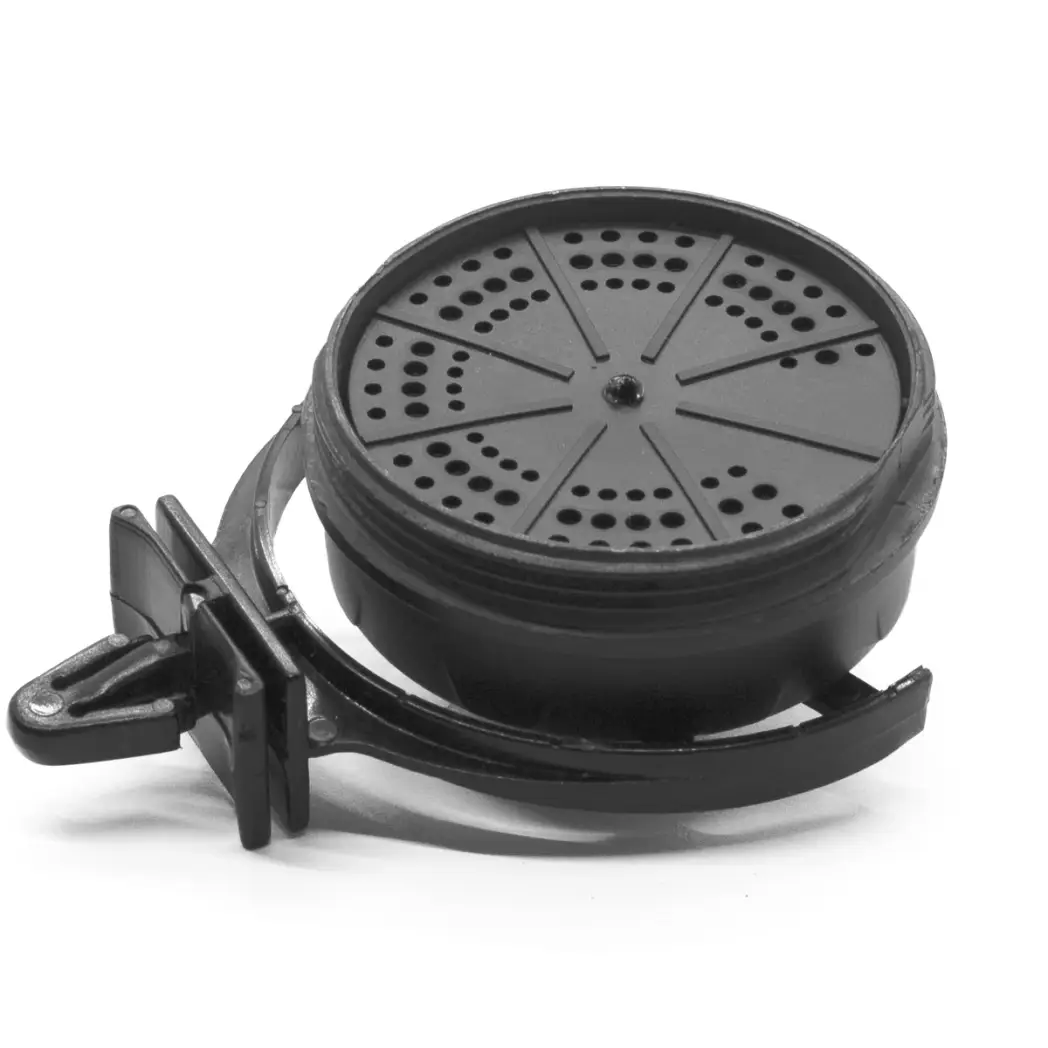

• Remote Mount 6-Stage Air Filter/Muffler Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

PLEASE NOTE:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

12-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 3 min. 35 sec. (± 15 sec.)
  • 110 to 145 PSI 1 min. 10 sec. (± 10 sec.)
  • 0 to 200 PSI 4 min. 55 sec. (± 15 sec.)
  • 165 to 200 PSI 1 min. 10 sec. (± 10 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 145 PSI 6 min. 30 sec. (± 20 sec.)
  • 110 to 145 PSI 1 min. 50 sec. (± 10 sec.)
  • 0 to 200 PSI 10 min. 10 sec. (± 20 sec.)
  • 165 to 200 PSI 2 min. 22 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
