42042 | VIAIR 420C Compressor / Tire Inflator 12 Volt | 150 PSI, Max Air Tank Size 5.0 Gallon

The 420C air compressor is a high-output unit that can run for 20 minutes at 100 PSI.

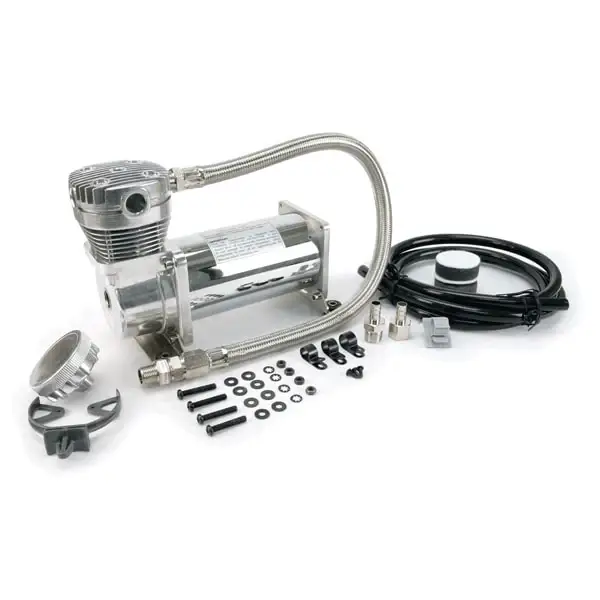

Comes equipped with a 3/8" stainless steel braided leader hose, check valve and insulated terminals.

SPECIFICATIONS

• PN: 42042
• CFM: 2.95 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. 12V Amp Draw: 30-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 10″L x 4.3″W x 6.5″H
• Net Weight: 9.00 lbs.

FEATURES:

• Thermal Overload Protector
• Check Valve
• Vibration Isolators
• Mounting Hardware
• Stainless Steel Braided Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

PLEASE NOTE:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

• 2.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 1 min. 27 sec. (± 05 sec.)
  • 85 to 105 PSI 21 sec. (± 03 sec.)
  • 0 to 145 PSI 2 min. 20 sec. (± 05 sec.)
  • 110 to 145 PSI 48 sec. (± 03 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 2 min. 55 sec. (± 10 sec.)
  • 85 to 105 PSI 45 sec. (± 05 sec.)
  • 0 to 145 PSI 4 min. 50 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 40 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
