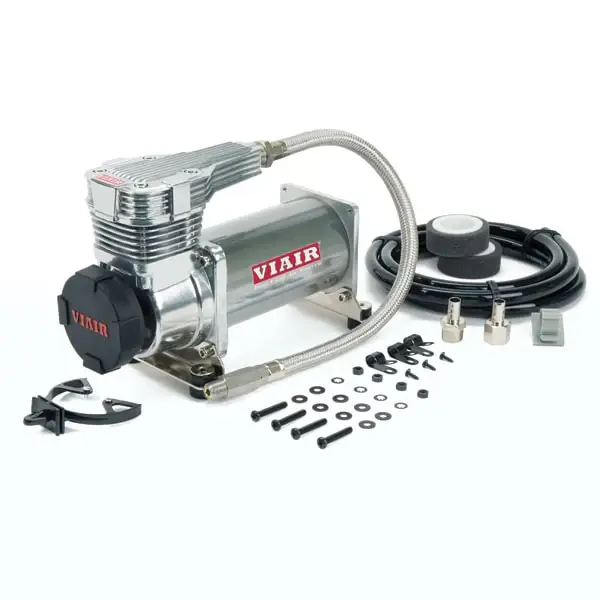

42500 | VIAIR 425C Gen 2 Compressor / Tire Inflator 12 Volt In Platinum | 175 PSI, Max Air Tank Size 5.0 Gallon

The 425C air compressor has a duty cycle of 33% at 175 PSI, and 50% at 100 PSI.

It features upgraded internal components that make it a true 175 PSI-rated working pressure unit. An updated head design increases duty cycle while decreasing decibel levels. Comes equipped with a stainless steel braided leader hose and inline check valve.

SPECIFICATIONS

• PN: 42500, 42502
• CFM: 2.60 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 50% @ 100 PSI
• Duty Cycle: 33% @ 175 PSI
• Max. Working Pressure: 175 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. Amp Draw: 30-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 9.25″L x 4.14″W x 6.59″H
• Net Weight: 11.10 lbs.

FEATURES:

• Thermal Overload Protector
• 425C (Platinum or Stealth Black) Compressor
• Stainless Steel Braided Leader Hose with Inline Check Valve
• Air Filter Assembly
• VIAIR Removable Filter Cover
• Replacement Air Filter Elements
• Remote Mount Filter Assembly
• Leader Hose Clip
• Air Line Clip with Included Hardware
• Mounting Hardware
• Air Line (For Remote Mount Filter Installation)

PLEASE NOTE:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

FILL RATES

• 2.0 GALLON TANK FILL RATE
  • 0 to 175 PSI 2 min. 20 sec. (± 10 sec.)
  • 140 to 175 PSI 40 sec. (± 05 sec.)
• 2.5 GALLON TANK FILL RATE
  • 0 to 175 PSI 2 min. 55 sec. (± 10 sec.)
  • 140 to 175 PSI 50 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 145 PSI 2 min. 30 sec. (± 10 sec.)
  • 110 to 145 PSI 52 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
