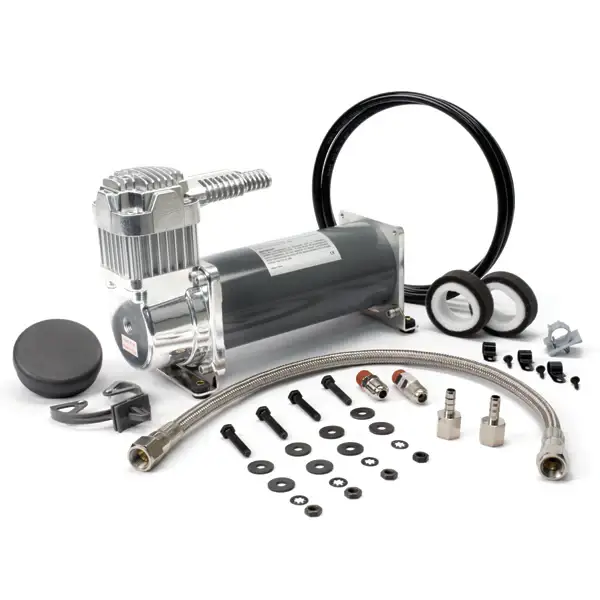

45050 | VIAIR 450C Industrial Grade Air Compressor 12 Volt | 150 PSI, Max Air Tank Size 5.0 Gallon

450C Industrial Grade Air Compressor 12 Volt | 150 PSI, Max Air Tank Size 5.0 Gallon | Universal - Check Specification Before Ordering

45050
Pricing: $559.93
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The 450 IG air compressors are heavy-duty, 150 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation.

They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts.

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

  • PN: 45050, 45051, 45058
  • CFM: 1.80 @ 0 PSI (12V) 2.20 @ 0 PSI (24V)
  • 12-Volt / 24-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 23-Amps
  • Max. 24V Amp Draw: 13-Amps
  • Ingress Protection Rating: IP67
  • Max. Ambient Temp: +158°F
  • Min. Ambient Temp: -40°F
  • Dimensions: 11.25″L x 4″W x 6.75″H
  • Net Weight: 10.40 lbs.

FEATURES:

  • Thermal Overload Protector
  • Vibration Isolators
  • Mounting Hardware
  • Heavy Duty 1/4″ NPT Check Valve
  • Stainless Steel Braided PTFE-Lined Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

FILL RATES

12-VOLT COMPRESSOR

  • 2.5 GALLON TANK FILL RATE
    • 0 to 105 PSI 1 min. 55 sec. (± 10 sec.)
    • 85 to 105 PSI 28 sec. (± 05 sec.)
    • 0 to 145 PSI 3 min. 02 sec. (± 10 sec.)
    • 110 to 145 PSI 59 sec. (± 05 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 105 PSI 4 min. 00 sec. (± 10 sec.)
    • 85 to 105 PSI 58 sec. (± 05 sec.)
    • 0 to 145 PSI 6 min. 25 sec. (± 15 sec.)
    • 110 to 145 PSI 2 min. 11 sec. (± 10 sec.)

24-VOLT COMPRESSOR

  • 2.5 GALLON TANK FILL RATE
    • 0 to 105 PSI 1 min. 45 sec. (± 10 sec.)
    • 85 to 105 PSI 25 sec. (± 05 sec.)
    • 0 to 145 PSI 2 min. 40 sec. (± 10 sec.)
    • 110 to 145 PSI 50 sec. (± 05 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 105 PSI 3 min. 20 sec. (± 10 sec.)
    • 85 to 105 PSI 50 sec. (± 05 sec.)
    • 0 to 145 PSI 5 min. 15 sec. (± 15 sec.)
    • 110 to 145 PSI 1 min. 45 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 1.80 12 0 51.0 12
10 1.75 14 1.0 47.6 15
20 1.60 16 2.0 43.3 17
30 1.52 17 3.0 38.2 18
40 1.39 18 4.0 34.0 19
50 1.27 19 5.0 30.5 20
60 1.18 19 6.0 28.1 21
70 1.09 20 7.0 26.4 22
80 1.04 20 8.0 25.0 23
90 0.97 21 9.0 23.0 22
100 0.9 22 10.0 21.0 21
110 0.90 23
120 0.86 23
130 0.81 22
140 0.76 21
150 0.72 21



24-VOLT COMPRESSOR - Supply Voltage 28 Volts

PSI CFM A BAR LPM A
0 2.20 8 0 62.3 8
10 1.98 9 1.0 54.4 10
20 1.86 11 2.0 50.6 11
30 1.78 11 3.0 47.0 11
40 1.69 11 4.0 43.4 12
50 1.59 12 5.0 40.6 12
60 1.52 12 6.0 37.7 12
70 1.45 12 7.0 35.0 13
80 1.38 12 8.0 32.0 12
90 1.31 12 9.0 28.5 12
100 1.24 13 10.0 26.0 12
110 1.17 13
120 1.09 12
130 1.01 12
140 0.95 12
150 0.88 12

Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 10.4 lbs.
  • W4.0000” x H6.7500” x L11.2500”
  • Free Ground Shipping | Exclusions Apply*
