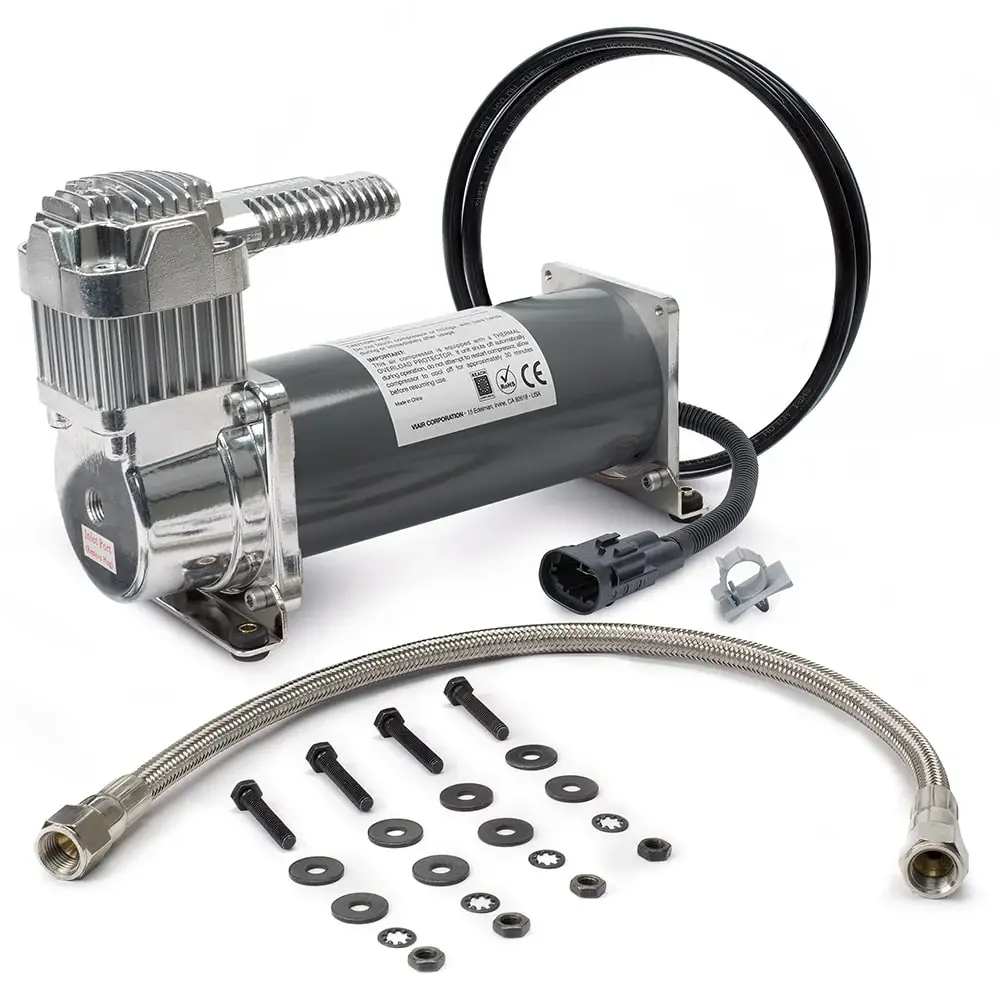

45051 | VIAIR 450C Industrial Grade Air Compressor 12 Volt With 2 Way Automotive Connector | 150 PSI, Max Air Tank Size 5.0 Gallon

The 450 IG air compressors are heavy-duty, 150 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation.

They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 45050, 45051, 45058
• CFM: 1.80 @ 0 PSI (12V) 2.20 @ 0 PSI (24V)
• 12-Volt / 24-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. 12V Amp Draw: 23-Amps
• Max. 24V Amp Draw: 13-Amps
• Ingress Protection Rating: IP67
• Max. Ambient Temp: +158°F
• Min. Ambient Temp: -40°F
• Dimensions: 11.25″L x 4″W x 6.75″H
• Net Weight: 10.40 lbs.

FEATURES:

• Thermal Overload Protector
• Vibration Isolators
• Mounting Hardware
• Heavy Duty 1/4″ NPT Check Valve
• Stainless Steel Braided PTFE-Lined Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

FILL RATES

12-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 1 min. 55 sec. (± 10 sec.)
  • 85 to 105 PSI 28 sec. (± 05 sec.)
  • 0 to 145 PSI 3 min. 02 sec. (± 10 sec.)
  • 110 to 145 PSI 59 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 4 min. 00 sec. (± 10 sec.)
  • 85 to 105 PSI 58 sec. (± 05 sec.)
  • 0 to 145 PSI 6 min. 25 sec. (± 15 sec.)
  • 110 to 145 PSI 2 min. 11 sec. (± 10 sec.)

24-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 1 min. 45 sec. (± 10 sec.)
  • 85 to 105 PSI 25 sec. (± 05 sec.)
  • 0 to 145 PSI 2 min. 40 sec. (± 10 sec.)
  • 110 to 145 PSI 50 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 3 min. 20 sec. (± 10 sec.)
  • 85 to 105 PSI 50 sec. (± 05 sec.)
  • 0 to 145 PSI 5 min. 15 sec. (± 15 sec.)
  • 110 to 145 PSI 1 min. 45 sec. (±10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

24-VOLT COMPRESSOR - Supply Voltage 28 Volts
