46043 | VIAIR 460C Air Compressor 12 Volt | 150 PSI, Max Air Tank Size 5.0 Gallon

The 460C is a continuous duty cycle air compressor, meaning it can run continuously for 1-hour before needing rest.

Features include a standard 3/8” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 46043
• CFM: 1.80 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. 12V Amp Draw: 24-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 11.5″L x 4.3″W x 6.5″H
• Net Weight: 11.10 lbs.

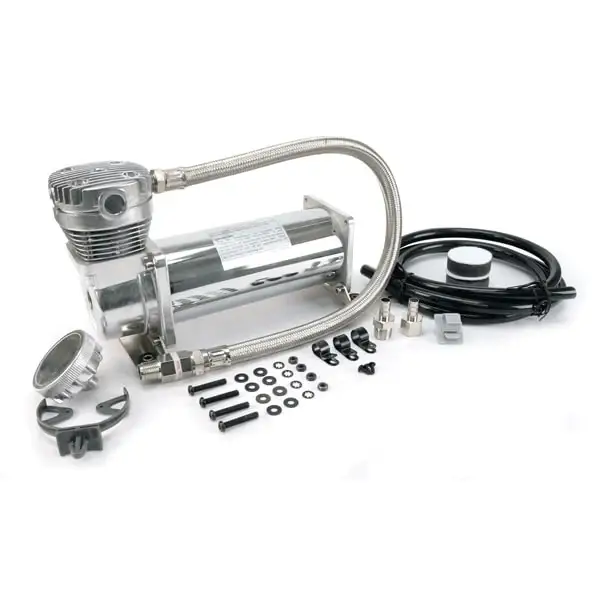

FEATURES:

• Thermal Overload Protector
• Check Valve
• Vibration Isolators
• Mounting Hardware
• Stainless Steel Braided Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

FILL RATES

12-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 105 PSI 1 min. 55 sec. (± 10 sec.)
  • 85 to 105 PSI 28 sec. (± 05 sec.)
  • 0 to 145 PSI 3 min. 02 sec. (± 10 sec.)
  • 110 to 145 PSI 59 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 105 PSI 4 min. 00 sec. (± 10 sec.)
  • 85 to 105 PSI 58 sec. (± 05 sec.)
  • 0 to 145 PSI 6 min. 25 sec. (± 15 sec.)
  • 110 to 145 PSI 2 min. 11 sec.(± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
