48043 | VIAIR 480C Air Compressor 12 Volt | 200 PSI, Max Air Tank Size 5.0 Gallon
480C Air Compressor 12 Volt | 200 PSI, Max Air Tank Size 5.0 Gallon | Universal - Check Specification Before Ordering
48043
Pricing:
$477.33
Description
The 480C air compressor is a high-pressure and efficient solution for various industrial and automotive applications.
It can run for 30 minutes at 200 PSI before needing rest. It features a 3/8" leader hose with check valve and insulated wiring.
Please Note:
- Use thread sealant for proper installation.
- Thread tape is not recommended.
- Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
- Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
SPECIFICATIONS
- PN: 48043
- CFM: 1.86 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 23-Amps
- Ingress Protection Rating: IP67
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions: 10.87″L x 4.2″W x 6.75″H
- Net Weight: 11.05 lbs.

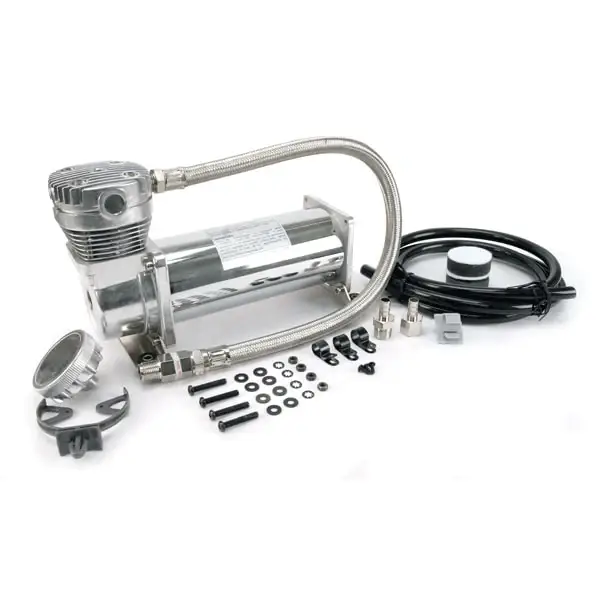

FEATURES:
- Thermal Overload Protector
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
FILL RATES
12-VOLT COMPRESSOR
- 2.5 GALLON TANK FILL RATE
- 0 to 145 PSI 2 min. 50 sec. (± 10 sec.)
- 110 to 145 PSI 57 sec. (± 05 sec.)
- 0 to 200 PSI 5 min. 02 sec. (± 10 sec.)
- 165 to 200 PSI 1 min. 30 sec. (± 05 sec.)
- 5.0 GALLON TANK FILL RATE
- 0 to 145 PSI 6 min. 02 sec. (± 10 sec.)
- 110 to 145 PSI 1 min. 55 sec. (± 05 sec.)
- 0 to 200 PSI 10 min. 30 sec. (± 15 sec.)
- 165 to 200 PSI 3 min. 10 sec. (± 10 sec.)
Performance
12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.86 | 10 | 0 | 52.7 | 10 |
10 | 1.75 | 12 | 1.0 | 47.5 | 13 |
20 | 1.59 | 14 | 2.0 | 43.2 | 15 |
30 | 1.52 | 15 | 3.0 | 40.7 | 16 |
40 | 1.45 | 16 | 4.0 | 38.1 | 18 |
50 | 1.41 | 17 | 5.0 | 35.3 | 18 |
60 | 1.33 | 18 | 6.0 | 32.6 | 19 |
70 | 1.26 | 18 | 7.0 | 30.0 | 20 |
80 | 1.20 | 19 | 8.0 | 27.0 | 22 |
90 | 1.13 | 19 | 9.0 | 25.0 | 22 |
100 | 1.07 | 20 | 10.0 | 22.3 | 21 |
110 | 0.99 | 21 | 11.0 | 20.1 | 21 |
120 | 0.93 | 23 | 12.0 | 18.3 | 21 |
130 | 0.88 | 22 | 13.0 | 16.0 | 20 |
140 | 0.82 | 22 | 14.0 | 14.0 | 19 |
150 | 0.75 | 21 | |||
160 | 0.71 | 21 | |||
170 | 0.67 | 21 | |||
180 | 0.61 | 21 | |||
190 | 0.55 | 20 | |||
200 | 0.51 | 19 |
Application List
Universal - Check Specification Before Ordering
