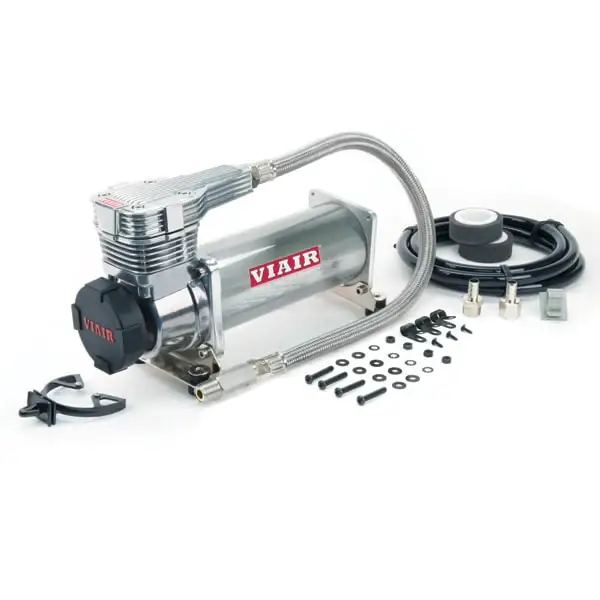

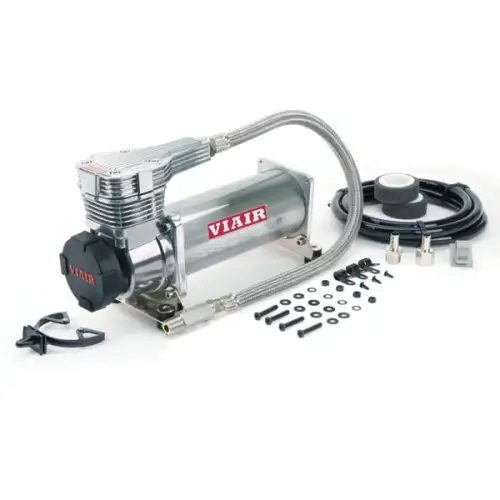

48500 | VIAIR 485C Gen 2 Air Compressor 12 Volt In Platinum | 200 PSI, Max Air Tank Size 5.0 Gallon

The 485C Gen 2 air compressors deliver game-changing performance, delivering 1-hour of performance at 200 PSI before needing rest.

This unit is the premium choice for industrial and automotive applications.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 48500, 48502
• CFM: 2.24 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 5.0 Gallon
• Combined Max. Amp Draw: 23-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 10.63″L x 4.1″W x 6.44″H
• Net Weight: 11.10 lbs.

FEATURES:

• Thermal Overload Protector
• 485C (Platinum or Stealth Black) Compressor
• Air Filter Assembly
• VIAIR Removable Filter Cover
• Replacement Air Filter Elements
• Remote Mount Filter Assembly
• Leader Hose Clip
• Air Line Clip with Included Hardware
• Mounting Hardware
• Stainless Steel Braided Leader Hose with Inline Check Valve
• Air Line (For Remote Mount Filter Installation)

FILL RATES

12-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 200 PSI 4 min. 50 sec. (± 10 sec.)
  • 165 to 200 PSI 1 min. 15 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 200 PSI 9 min. 45 sec. (± 15 sec.)
  • 165 to 200 PSI 2 min. 25 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
