48550 | VIAIR 485C Hyper-Grade Air Compressor 12 Volt | 200 PSI, Max Air Tank Size 5.0 Gallon

The 485C Hyper Grade air compressors are heavy-duty, 200 PSI industrial units designed to fill air tanks and feature a head assembly designed for better heat dissipation.

They're equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 48550
• CFM: 2.00 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Duty Cycle: 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. 12V Amp Draw: 23-Amps
• Ingress Protection Rating: IP67
• Max. Ambient Temp: +158°F
• Min. Ambient Temp: -40°F
• Dimensions: 10.63″L x 4.1″W x 6.75″H
• Net Weight: 11.10 lbs.

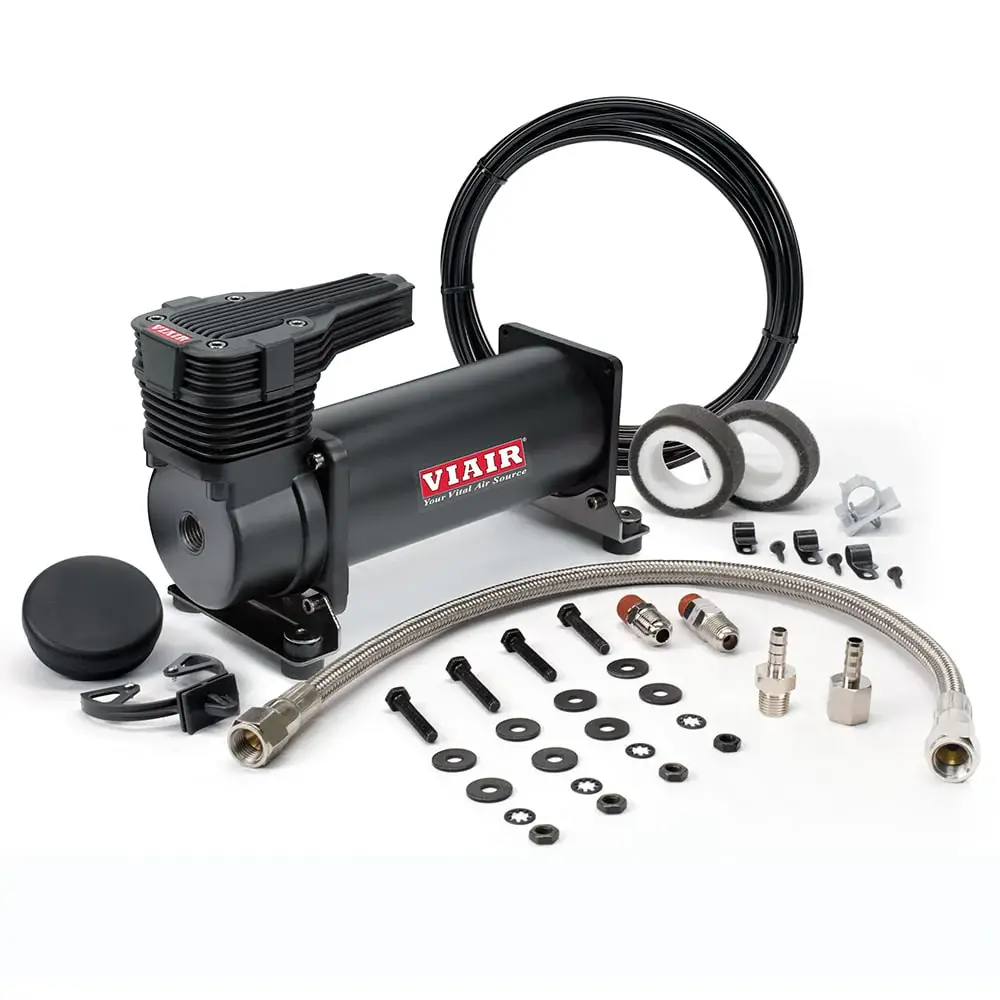

FEATURES:

• hermal Overload Protector
• Vibration Isolators
• Mounting Hardware
• Heavy Duty 3/8″ NPT Check Valve
• Stainless Steel Braided
  PTFE-Lined Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

FILL RATES

12-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 3 min. 06 sec. (± 10 sec.)
  • 110 to 145 PSI 54 sec. (± 05 sec.)
  • 0 to 200 PSI 5 min. 08 sec. (± 15 sec.)
  • 165 to 200 PSI 1 min. 16 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 145 PSI 6 min. 32 sec. (± 15 sec.)
  • 110 to 145 PSI 1 min. 52 sec. (± 05 sec.)
  • 0 to 200 PSI 10 min. 40 sec. (± 15 sec.)
  • 165 to 200 PSI 2 min. 48 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
