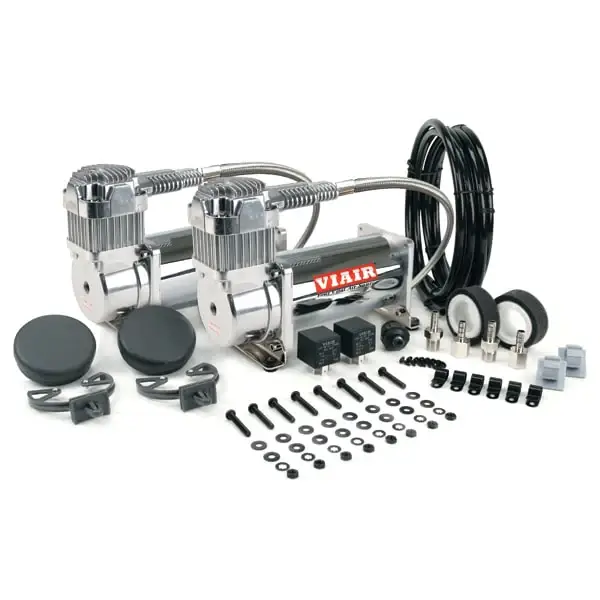

38003 | VIAIR 380C Dual Performance Value Pack Air Compressor 12 Volt In Chrome | 200 PSI, Max Air Tank Size 10 Gallon

380C Dual Performance Value Pack Air Compressor 12 Volt In Chrome | 200 PSI, Max Air Tank Size 10 Gallon | Universal - Check Specification Before Ordering

38003
Pricing: $465.50
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The VIAIR 380C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle.

The kit features two 12-volt 380C air compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch.

Each 380C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

  • PN: 38002, 38003, 38036
  • CFM: 2.54 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
  • Net Weight: 17.50 lbs.

FEATURES:

  • (2) 380C (Chrome, Pewter, or Stealth Black) Air Compressors
    w/Thermal Overload Protectors
  • (2) Air Filter Assemblies
  • (2) Remote Mount Brackets
  • (2) Sets of Remote Mount Fittings
  • (2) Sets of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips with Included Hardware
  • (8) Sets of Nuts, Bolts, Washers and Lock Washers
  • (2) 40-Amp Relays
  • (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • Air Line (For Remote Mount Filter Installation)

FILL RATES

12-VOLT COMPRESSOR

  • 2.5 GALLON TANK FILL RATE
    • 0 to 200 PSI 3 min. 13 sec. (± 10 sec.)
    • 165 to 200 PSI 53 sec. (± 05 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 200 PSI 7 min. 11 sec. (± 15 sec.)
    • 165 to 200 PSI 2 min. 06 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 2.54 28 0 72.0 28
10 2.42 29 1.0 67.0 30
20 2.30 31 2.0 61.7 33
30 2.17 33 3.0 57.5 34
40 2.07 34 4.0 53.5 36
50 1.95 35 5.0 49.8 37
60 1.87 36 6.0 46.4 39
70 1.78 37 7.0 43.3 41
80 1.70 38 8.0 40.3 43
90 1.61 39 9.0 37.2 44
100 1.54 41 10.0 34.5 42
110 1.46 42 11.0 31.8 41
120 1.40 43 12.0 29.2 40
130 1.32 44 13.0 26.6 38
140 1.25 43 14.0 23.7 37
150 1.19 42
160 1.12 41
170 1.06 40
180 0.99 39
190 0.93 38
200 0.86 37



Application List

Universal - Check Specification Before Ordering
