38036 | VIAIR 380C Dual Performance Value Pack Air Compressor 12 Volt In Stealth Black | 200 PSI, Max Air Tank Size 10 Gallon

The VIAIR 380C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle.

The kit features two 12-volt 380C air compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch.

Each 380C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 38002, 38003, 38036
• CFM: 2.54 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 10.0 Gallon
• Combined Max. Amp Draw: 46-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
• Net Weight: 17.50 lbs.

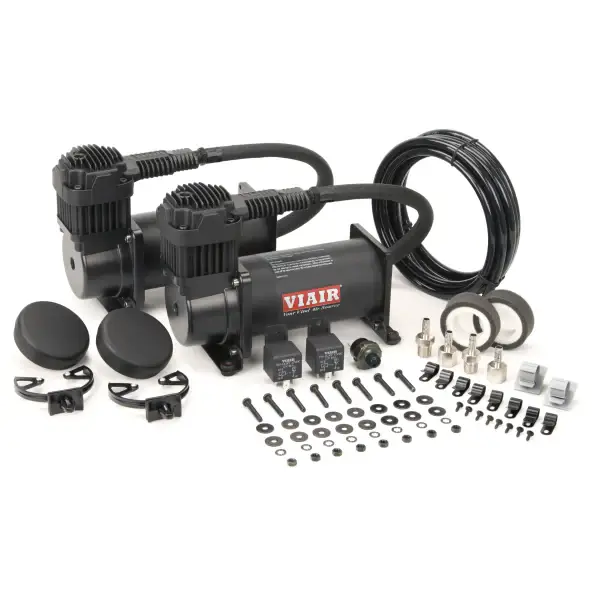

FEATURES:

• (2) 380C (Chrome, Pewter, or Stealth Black) Air Compressors
  w/Thermal Overload Protectors
• (2) Air Filter Assemblies
• (2) Remote Mount Brackets
• (2) Sets of Remote Mount Fittings
• (2) Sets of Spare Air Filter Elements
• (2) Leader Hose Clips
• (6) Air Line Clips with Included Hardware
• (8) Sets of Nuts, Bolts, Washers and Lock Washers
• (2) 40-Amp Relays
• (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
• (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
• Air Line (For Remote Mount Filter Installation)

FILL RATES

12-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 200 PSI 3 min. 13 sec. (± 10 sec.)
  • 165 to 200 PSI 53 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 200 PSI 7 min. 11 sec. (± 15 sec.)
  • 165 to 200 PSI 2 min. 06 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
