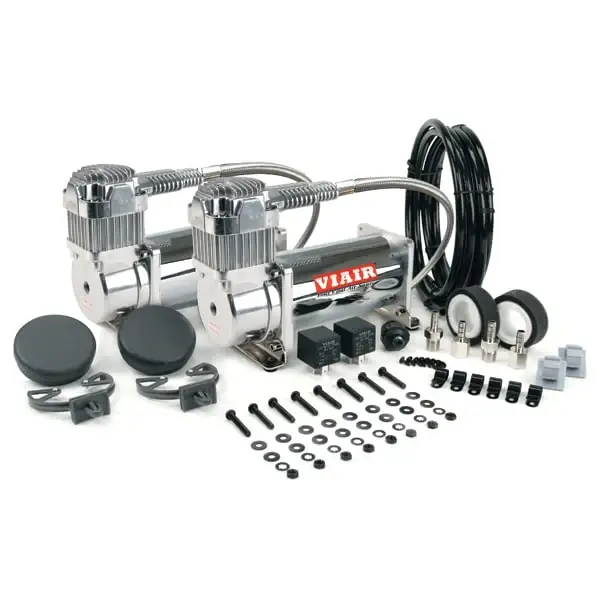

40013 | VIAIR 400C Dual Performance Value Pack Air Compressor 12 Volt In Chrome | 150 PSI, Max Air Tank Size 10 Gallon

VIAIR 400C Dual Performance Value Pack Air Compressor 12 Volt In Chrome | 1500 PSI, Max Air Tank Size 10 Gallon | Universal - Check Specification Before Ordering

40013
Pricing: $475.30
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The VIAIR 400C Dual Performance Value Pack is our fastest filling, highest CFM air compressor system, This kit is perfect for industrial use, air horns, off-road applications, and a great addition to any air suspension kit.

The 400C Dual Performance Value Pack includes two 12-volt VIAIR 400C air compressors, two heavy duty 40-amp relays and an 110 PSI cut-on, 145 PSI cut-off pressure switch.

Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware..

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

  • PN: 40013, 40048
  • CFM: 4.55 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 33% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 60-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
  • Net Weight: 17.30 lbs.

FEATURES:

  • (2) 400C Chrome Air Compressors
    w/Thermal Overload Protectors
  • (2) Air Filter Assemblies
  • (2) Remote Mount Brackets
  • (2) Sets of Remote Mount Fittings
  • (2) Sets of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips with Included Hardware
  • (8) Sets of Nuts, Bolts, Washers and Lock Washers
  • (2) 40-Amp Relays
  • (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • Air Line (For Remote Mount Filter Installation)

FILL RATES

12-VOLT COMPRESSOR

  • 2.0 GALLON TANK FILL RATE
    • 0 to 145 PSI 1 min. 00 sec. (± 05 sec.)
    • 110 to 145 PSI 20 sec. (± 03 sec.)
  • 2.5 GALLON TANK FILL RATE
    • 0 to 145 PSI 1 min. 15 sec. (± 05 sec.)
    • 110 to 145 PSI 25 sec. (± 03 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 145 PSI 2 min. 30 sec. (± 10 sec.)
    • 110 to 145 PSI 52 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 4.55 39 0 129.0 39
10 4.18 40 1.0 115.6 41
20 3.96 42 2.0 106.5 45
30 3.74 45 3.0 96.6 47
40 3.50 46 4.0 86.4 50
50 3.25 48 5.0 78.4 53
60 3.00 50 6.0 70.8 58
70 2.83 52 7.0 64.0 57
80 2.60 55 8.0 57.5 54
90 2.46 59 9.0 50.6 52
100 2.28 57 10.0 43.7 50
110 2.12 55
120 1.97 53
130 1.80 52
140 1.60 51
150 1.48 49



Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 17.3 lbs.
  • W8.0000” x H14.0000” x L18.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
