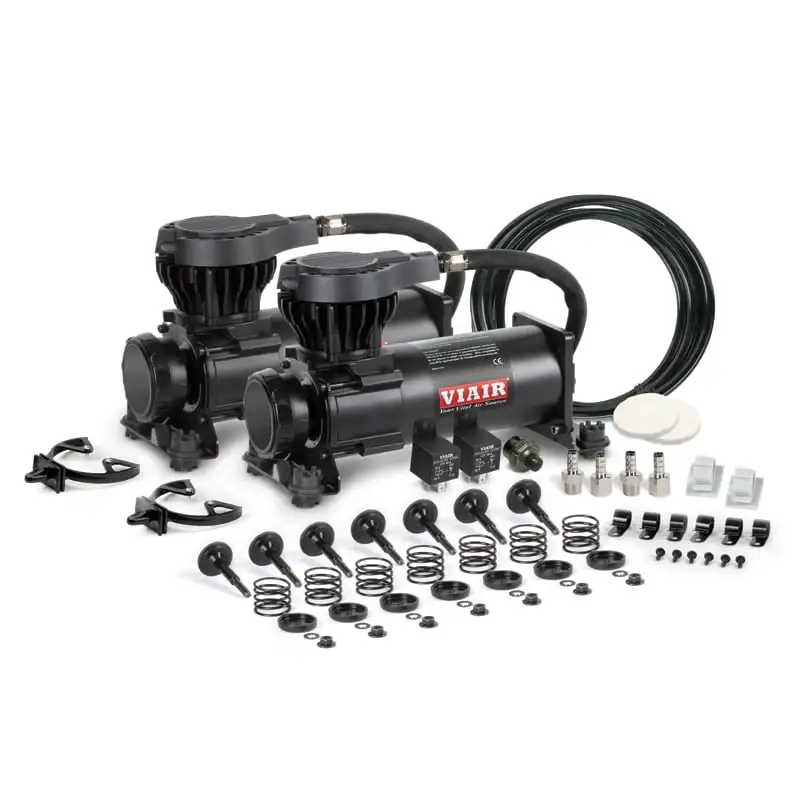

41042 | VIAIR 410C Stealth Series Dual Performance Value Pack Air Compressor 12 Volt | 200 PSI, Max Air Tank Size 10 Gallon

The 410 Stealth-Series dual pack compressors feature upgraded internals, a newly developed head and a new metal filter assembly with internally integrated muffler, reducing audible noise levels by up to 50%.

Equipped with spring-loaded vibration isolators, black sleeved stainless steel leader hose and black nickel plated check valves. RoHs/REACH certified.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
• * Compared to VIAIR 350C/380C compressors noise levels.

SPECIFICATIONS

• PN: 41042
• CFM: 2.94 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Duty Cycle: 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 10.0 Gallon
• Max. 12V Amp Draw: 46-Amps
• Ingress Protection Rating: IP67
• Dimensions: 12.5″L x 4.4″W x 7.3″H
• Net Weight: 19.5lbs.

FEATURES:

• Thermal Overload Protector
• Heavy Duty Pressure Switch
  (165 PSI on, 200 PSI off)
• Black Sleeved
  Stainless Steel Braided Leader Hoses
• Inline Check Valve
• 40-Amp 12v Relays
• Spring Loaded Vibration Isolating Feet
• Mounting Hardware
• Air Line for Remote Mount Air Filter
• Remote Mount 6-Stage
  Air Filter/Muffler Assemblies
• (2) Replacement Air Filter Elements
• Installation Instructions

FILL RATES

12-VOLT COMPRESSOR

• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 1 min. 30 sec. (± 10 sec.)
  • 110 to 145 PSI 30 sec. (± 05 sec.)
  • 0 to 200 PSI 2 min. 25 sec. (± 10 sec.)
  • 165 to 200 PSI 35 sec. (± 05 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 145 PSI 3 min. 15 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 00 sec. (± 10 sec.)
  • 0 to 200 PSI 5 min. 00 sec. (± 10 sec.)
  • 165 to 200 PSI 1 min. 15 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
