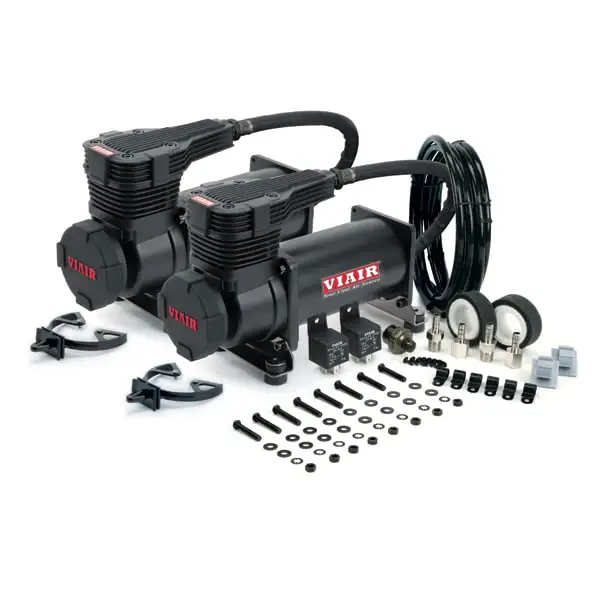

42548 | VIAIR 425C Gen 2 Dual Performance Value Pack Air Compressor 12 Volt In Stealth Black | 175 PSI, Max Air Tank Size 10 Gallon

425C Gen 2 Dual Performance Value Pack Air Compressor 12 Volt In Stealth Black | 175 PSI, Max Air Tank Size 10 Gallon | Universal - Check Specification Before Ordering

42548
Pricing: $526.33
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The 425C dual pack air compressors have a duty cycle of 33% at 175 PSI, and 50% at 100 PSI.

It features upgraded internal components that make it a true 175 PSI-rated working pressure unit.

An updated head design increases duty cycle while decreasing decibel levels. It is equipped with a stainless steel braided leader hose and inline check valve.

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

  • PN: 42513, 42548
  • CFM: 4.94 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 50% @ 100 PSI
  • Duty Cycle: 33% @ 175 PSI
  • Max. Working Pressure: 175 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 60-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 9.25″L x 3.31″W x 6.59″H
  • Net Weight: 11.10 lbs.

FEATURES:

  • (2) 425C (Platinum or Stealth Black) Compressors
    w/Thermal Overload Protectors
  • Stainless Steel Braided Leader Hose with Inline Check Valve
  • (2) Air Filter Assemblies
  • (2) VIAIR Removable Filter Covers
  • (2) Replacement Air Filter Elements
  • (2) Remote Mount Brackets
  • (2) Sets of Remote Mount Fittings
  • Set of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips with Included Hardware
  • (8) Sets of Nuts, Bolts, Washers, and Lock Washers
  • (2) Heavy Duty 40-Amp Relays
  • (1) Heavy Duty Pressure Switch (140 PSI on, 175 PSI off)
  • Air Line (For Remote Mount Filter Installation)

FILL RATES

12-VOLT COMPRESSOR

  • 2.0 GALLON TANK FILL RATE
    • 0 to 175 PSI 1 min. 20 sec. (± 10 sec.)
    • 140 to 175 PSI 25 sec. (± 05 sec.)
  • 2.5 GALLON TANK FILL RATE
    • 0 to 175 PSI 1 min. 35 sec. (± 10 sec.)
    • 140 to 175 PSI 30 sec. (± 05 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 175 PSI 3 min. 20 sec. (± 10 sec.)
    • 140 to 175 PSI 1 min. 05 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 4.94 36 0 140.0 36
10 4.57 39 1.0 125.8 41
20 4.31 43 2.0 116.7 46
30 4.07 46 3.0 104.2 49
40 3.86 48 4.0 94.2 51
50 3.50 50 5.0 86.3 52
60 3.27 51 6.0 78.7 53
70 3.09 52 7.0 72.5 54
80 2.88 53 8.0 63.3 53
90 2.74 54 9.0 56.3 52
100 2.56 54 10.0 48.3 50
110 2.39 54 11.0 41.8 48
120 2.15 53 12.0 36.7 46
130 1.99 52
140 1.85 51
150 1.62 50
160 1.48 48
170 1.38 47
175 1.29 46



Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 11.1 lbs.
  • W3.3100” x H6.5900” x L9.5000”
  • Free Ground Shipping | Exclusions Apply*

Documents
