45012 | VIAIR 450C Dual Performance Value Pack Air Compressor 12 Volt In Silver | 150 PSI, Max Air Tank Size 10 Gallon

VIAIR’s 450C Dual Performance Value Pack is the “workhorse” of our Dual Performance Value Packs product line.

With a 100% duty cycle and up to 150 PSI, the 450C Dual kit provides high performance for any air suspension kit, industrial applications, air horns or off-road mobile pneumatic needs.

The 450C Dual Performance Pack kit features two VIAIR 450C air compressors, two heavy duty 40-amp relays, an 110 PSI cut-on, 145 PSI cut-off pressure switch and remote mount filter assemblies with mounting hardware.

Please Note:

• Use thread sealant for proper installation.
• Thread tape is not recommended.
• Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
• Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

• PN: 45012, 45013
• CFM: 3.28 @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 10.0 Gallon
• Combined Max. Amp Draw: 46-Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F
• Dimensions: 10.6″L x 4″W x 6.87″H (Each Unit)
• Net Weight: 21.60 lbs.

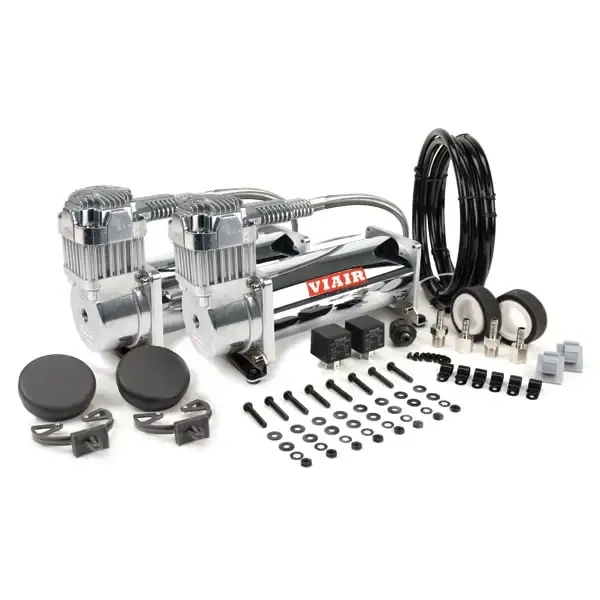

FEATURES:

• (2) 450C (Chrome or Silver) Air Compressors
  w/Thermal Overload Protectors
• (2) Air Filter Assemblies
• (2) Remote Mount Brackets
• (2) Sets of Remote Mount Fittings
• (2) Sets of Spare Air Filter Elements
• (2) Leader Hose Clips
• (6) Air Line Clips with Included Hardware
• (8) Sets of Nuts, Bolts, Washers and Lock Washers
• (2) 40-Amp Relays
• (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
• (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
• Air Line (For Remote Mount Filter Installation)

FILL RATES

12-VOLT COMPRESSOR

• 2.0 GALLON TANK FILL RATE
  • 0 to 145 PSI 1 min. 13 sec. (± 05 sec.)
  • 110 to 145 PSI 23 sec. (± 03 sec.)
• 2.5 GALLON TANK FILL RATE
  • 0 to 145 PSI 1 min. 30 sec. (± 05 sec.)
  • 110 to 145 PSI 31 sec. (± 03 sec.)
• 5.0 GALLON TANK FILL RATE
  • 0 to 145 PSI 3 min. 10 sec. (± 10 sec.)
  • 110 to 145 PSI 1 min. 05 sec. (± 05 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts
