48012 | VIAIR 480C Dual Performance Value Pack Air Compressor 12 Volt In Pewter | 200 PSI, Max Air Tank Size 10 Gallon

480C Dual Performance Value Pack Air Compressor 12 Volt In Pewter | 200 PSI, Max Air Tank Size 10 Gallon | Universal - Check Specification Before Ordering

48012
Pricing: $597.73
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Providing 200PSI and a 100% duty cycle, VIAIR’s 480C Dual Performance Value Pack is an ideal air source solution for any air suspension kit, industrial applications, air horns, or off-road pneumatic needs.

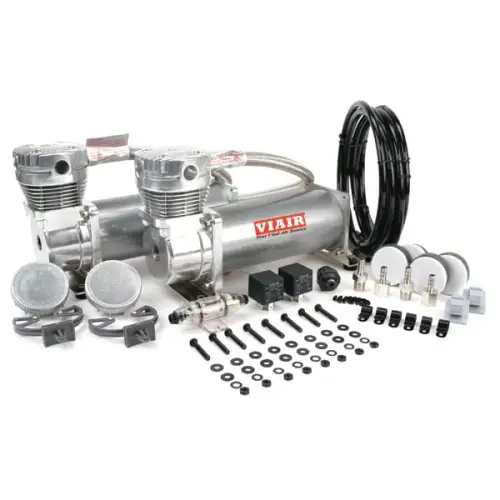

Each Dual Pack includes two VIAIR 480C air compressors, two heavy duty 40-amp relays, a 165 PSI cut-on, 200 PSI cut-off pressure switch, and remote mount filter assemblies with mounting hardware.

Please Note:

  • Use thread sealant for proper installation.
  • Thread tape is not recommended.
  • Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs.
  • Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

SPECIFICATIONS

  • PN: 48012, 48032, 48042
  • CFM: 3.53 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 10.87″L x 4.2″W x 6.75″H (Each Unit)
  • Net Weight: 22.10 lbs.

FEATURES:

  • (2) 480C (Pewter, Chrome, or Stealth Black) Air Compressors
    w/Thermal Overload Protectors
  • (2) Air Filter Assemblies
  • (2) Remote Mount Brackets
  • (2) Sets of Remote Mount Fittings
  • (2) Sets of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips with Included Hardware
  • (8) Sets of Nuts, Bolts, Washers and Lock Washers
  • (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
  • (2) 40-Amp Relays
  • (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • Air Line (For Remote Mount Filter Installation)

FILL RATES

12-VOLT COMPRESSOR

  • 2.5 GALLON TANK FILL RATE
    • 0 to 200 PSI 2 min. 22 sec. (± 10 sec.)
    • 165 to 200 PSI 38 sec. (± 05 sec.)
  • 5.0 GALLON TANK FILL RATE
    • 0 to 200 PSI 5 min. 02 sec. (± 10 sec.)
    • 165 to 200 PSI 1 min. 25 sec. (± 05 sec.)
  • 10.0 GALLON TANK FILL RATE
    • 0 to 200 PSI 10 min. 30 sec. (± 15 sec.)\
    • 165 to 200 PSI 3 min. 10 sec. (± 10 sec.)

Performance

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 3.53 25 0 100.0 25
10 3.10 28 1.0 86.5 29
20 3.00 31 2.0 81.4 33
30 2.86 33 3.0 76.8 35
40 2.75 35 4.0 72.7 37
50 2.64 36 5.0 67.6 39
60 2.55 37 6.0 61.2 41
70 2.43 39 7.0 55.3 42
80 2.26 40 8.0 50.1 44
90 2.12 41 9.0 45.0 44
100 1.97 42 10.0 40.6 43
110 1.84 43 11.0 36.8 41
120 1.72 44 12.0 32.4 40
130 1.59 44 13.0 28.0 37
140 1.49 43 14.0 24.8 36
150 1.38 42
160 1.29 41
170 1.18 40
180 1.09 39
190 0.97 37
200 0.90 36
